Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transmission, if equipped. Refer to TRANSMISSION REPLACEMENT .
  2. Remove the clutch, if equipped. Refer to CLUTCH ASSEMBLY REPLACEMENT .
  3. Remove the flywheel bolts.
  4. Remove the flywheel (1 or 2).

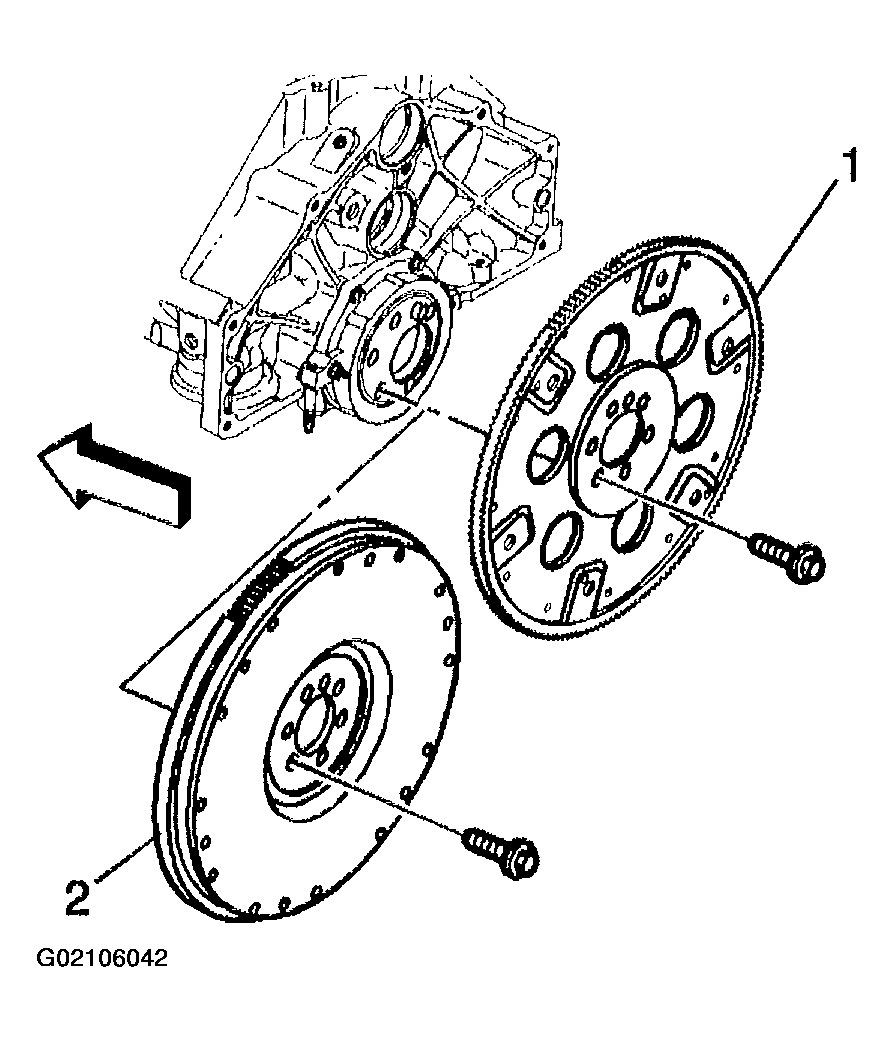

    Fig 1: Flywheel & Bolts
    G02106042Courtesy of GENERAL MOTORS CORP.
  5. If equipped with a manual transmission, note the position of any flywheel weights for assembly.
  6. Clean and inspect the flywheel, if necessary. Refer to Engine Flywheel Cleaning and Inspection .

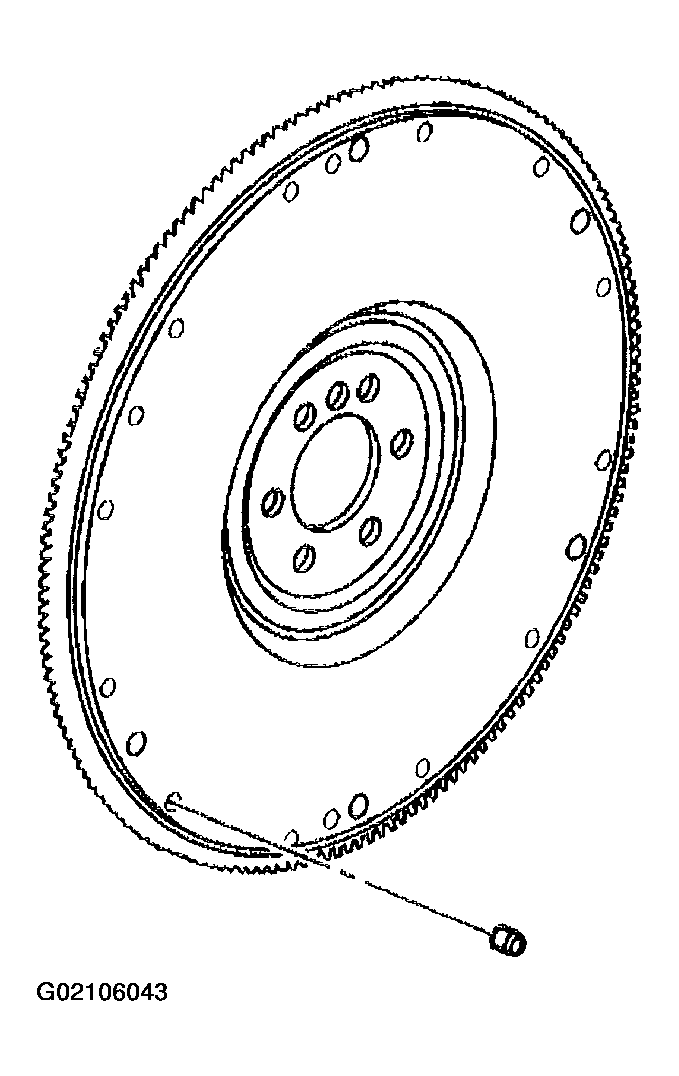

    Fig 2: Flywheel Weights
    G02106043Courtesy of GENERAL MOTORS CORP.
