Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the belt tensioner bolt.
  3. Remove the belt tensioner.

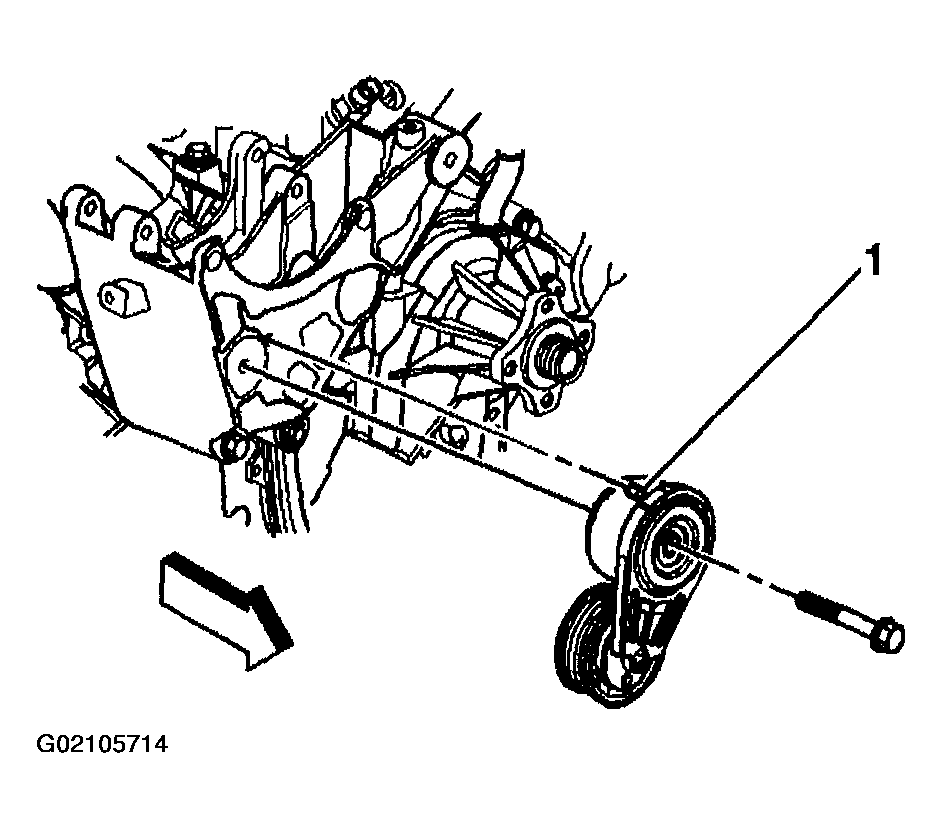

    Ensure that there is a locating pin (1) on the tensioner.

    Fig 1: Locating Pin & Tensioner
    G02105714Courtesy of GENERAL MOTORS CORP.
