Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the exterior of the NEW seal with clean engine oil.
  2. Using J 35468  and a hammer, install the crankshaft front oil seal.
  3. Ensure the crankshaft front oil seal is flush and square to the engine front cover.
  4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .

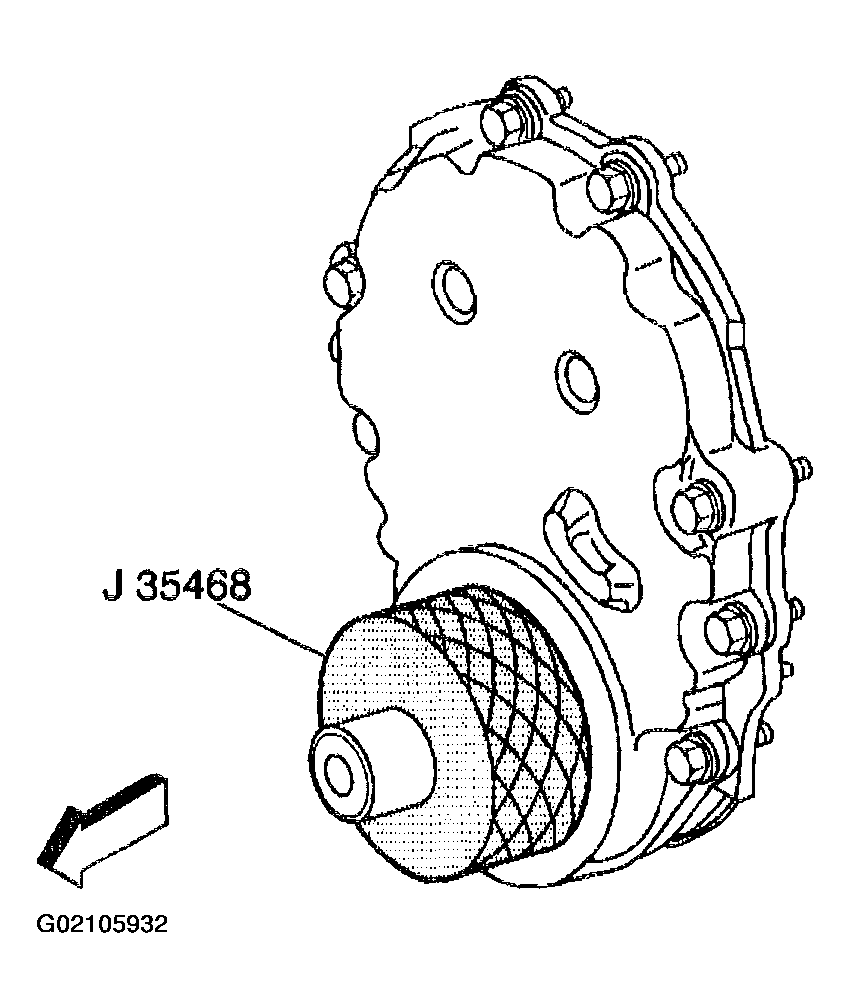

    Fig 1: Install Crankshaft Front Oil Seal Using J 35468
    G02105932Courtesy of GENERAL MOTORS CORP.
