Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator. Refer to RADIATOR REPLACEMENT .
  2. Remove the air conditioning (A/C) condenser. Refer to CONDENSER REPLACEMENT .
  3. Remove the lifters. Refer to Valve Lifter Replacement .
  4. Remove the timing chain and the camshaft sprocket. Refer to Timing Chain and Sprockets Replacement .
  5. Remove the balance shaft drive gear.

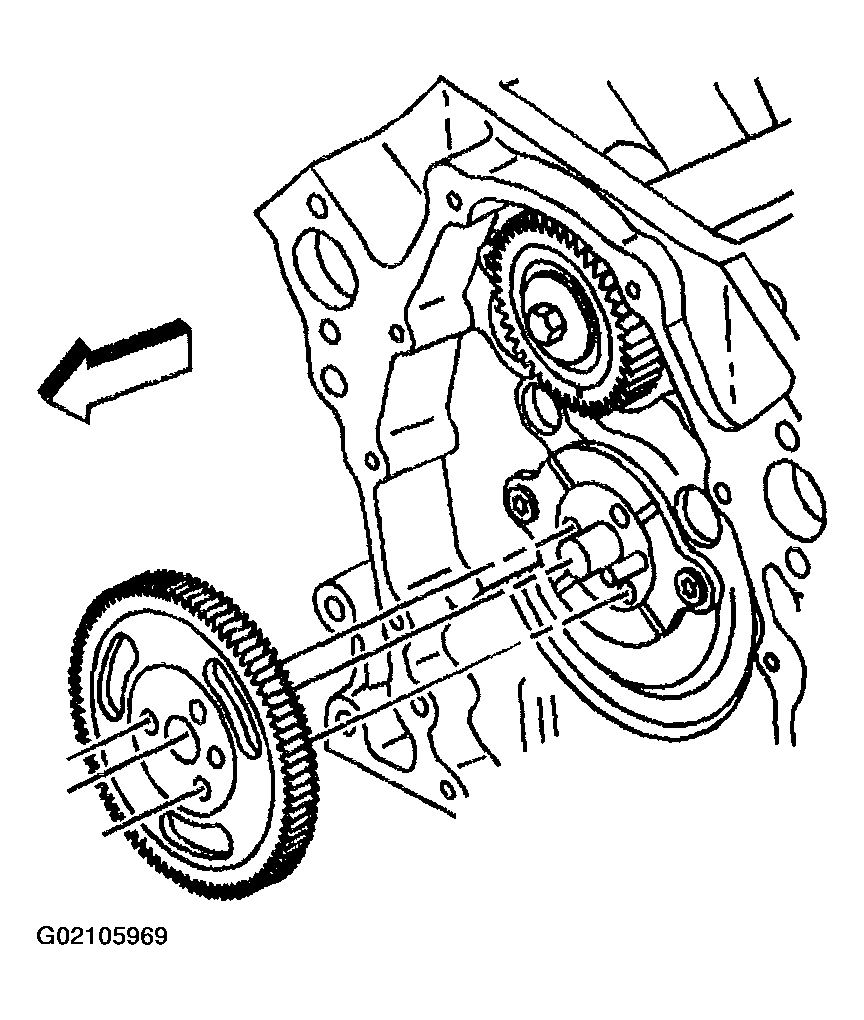

    Fig 1: Balance Shaft Drive Gear
    G02105969Courtesy of GENERAL MOTORS CORP.
  6. Remove the camshaft retainer bolts and retainer.

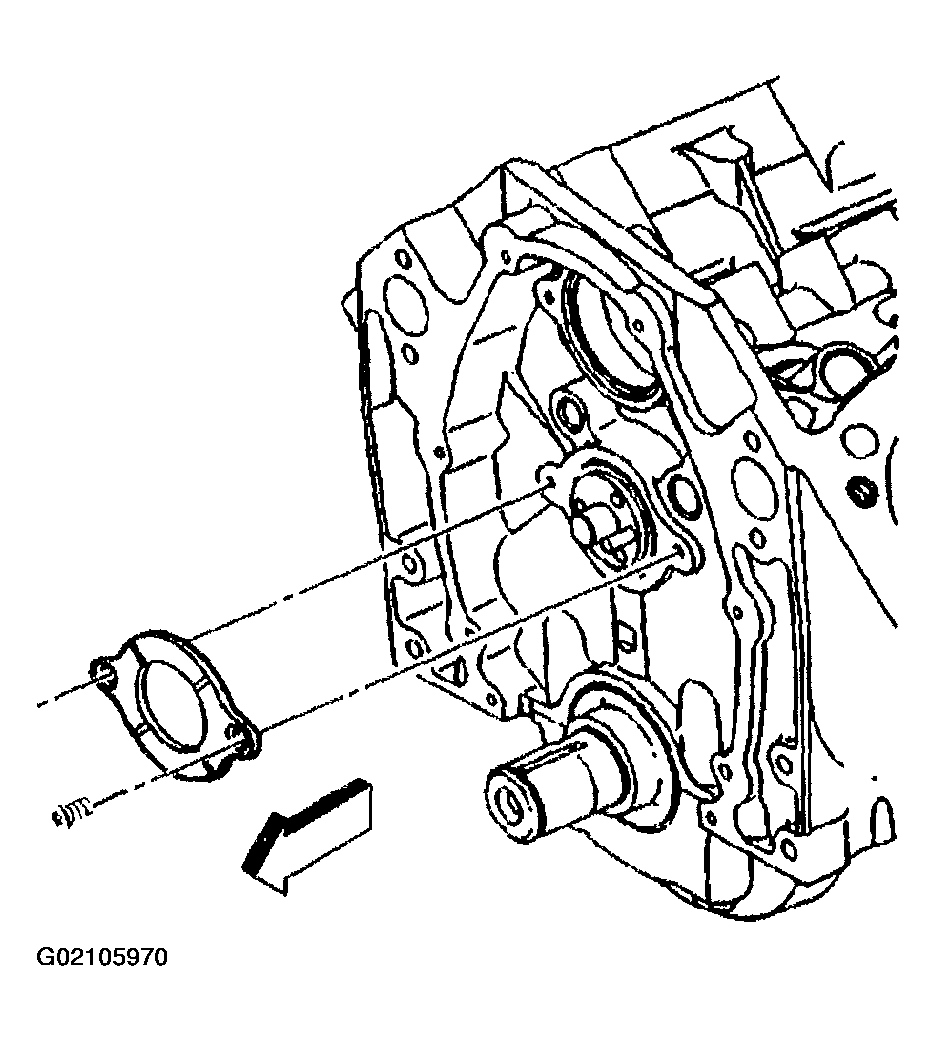

    Fig 2: Camshaft Retainer & Bolts
    G02105970Courtesy of GENERAL MOTORS CORP.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  7. Remove the engine camshaft.
    1. 7.1. Install the three 5/16-18 x 4.0 inch bolts into the engine camshaft front bolt holes.
    2. 7.2. Using the bolts as a handle, carefully rotate and pull the engine camshaft out of the camshaft bearings.
    3. 7.3. Remove the bolts from the front of the engine camshaft.
    4. 7.4. Clean and inspect the camshaft and/or bearings, if necessary. Refer to Camshaft and Bearings Cleaning and Inspection .

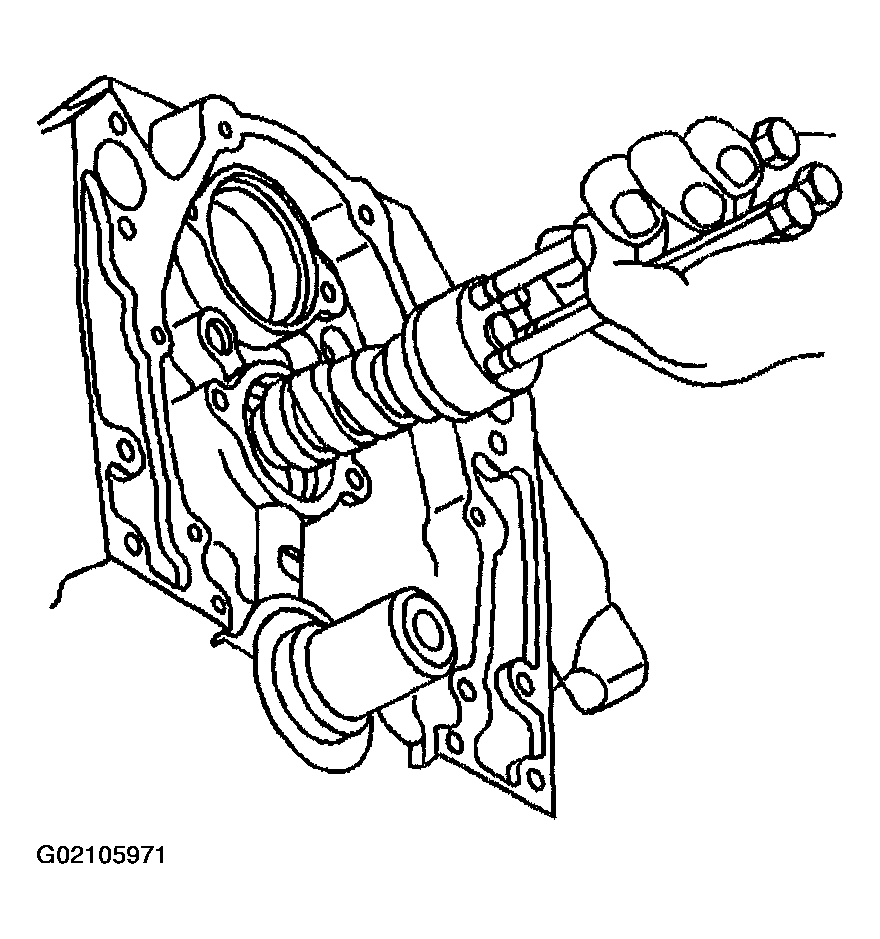

    Fig 3: Removing Engine Camshaft
    G02105971Courtesy of GENERAL MOTORS CORP.
