Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

J 41240  Fan Clutch Remover and Installer

  1. Remove the bolts and the fan and water pump pulley using the J 41240  .

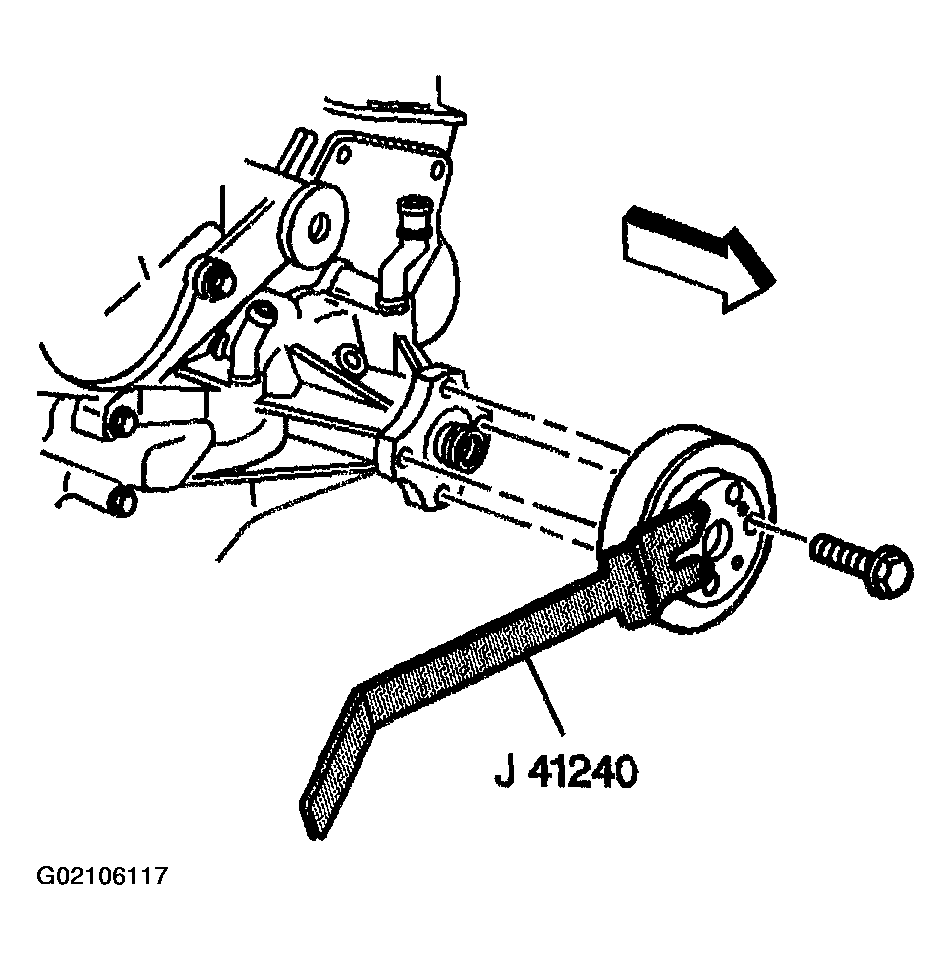

    Fig 1: Remove Bolts, Fan & Water Pump Pulley Using J 41240
    G02106117Courtesy of GENERAL MOTORS CORP.
  2. Remove the clamps and the water pump inlet hose.

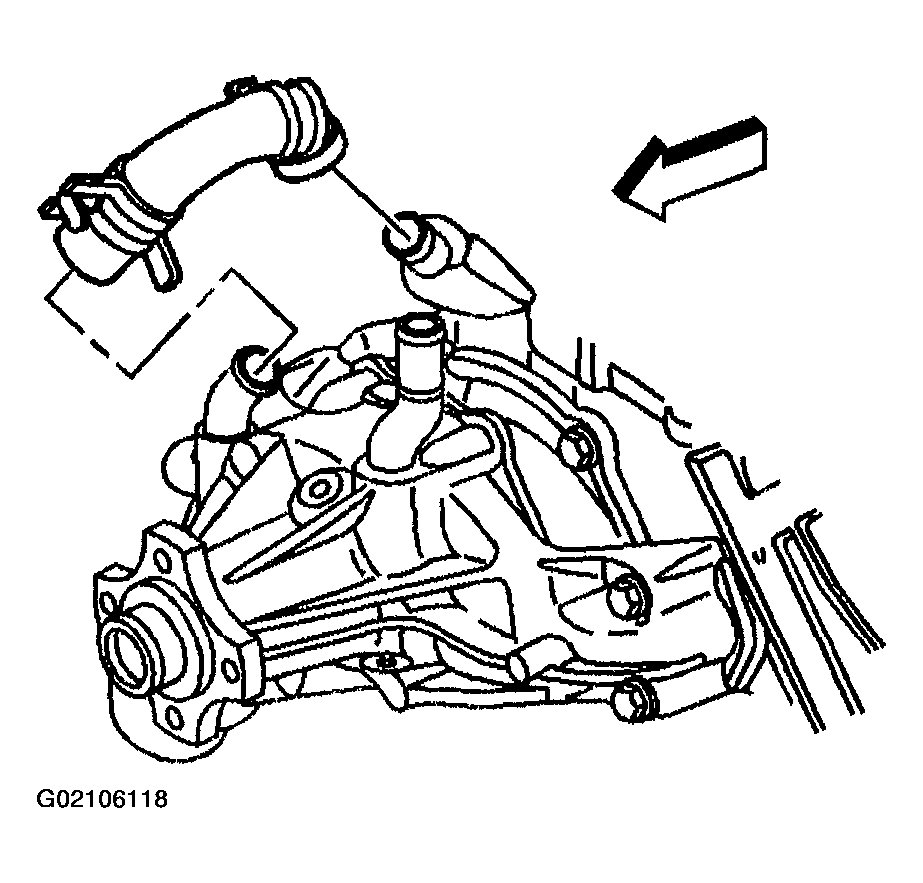

    Fig 2: Removing Clamps & Water Pump Inlet Hose
    G02106118Courtesy of GENERAL MOTORS CORP.
  3. Remove the water pump bolts.
  4. Remove the water pump.
  5. Remove the water pump gaskets.
  6. Discard the water pump gaskets.

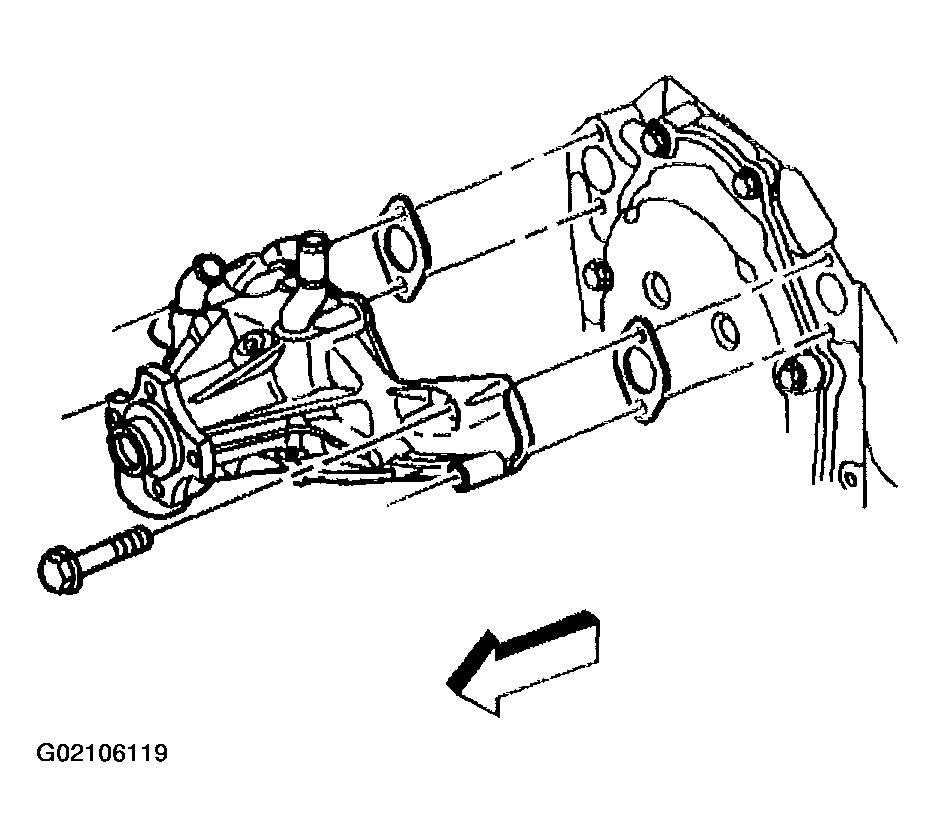

    Fig 3: Removing Water Pump, Bolts, & Gaskets
    G02106119Courtesy of GENERAL MOTORS CORP.
