Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Mark, sort, and organize all the components for assembly.
  1. Remove the valve rocker arms.

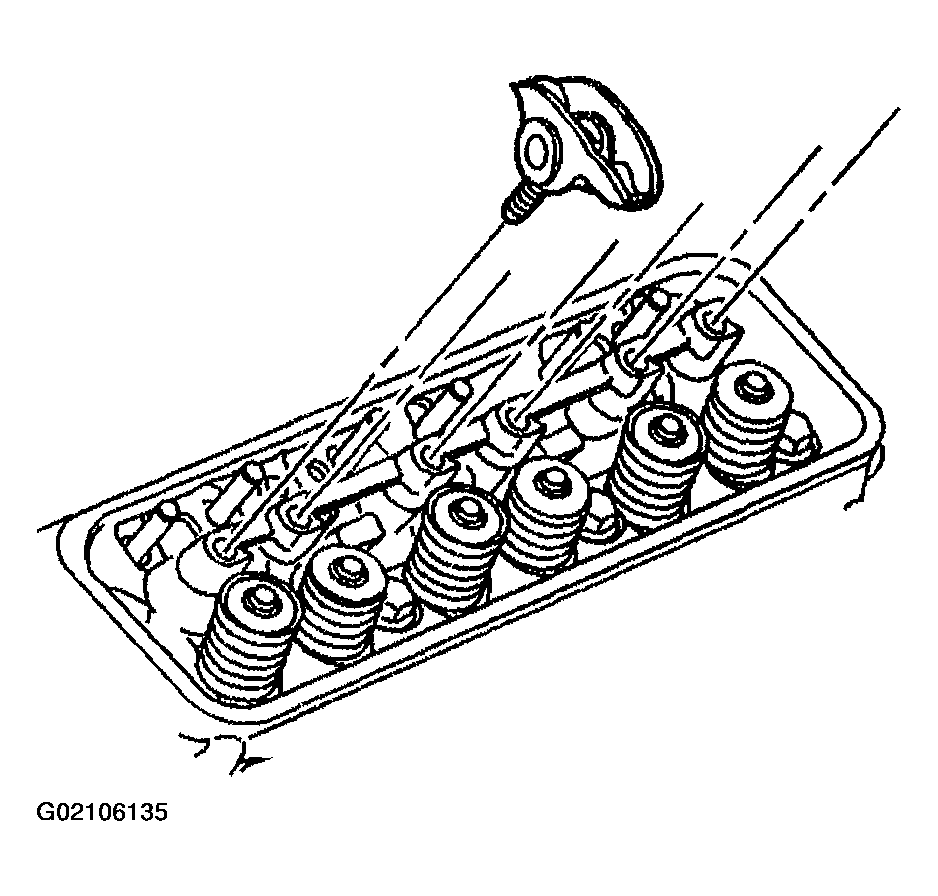

    Fig 1: Removing Valve Rocker Arms
    G02106135Courtesy of GENERAL MOTORS CORP.
  2. Remove the valve rocker arm supports.

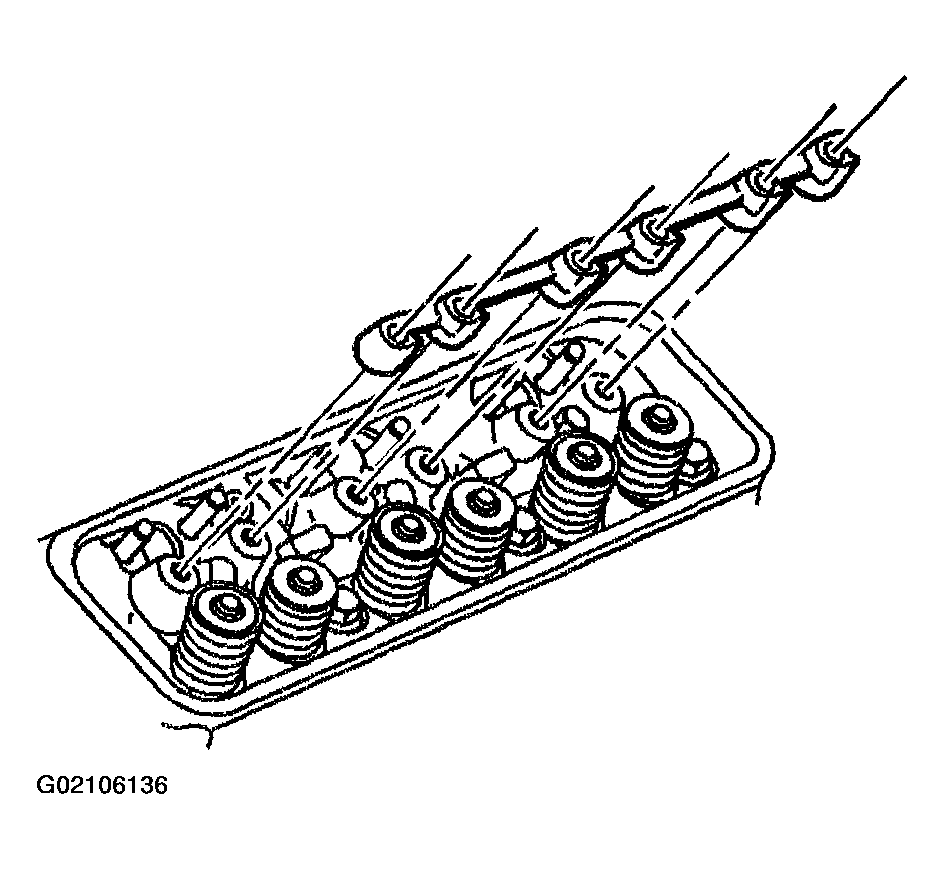

    Fig 2: Removing Valve Rocker Arm Supports
    G02106136Courtesy of GENERAL MOTORS CORP.
  3. Remove the valve pushrods.

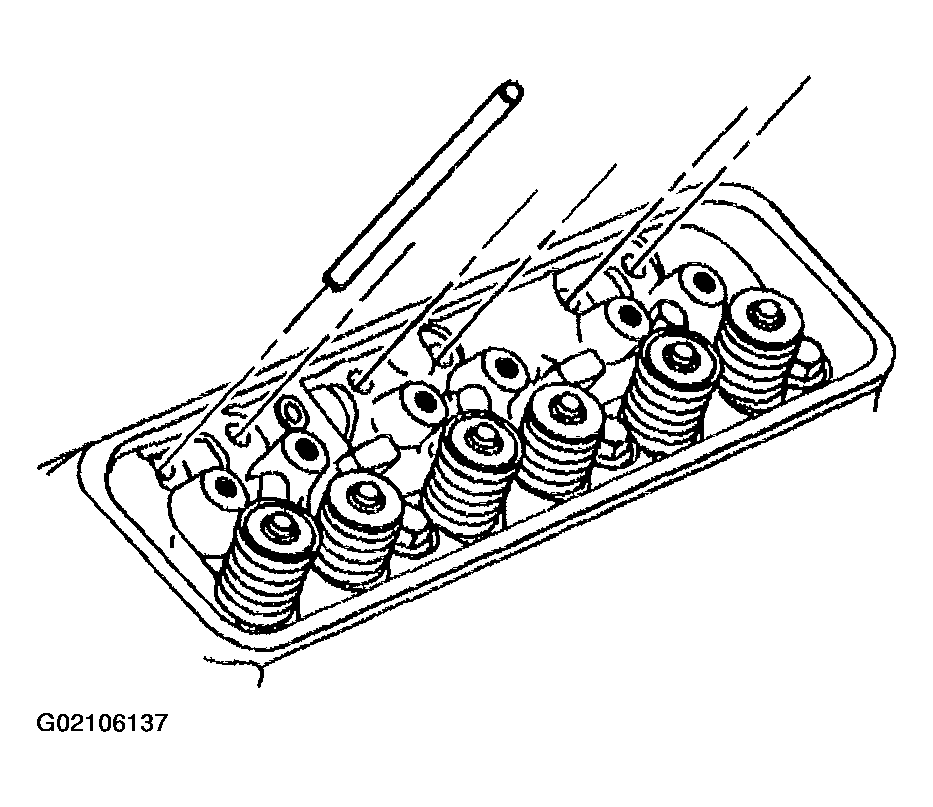

    Fig 3: Removing Valve Pushrods
    G02106137Courtesy of GENERAL MOTORS CORP.
