Valve Rocker Arm Cover Installation - Left

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not reuse the valve cover gasket or the valve rocker arm cover bolt grommets.
  1. Install the NEW valve rocker arm cover gasket into the groove of the valve rocker arm cover.
  2. Install the NEW valve rocker arm cover bolt grommets into the valve rocker arm cover.

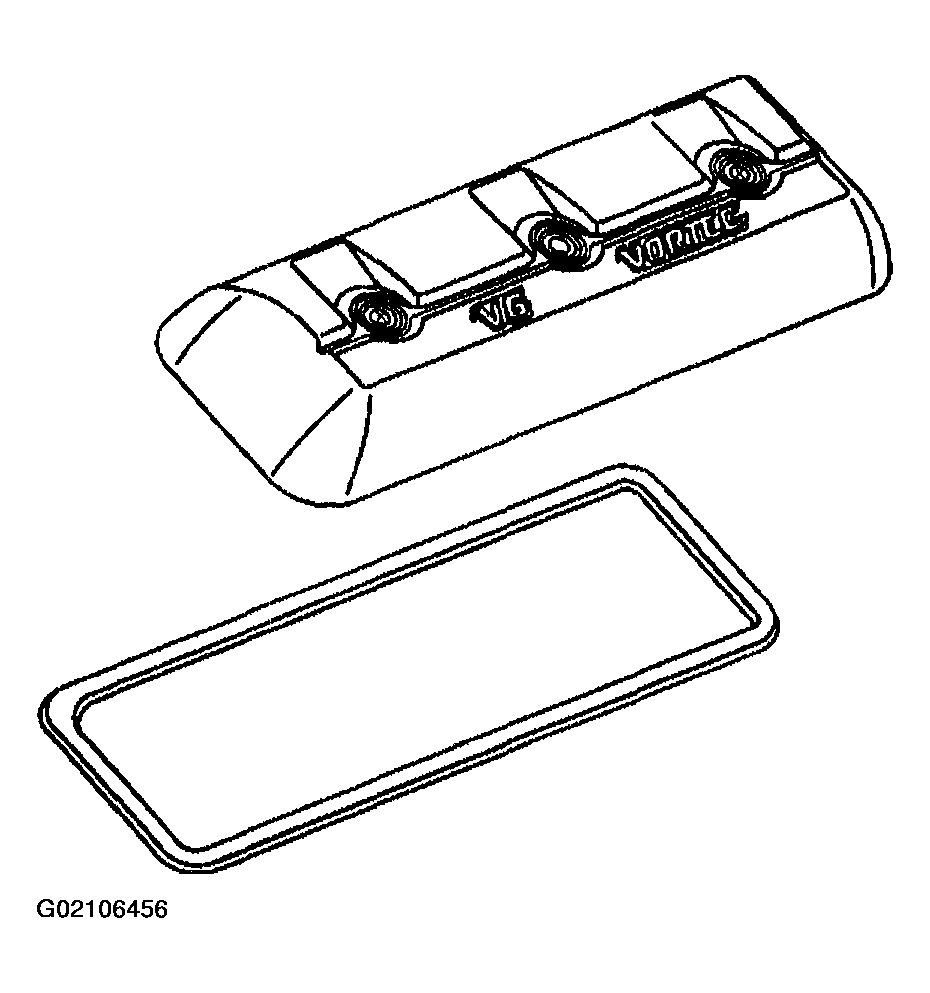

    Fig 1: Install Valve Rocker Arm Cover Gasket
    G02106456Courtesy of GENERAL MOTORS CORP.
  3. Install the valve rocker arm cover onto the cylinder head.

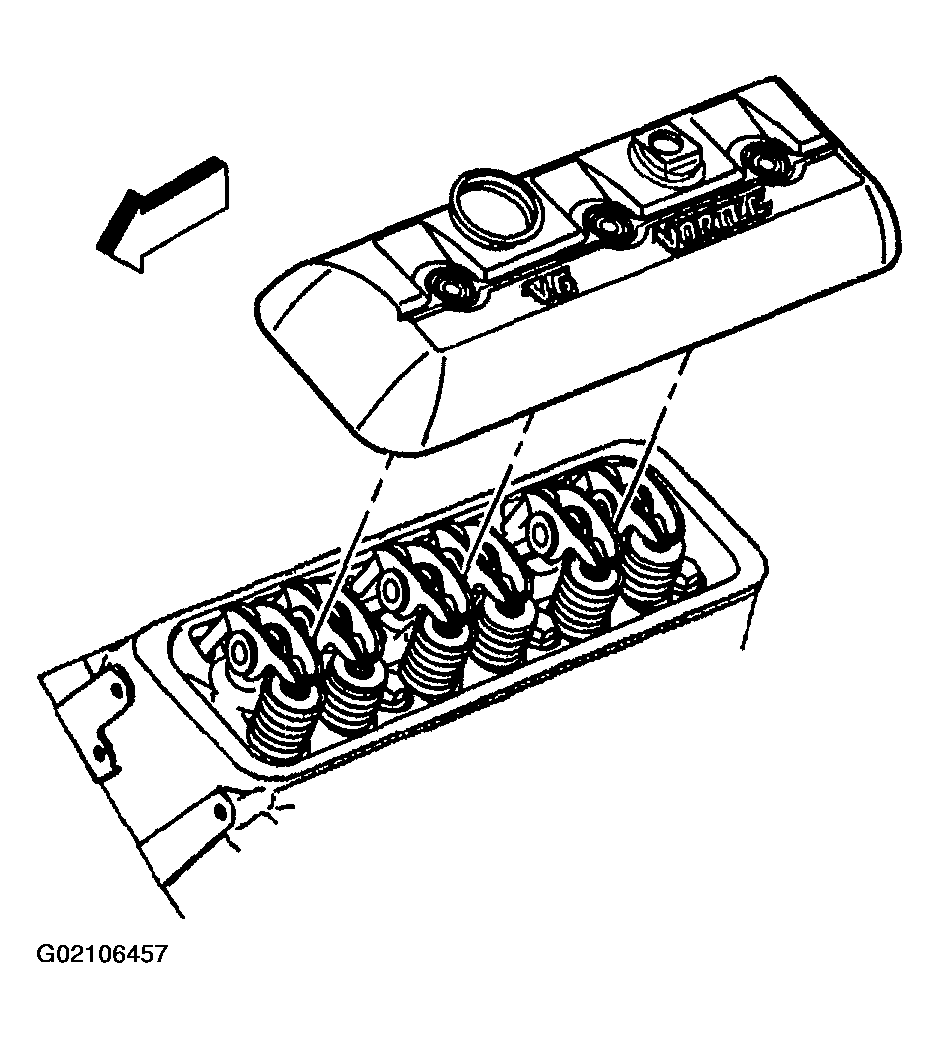

    Fig 2: Installing Valve Rocker Arm Cover
    G02106457Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).

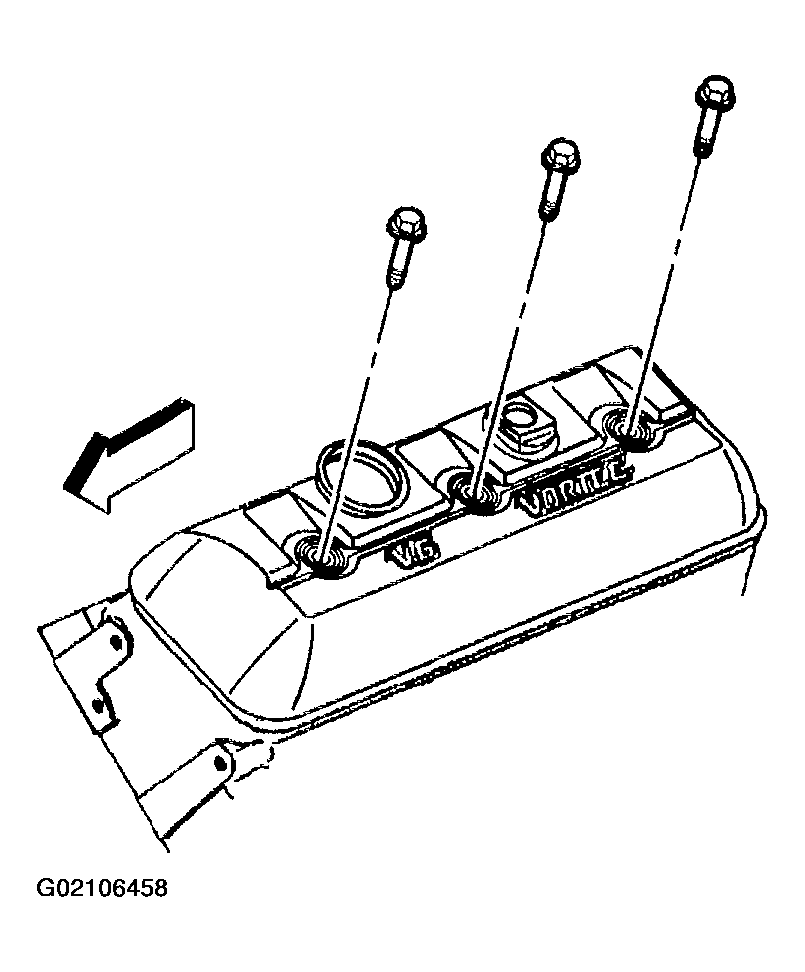

    Fig 3: Install Valve Rocker Arm Cover Bolts
    G02106458Courtesy of GENERAL MOTORS CORP.
