Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

J 3049-A Valve Lifter Remover

IMPORTANT: Place the components in a rack so that the components can be reinstalled to their original location.

Remove the bolts and valve lifter pushrod guide.

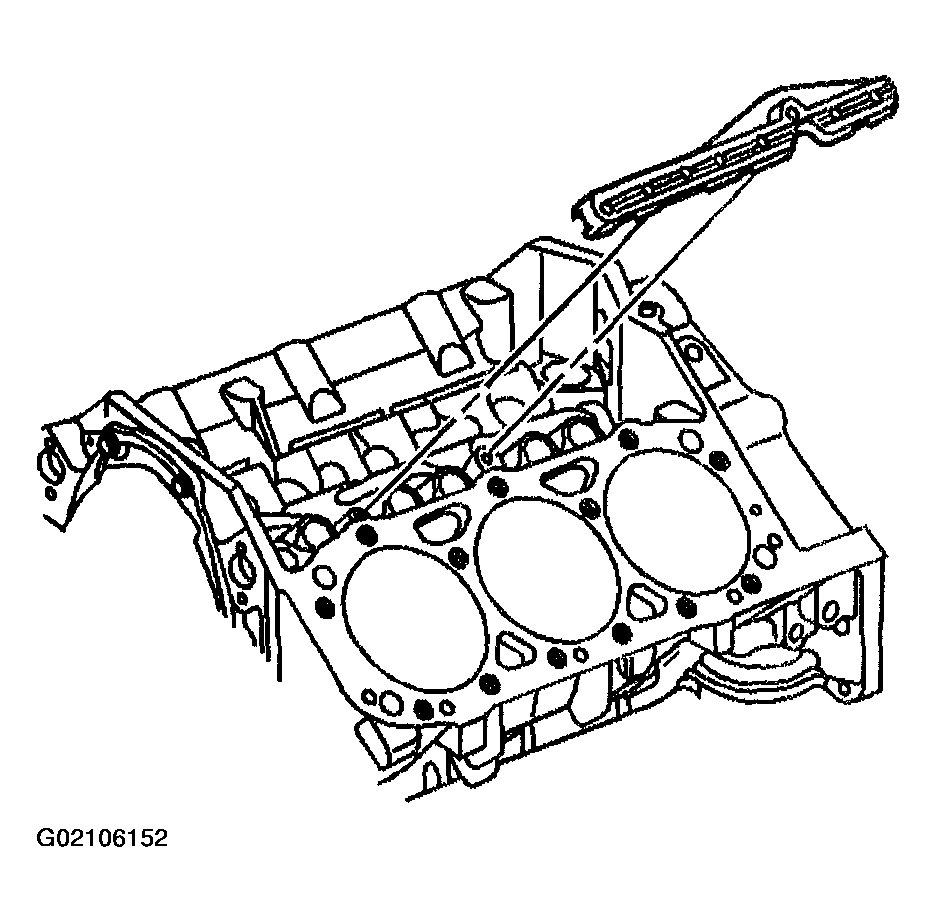

Fig 1: Removing Valve Lifter Pushrod Guide
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Place the valve lifters in the rack in the upright position in order to maintain the oil inside the valve lifters.
Remove the valve lifters.

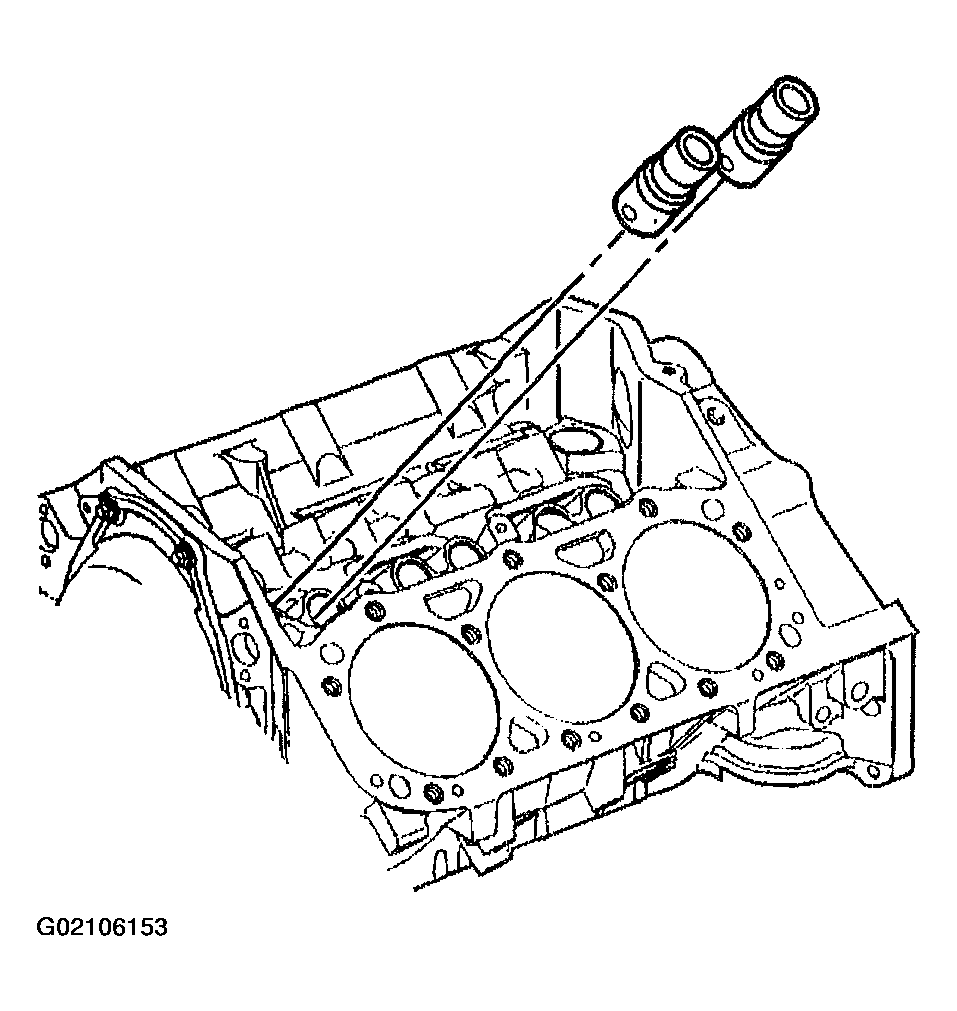

Fig 2: Remove Valve Lifters
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Some valve lifters may be stuck in the valve lifter bores because of gum or varnish deposits and may require the use of J 3049-A for removal.
Use the J 3049-A in order to remove the stuck valve lifters.

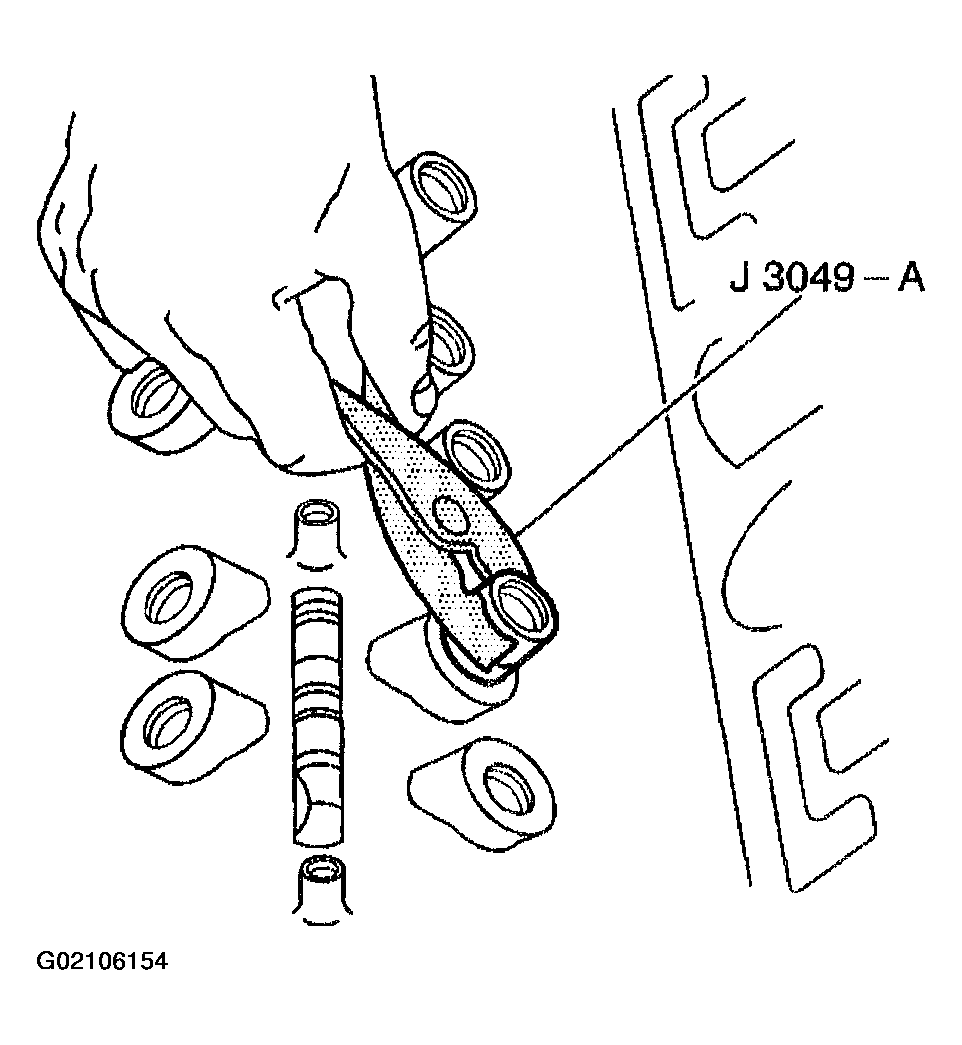

Fig 3: Remove Stuck Valve Lifters Using J 3049-A
Courtesy of GENERAL MOTORS CORP.
