Valve Lifter Installation

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Apply lubricant GM P/N 12345501 (Canadian P/N 992704) or equivalent, to the valve lifter rollers.
IMPORTANT: If reusing the valve lifters, install the valve lifters in the original positions.
Install the valve lifters.

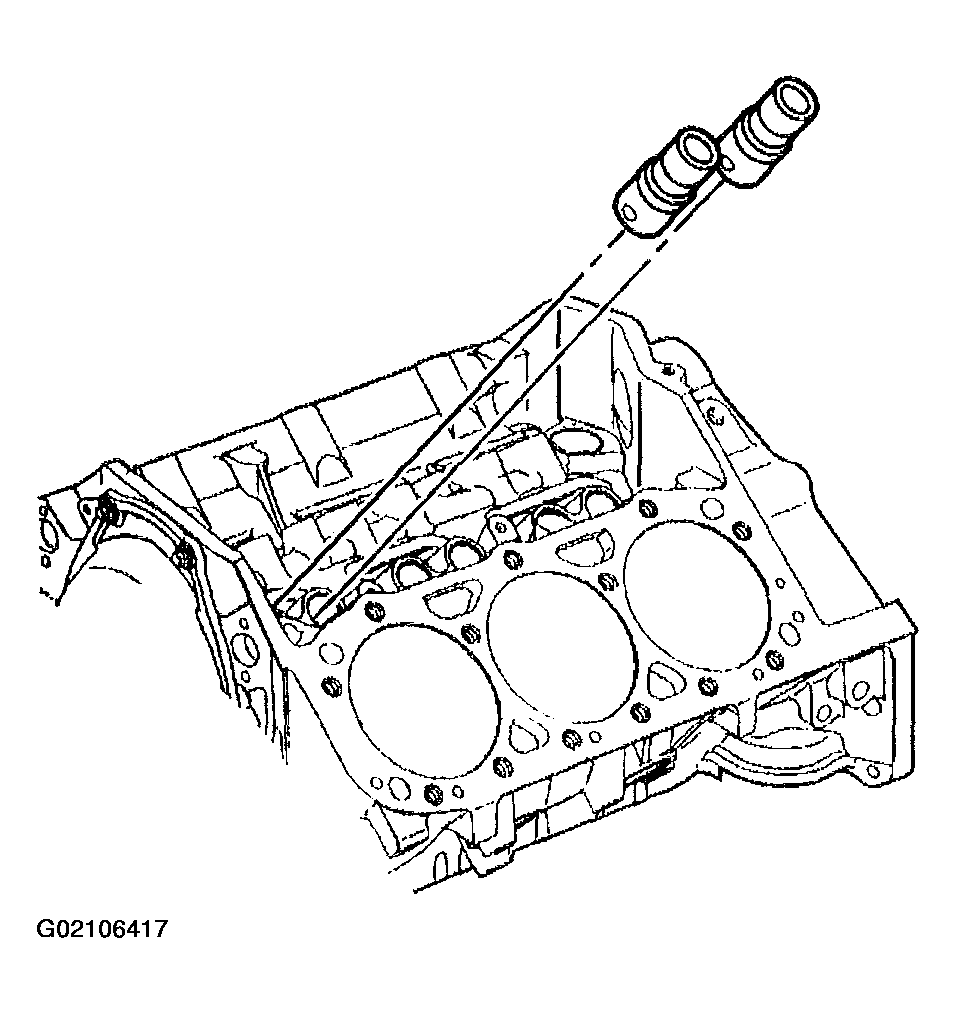

Fig 1: Installing Valve Lifters
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Install the valve lifter pushrod guides.
Tighten

Tighten the valve lifter pushrod guide bolts to 16 N.m (12 lb ft).

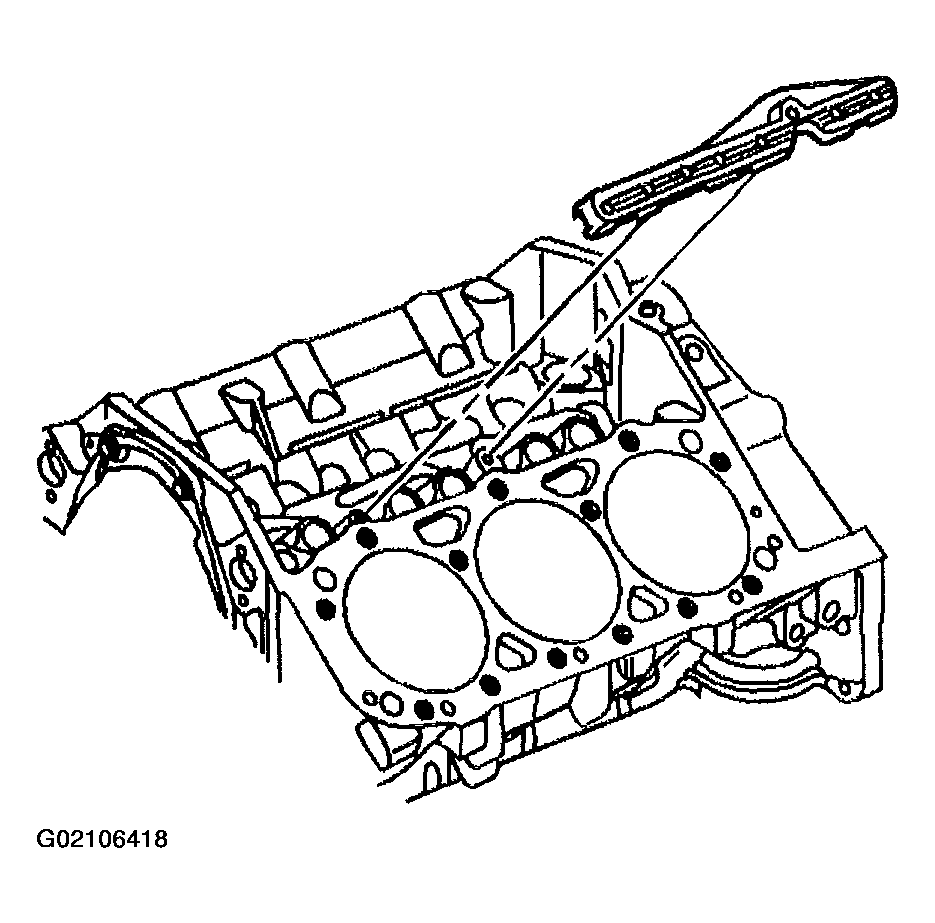

Fig 2: Installing Valve Lifter Pushrod Guides
Courtesy of GENERAL MOTORS CORP.
