Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

J 24086-C Piston Pin Remover/Installer

CAUTION: Refer to SAFETY GLASSES CAUTION .

Remove the piston rings from the pistons.

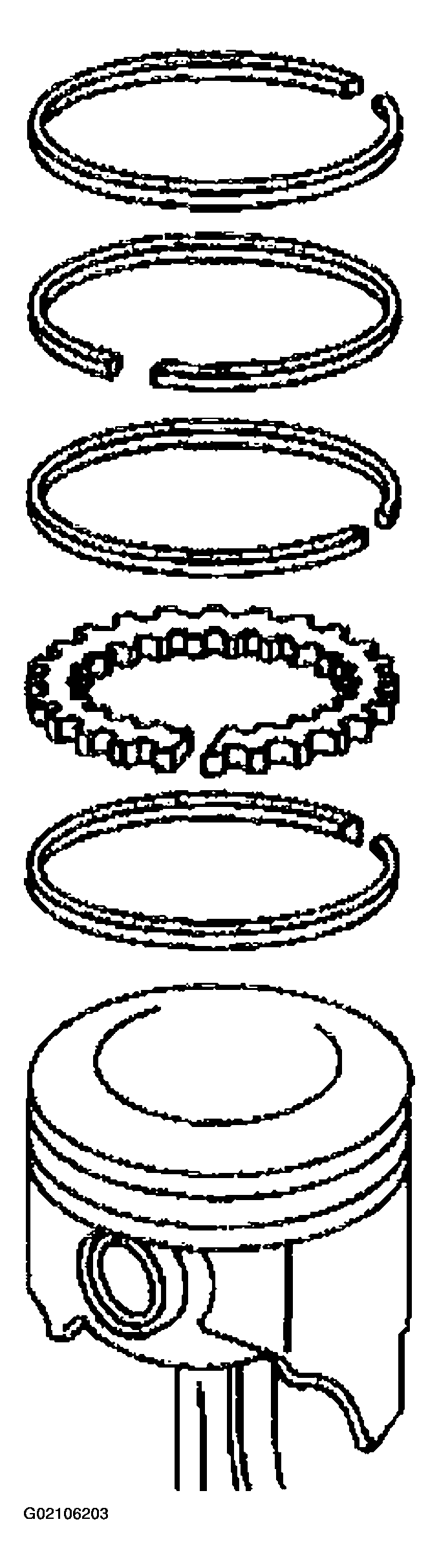

Fig 1: Removing Piston Rings
Courtesy of GENERAL MOTORS CORP.
Press the piston pin from the connecting rod using the J 24086-C .
The piston pin has an interference fit into the connecting rod, and is full floating in the piston.

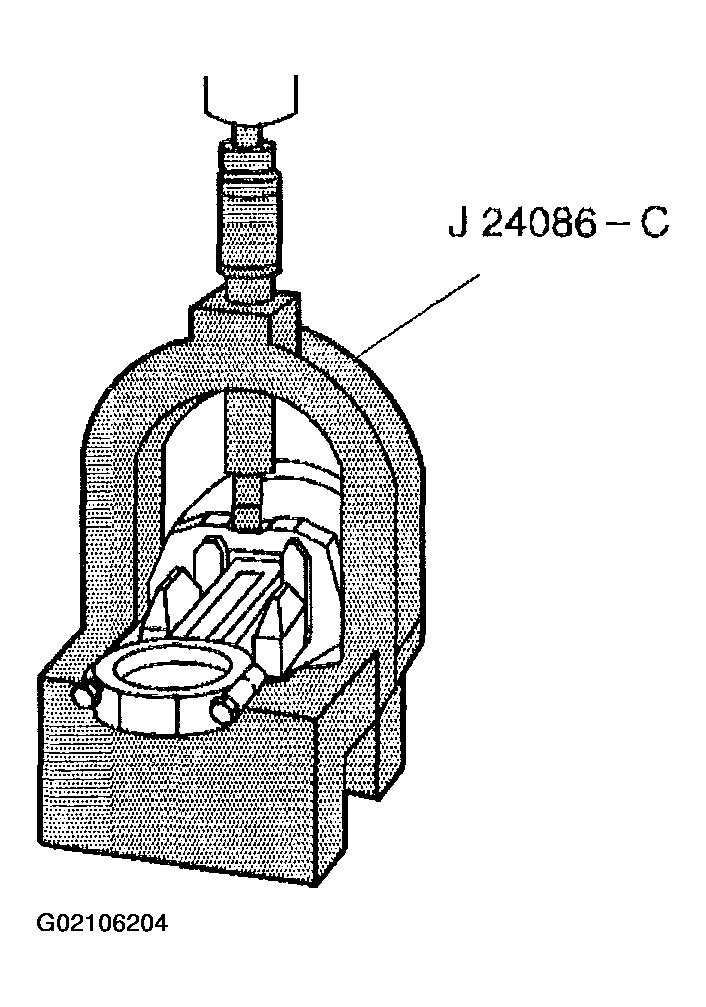

Fig 2: Pressing Piston Pin From Connecting Rod Using J 24086-C
Courtesy of GENERAL MOTORS CORP.
Mark, separate, and organize the parts for assembly.

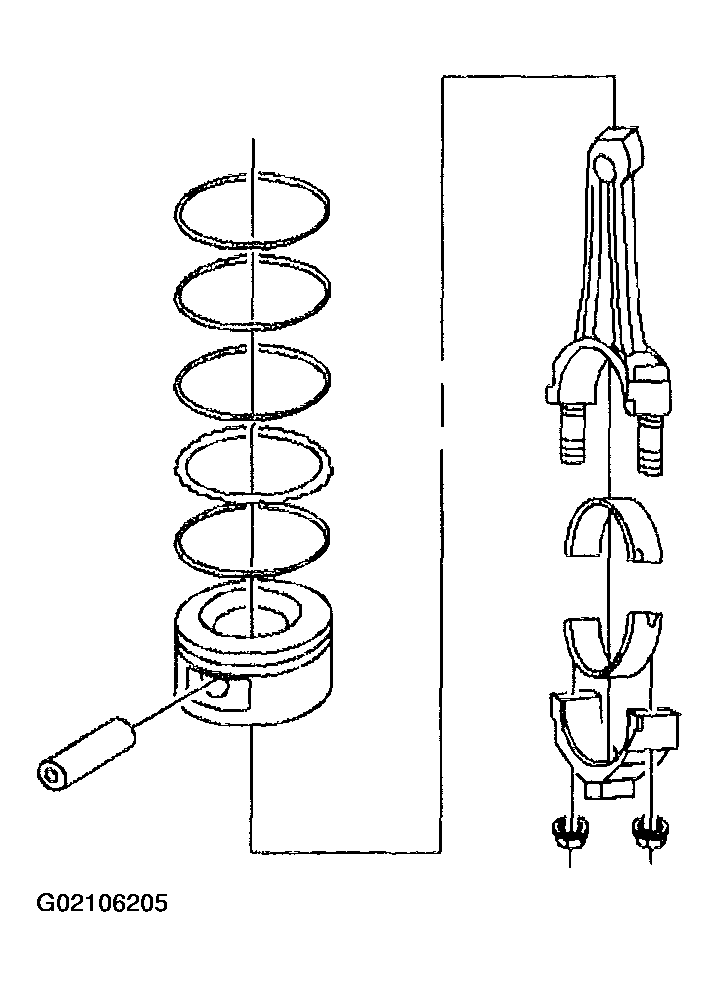

Fig 3: Piston & Connecting Rod Components
Courtesy of GENERAL MOTORS CORP.
