Oil Pan Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove and discard the engine oil level sensor, if applicable.

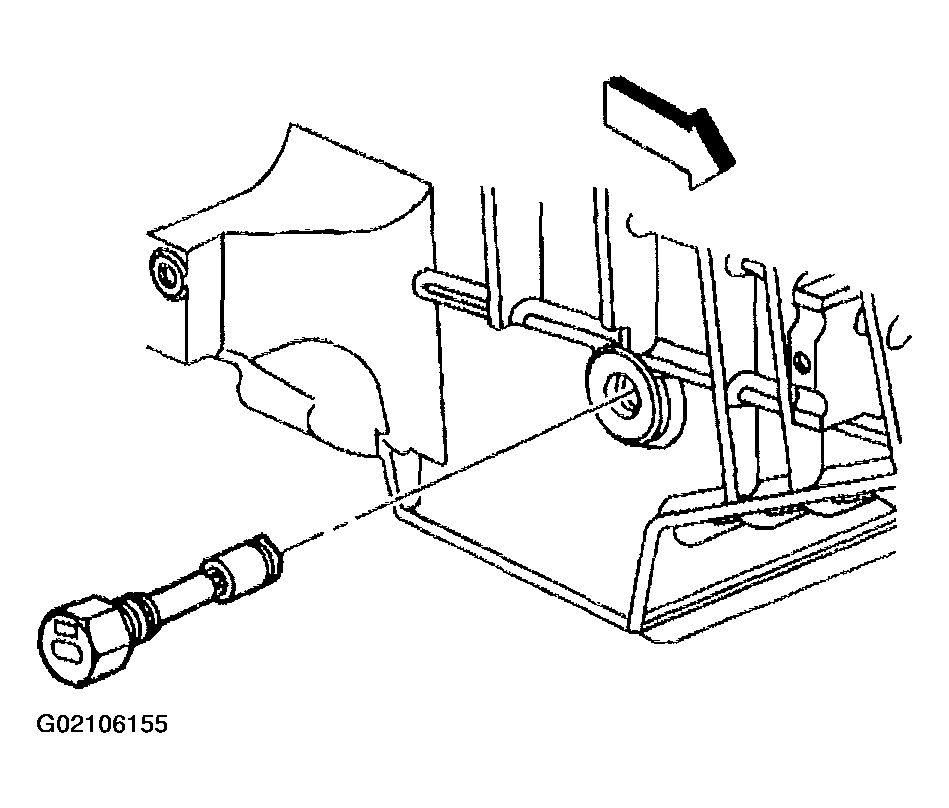

    Fig 1: Removing Engine Oil Level Sensor
    G02106155Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan bolts and nuts.

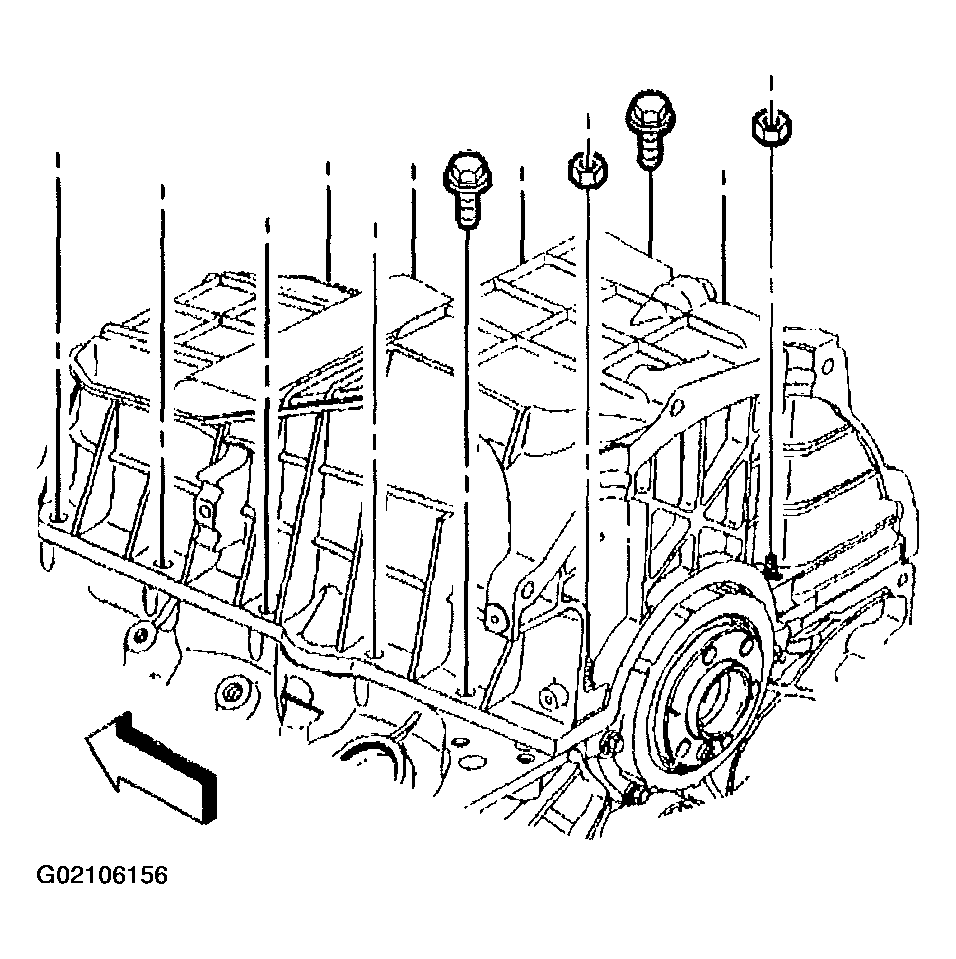

    Fig 2: Removing Oil Pan Bolts & Nuts
    G02106156Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan.

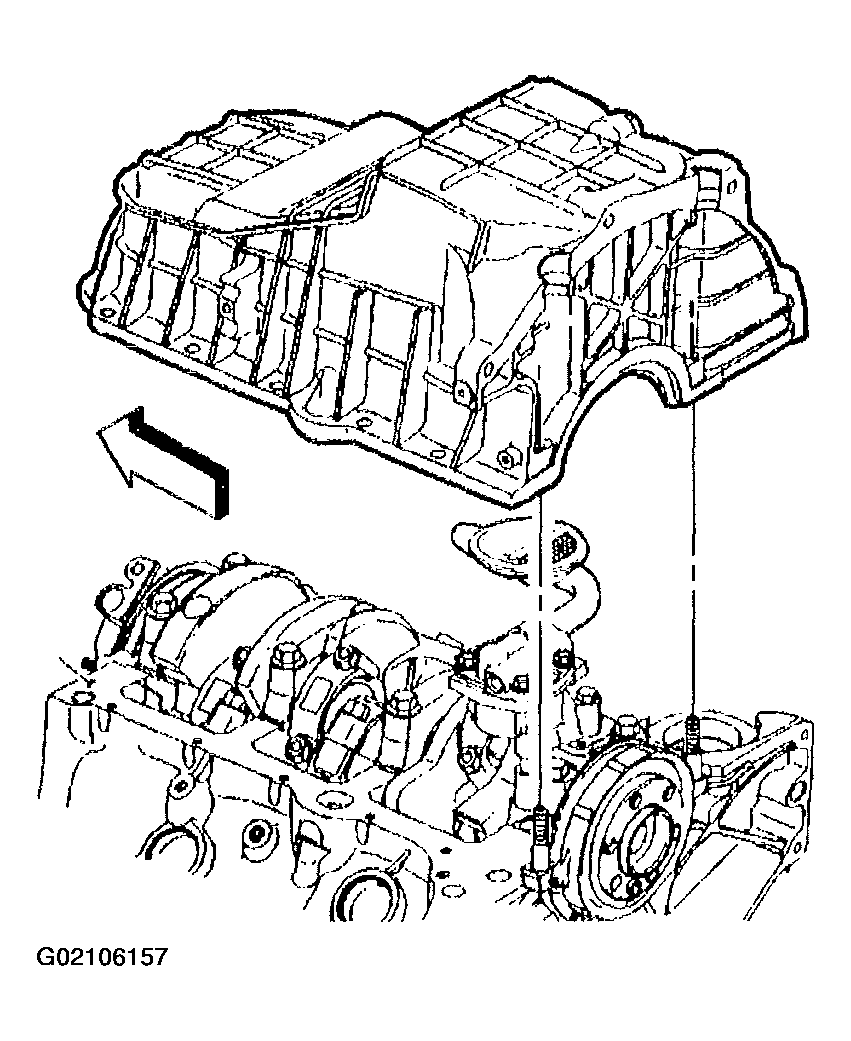

    Fig 3: Removing Oil Pan
    G02106157Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan gasket.
  5. Discard the oil pan gasket.

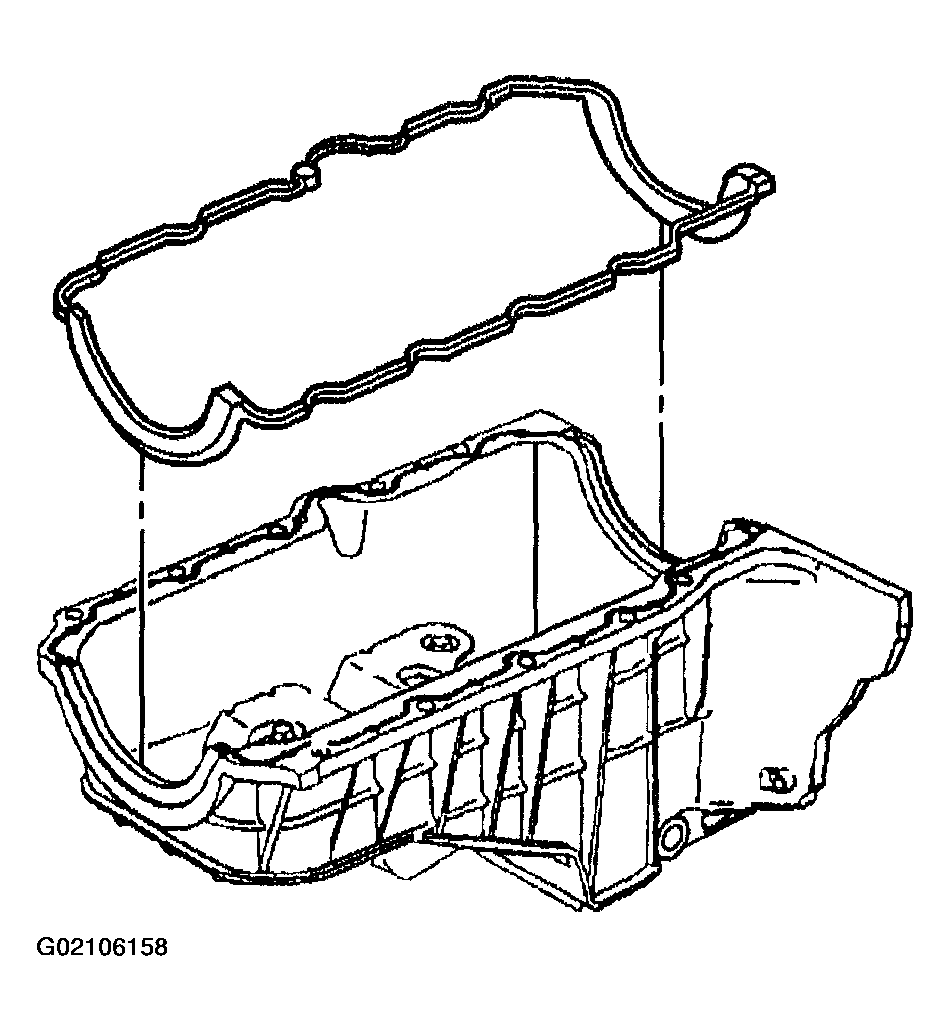

    Fig 4: Removing Oil Pan Gasket
    G02106158Courtesy of GENERAL MOTORS CORP.
