Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the oil level indicator tube, if required.

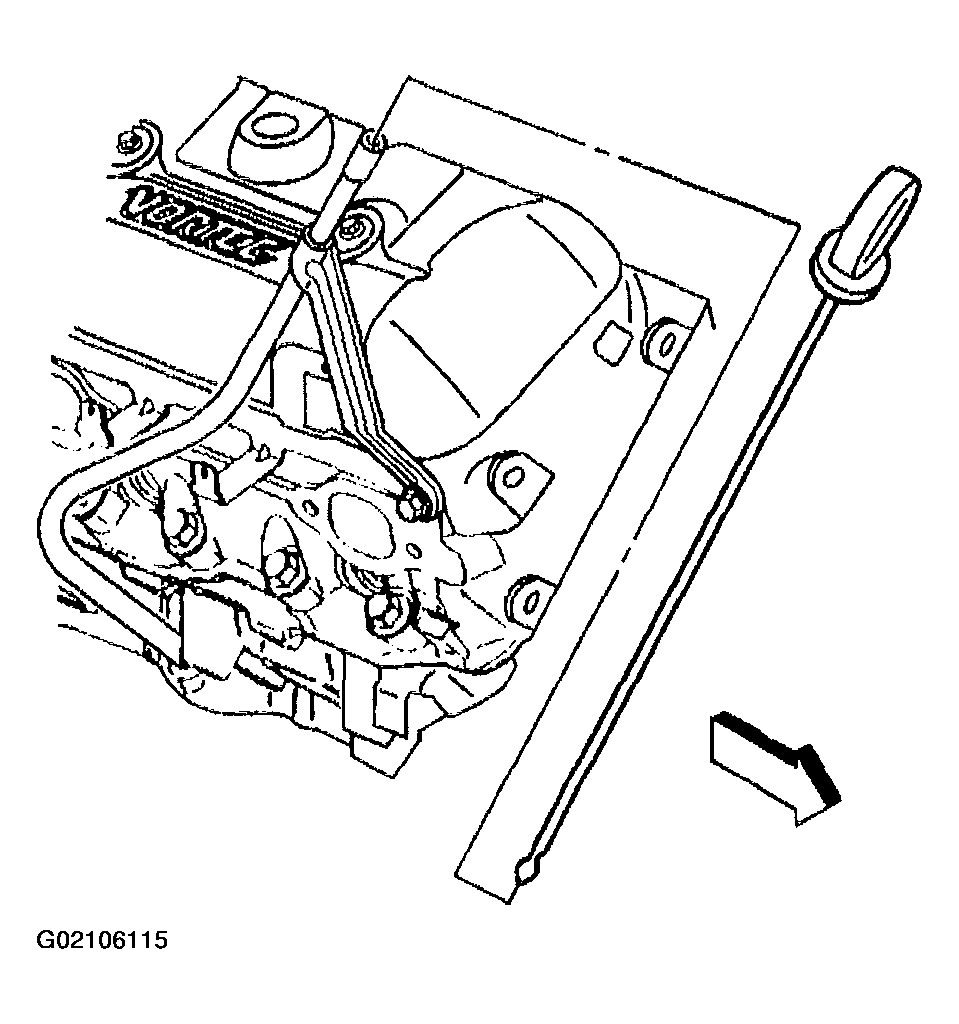

    Fig 1: Removing Oil Level Indicator
    G02106115Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.

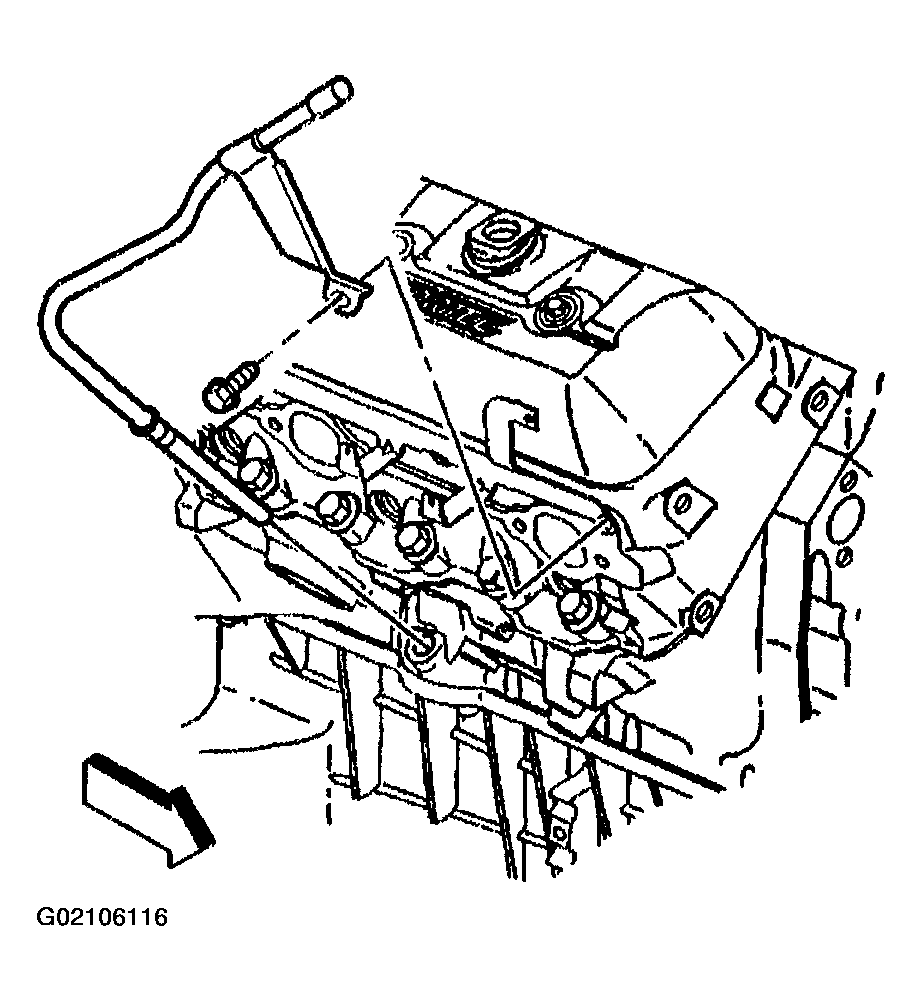

    Fig 2: Removing Oil Level Indicator Tube & Bolt
    G02106116Courtesy of GENERAL MOTORS CORP.
