Oil Level Indicator and Tube Installation

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent, around the oil level indicator tube 13 mm (0.5 in) below the tube bead.
  2. Install the oil level indicator tube into the engine block. Rotate the oil level indicator tube into position.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 12 N.m (106 lb in).

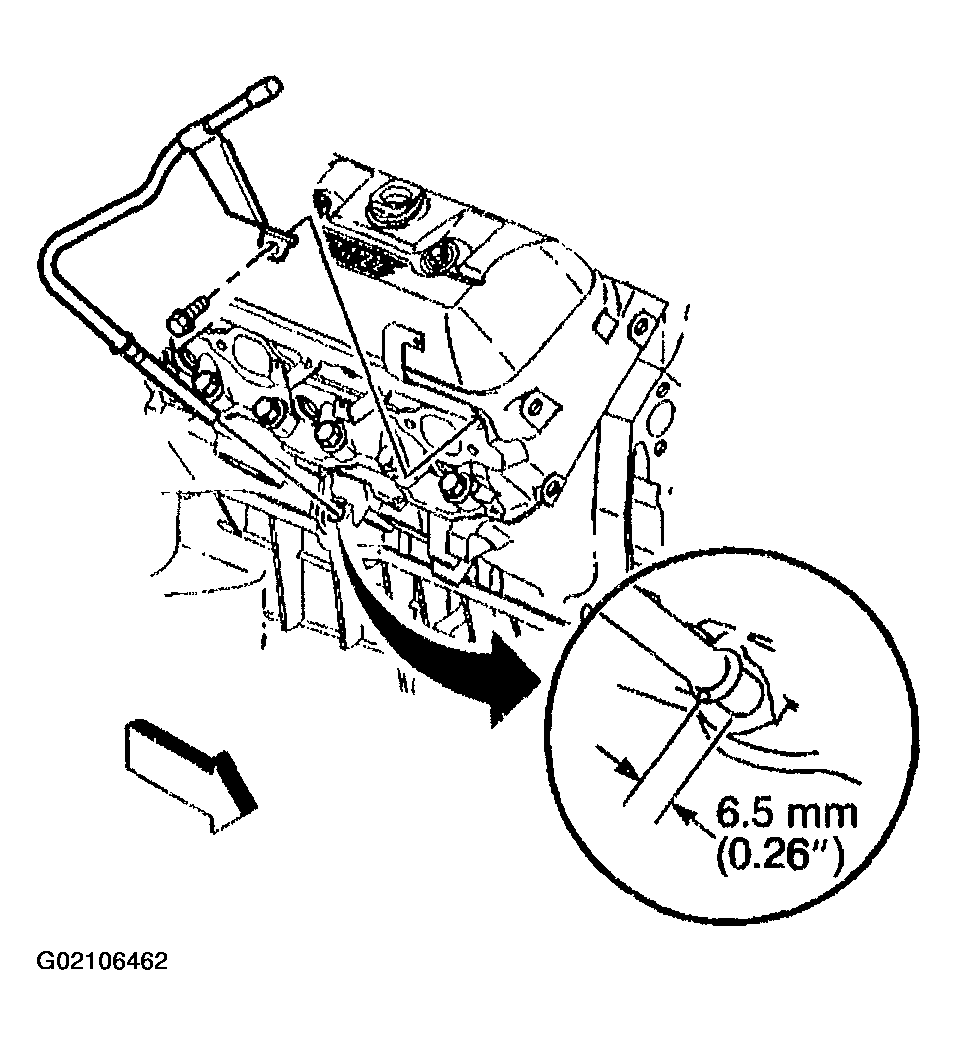

    Fig 1: Installing Oil Level Indicator Tube & Bolt
    G02106462Courtesy of GENERAL MOTORS CORP.
  4. Install the oil level indicator into the oil level indicator tube, if required.

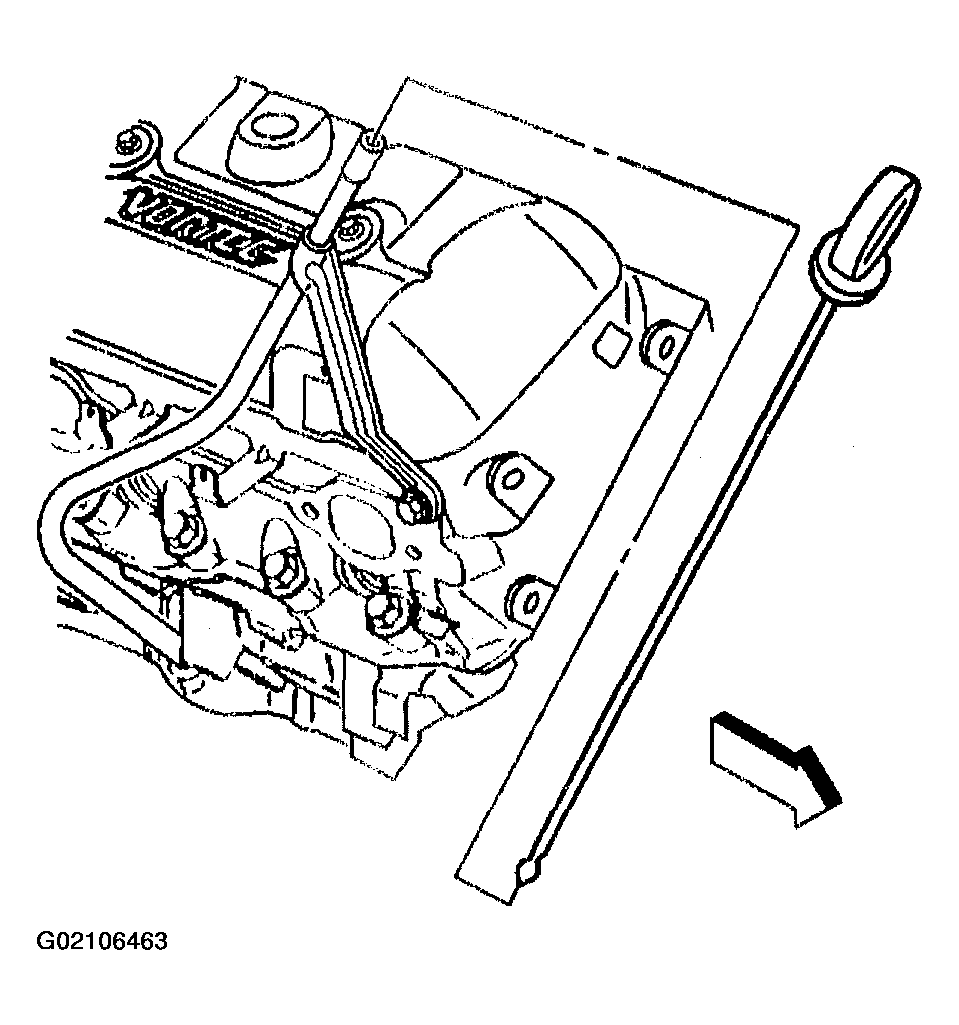

    Fig 2: Install Oil Level Indicator
    G02106463Courtesy of GENERAL MOTORS CORP.
