Intake Manifold Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporative emission (EVAP) canister purge solenoid valve harness.
    1. 1.1. Push the quick disconnect clip and hold in place.
    2. 1.2. Pull outward on the harness elbow.

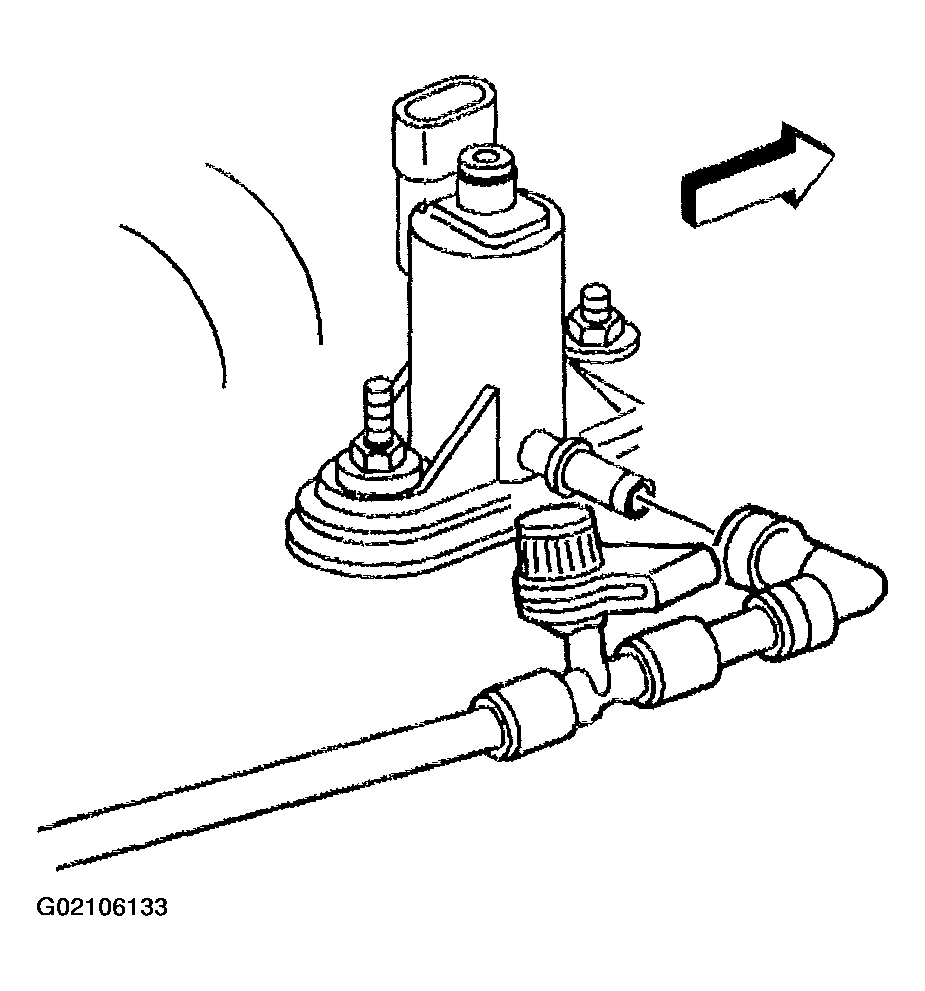

    Fig 1: Removing Evaporative Emission (EVAP) Canister Purge Solenoid Valve Harness
    G02106133Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine coolant temperature (ECT) sensor wire connector, if equipped, from the engine wiring harness bracket.
  3. Remove the lower intake manifold bolts.
    IMPORTANT:
    • The intake manifold may be removed as an assembly. Do not remove the specific intake manifold components unless component service is required.
    • Do not allow dirt or debris to enter the fuel system. Ensure that the ends of the fuel system are properly sealed.
    • Do not disassemble the Central Sequential Fuel Injection (SFI) unit, unless service is required.
  4. Remove the intake manifold assembly.
  5. Remove and discard the lower intake manifold gaskets.

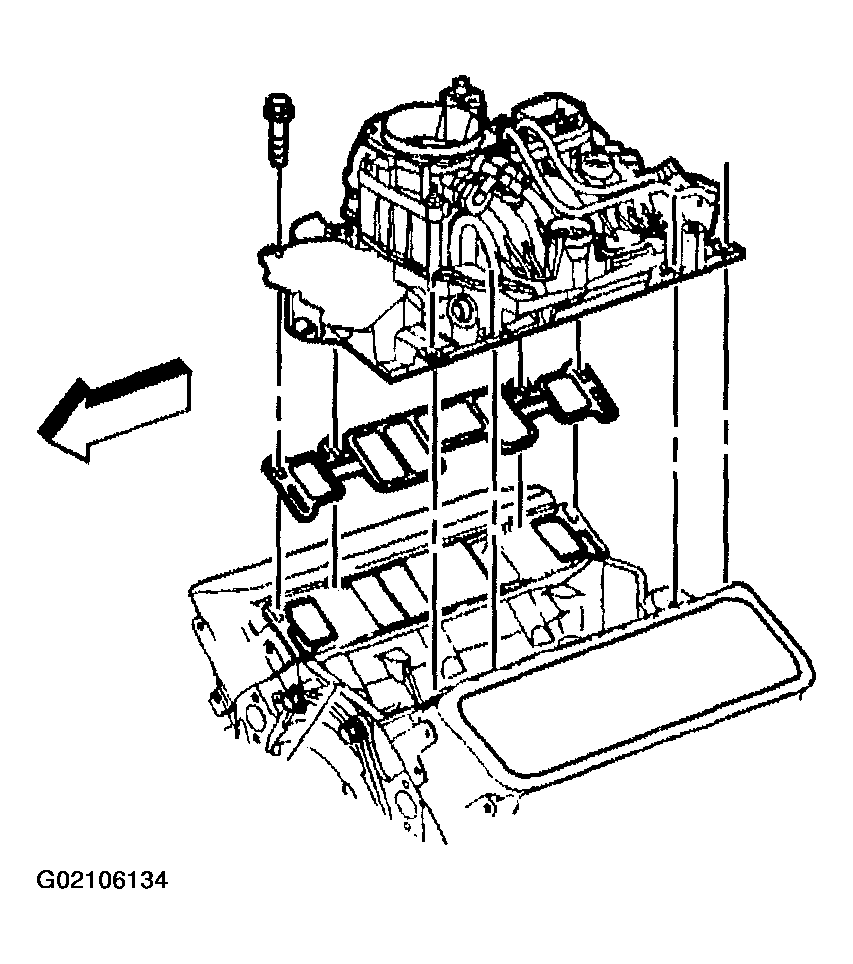

    Fig 2: Remove Intake Manifold Assembly, Gaskets & Bolts
    G02106134Courtesy of GENERAL MOTORS CORP.
