Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft position sensor bolt.
  2. Remove the crankshaft position sensor.

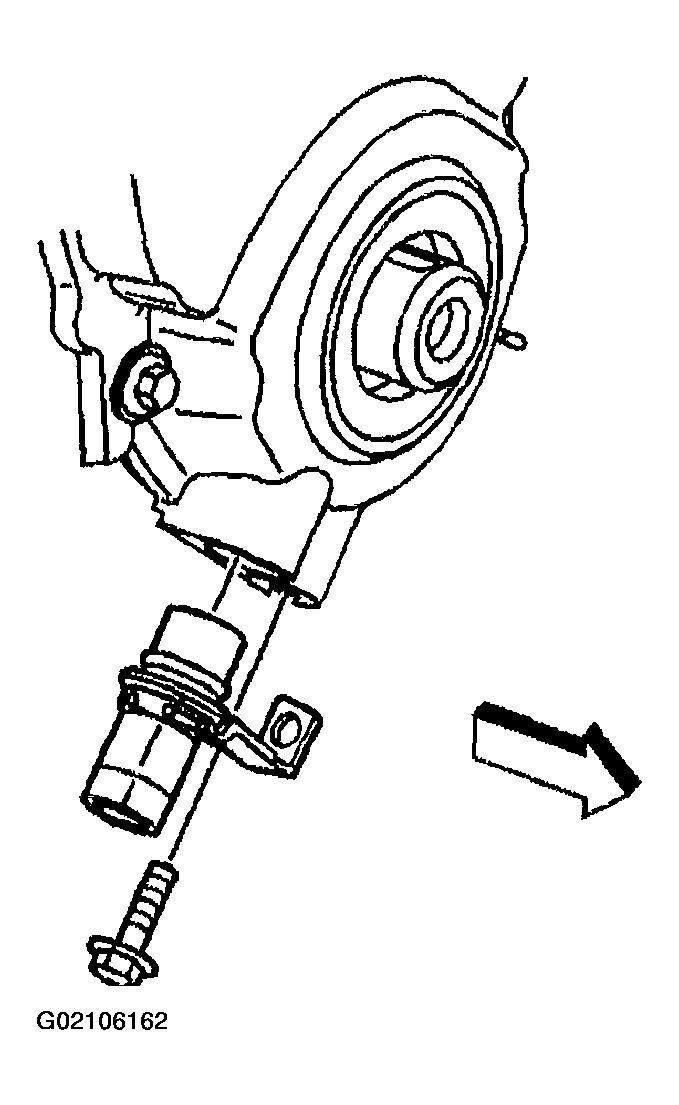

    Fig 1: Removing Crankshaft Position Sensor & Bolt
    G02106162Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft position sensor seal, O-ring.
  4. Discard the crankshaft position sensor seal, O-ring.

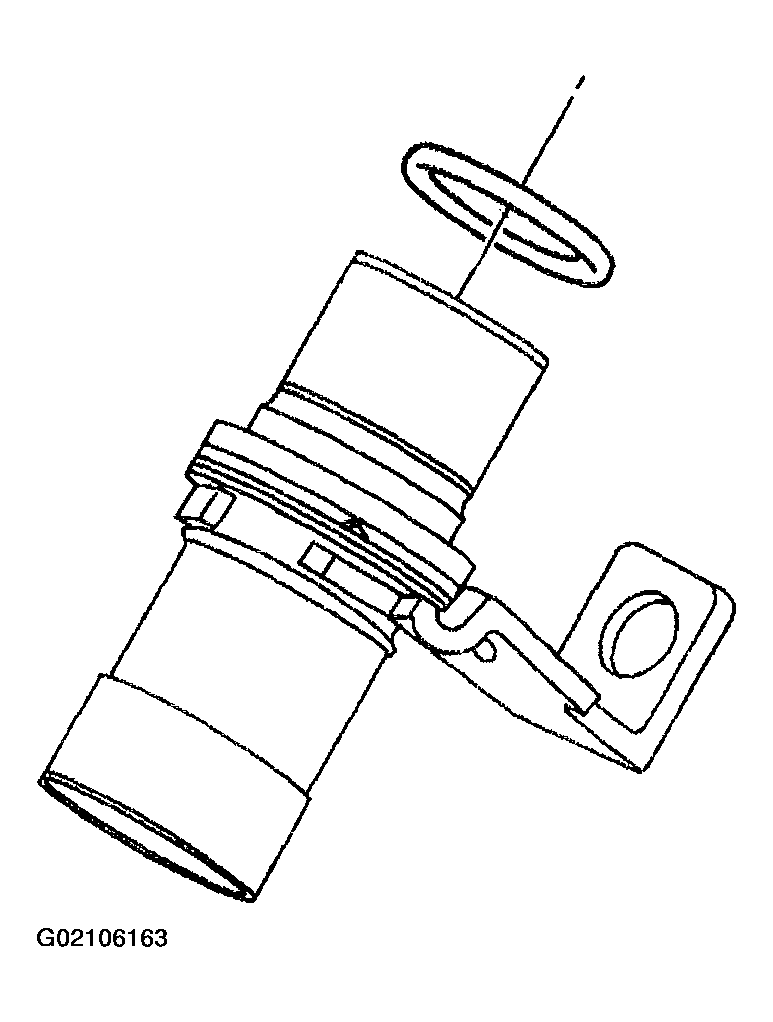

    Fig 2: Removing Crankshaft Position Sensor Seal, O-Ring
    G02106163Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover bolts.
    IMPORTANT: After the composite engine front cover is removed do not reinstall the engine front cover. Always install a NEW engine front cover.
  6. Remove the engine front cover.
  7. Discard the engine front cover.

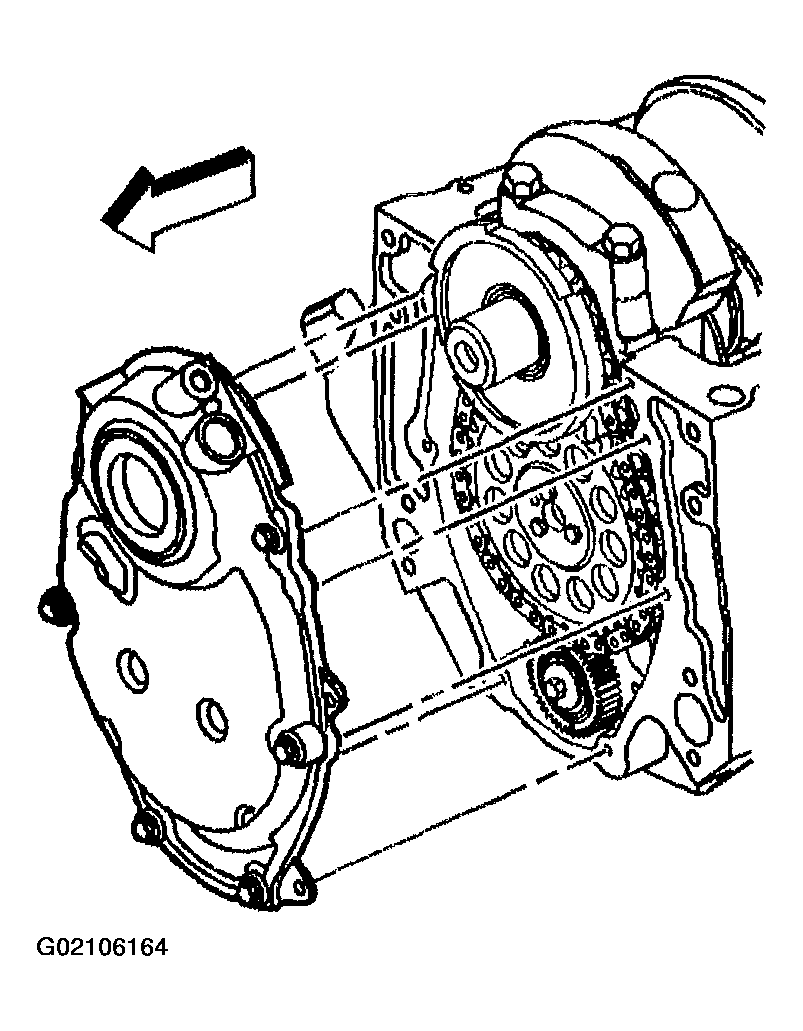

    Fig 3: Removing Engine Front Cover
    G02106164Courtesy of GENERAL MOTORS CORP.
