Engine Flywheel Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel bolts.
  2. Remove the engine flywheel (1), automatic transmission, if applicable.
  3. Remove the engine flywheel (2), manual transmission, if applicable.

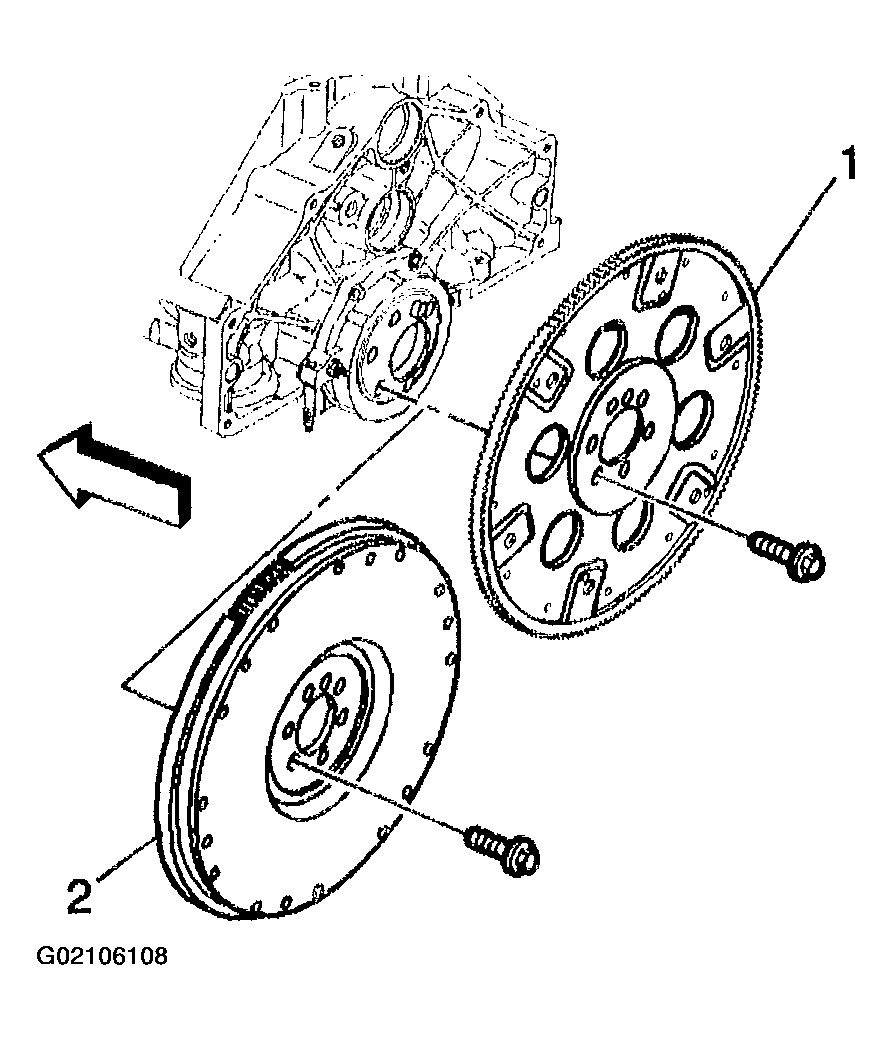

    Fig 1: Removing Engine Flywheel & Bolts
    G02106108Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: If replacing the engine flywheel, manual transmission, NEW flywheel weights must be installed into the NEW engine flywheel in the same location as the old flywheel weights in the old engine flywheel.
  4. Note the position of any flywheel weights for assembly, if applicable.

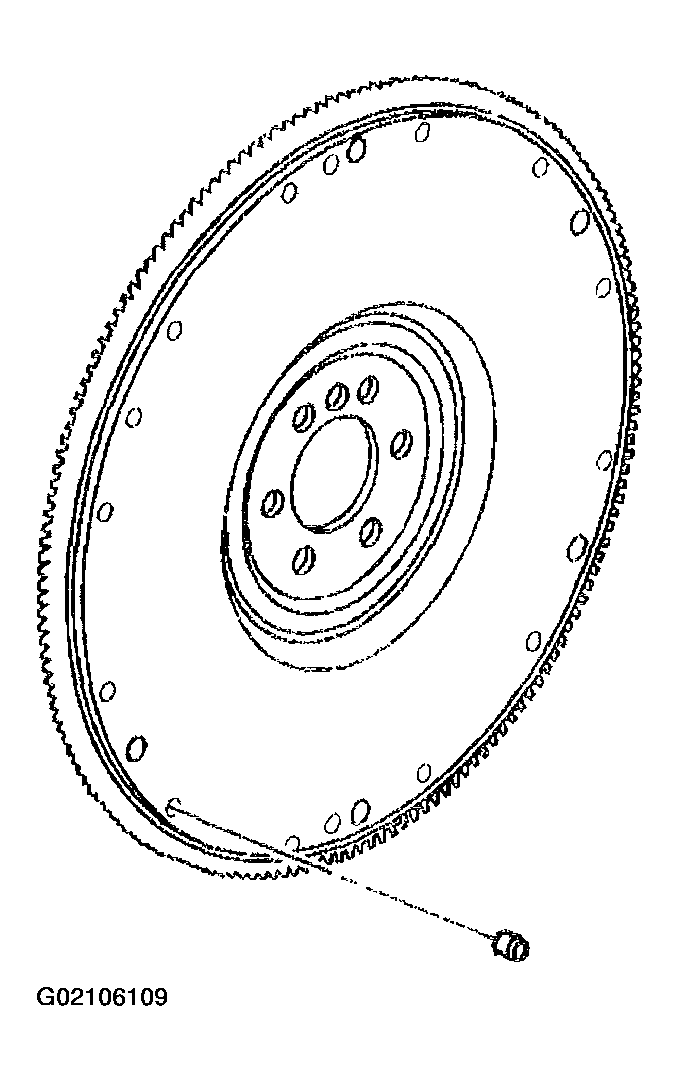

    Fig 2: Flywheel Weights
    G02106109Courtesy of GENERAL MOTORS CORP.
