Distributor Removal

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ignition coil wire harness from the ignition coil and distributor cap.

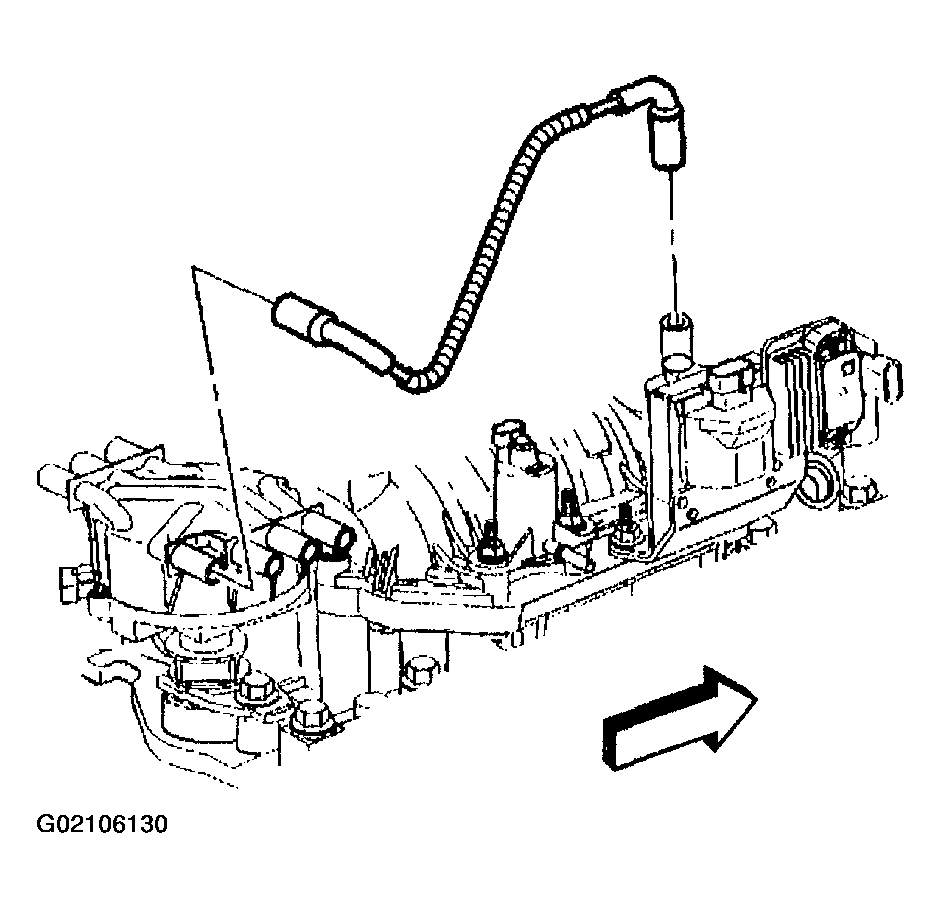

    Fig 1: Remove Ignition Coil Wire Harness
    G02106130Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor clamp bolt.
  3. Remove the distributor and the distributor clamp.

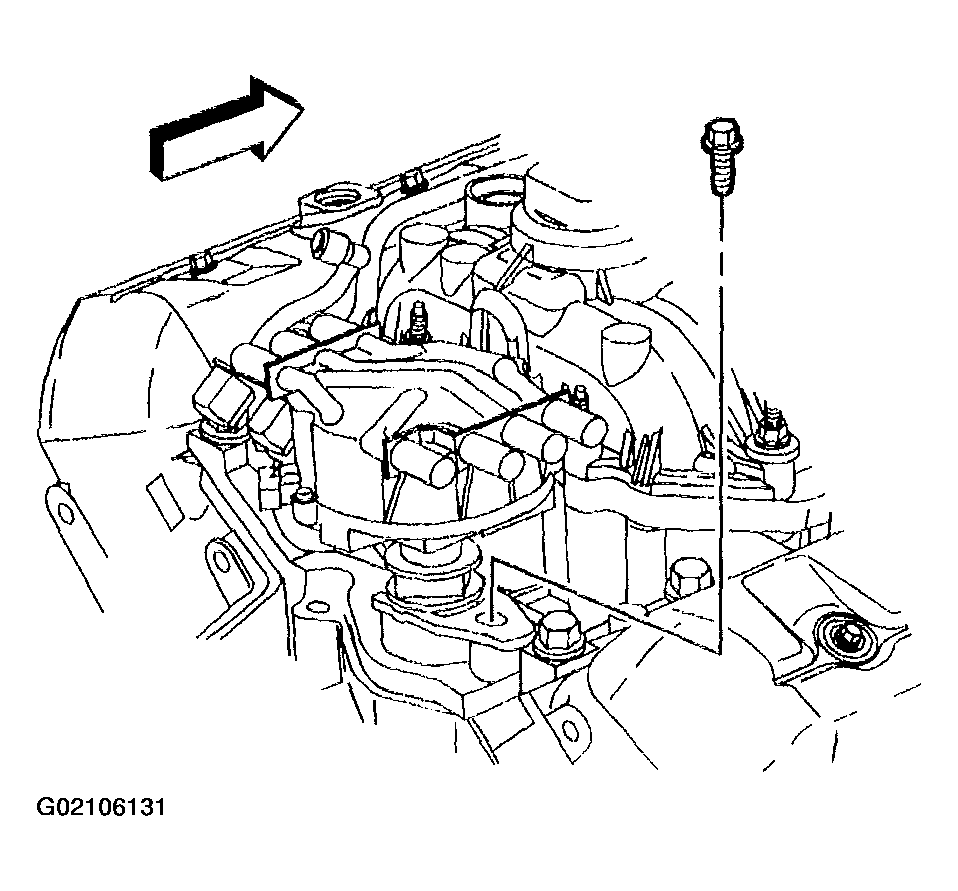

    Fig 2: Removing Distributor, Clamp & Bolt
    G02106131Courtesy of GENERAL MOTORS CORP.
  4. Remove the distributor gasket and discard.

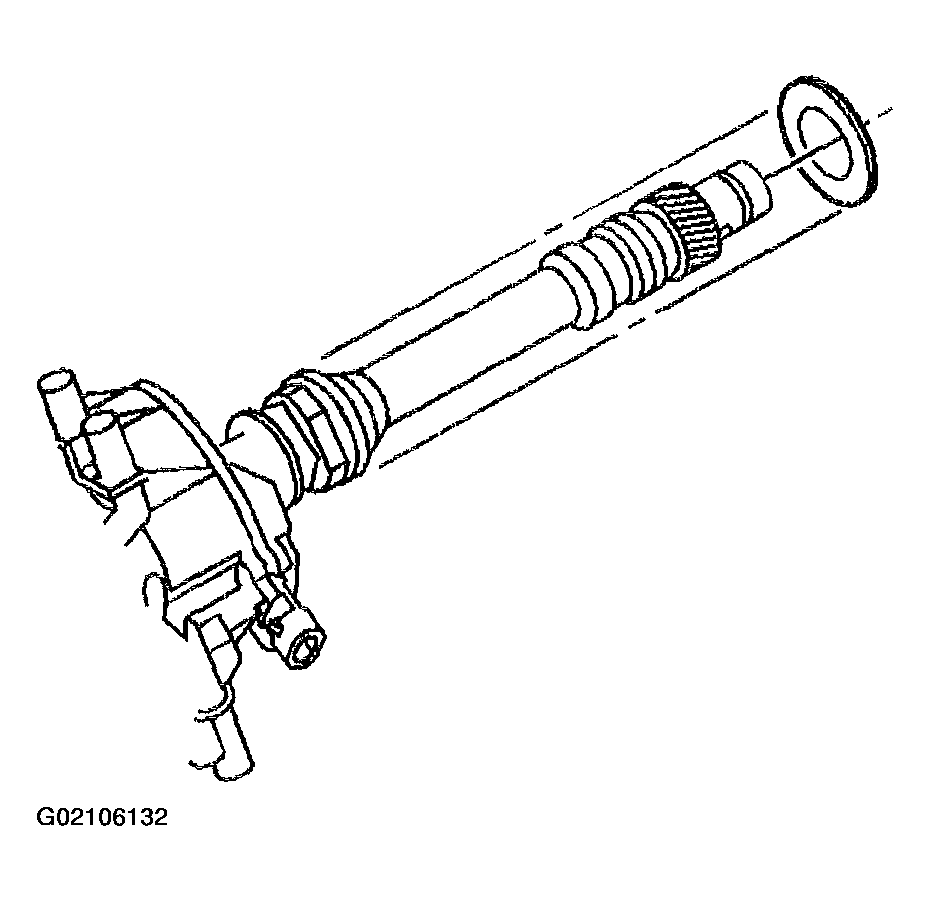

    Fig 3: Removing Distributor Gasket
    G02106132Courtesy of GENERAL MOTORS CORP.
