Distributor Installation

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The engine front cover has 2 alignment tabs and the crankshaft balancer has 2 alignment marks (spaced 90 degrees apart) which are used for positioning number 1 piston at top dead center (TDC). With the piston on the compression stroke and at top dead center, the crankshaft balancer alignment mark (1) must align with the engine front cover tab (2) and the crankshaft balancer alignment mark (4) must align with the engine front cover tab (3).
  1. Rotate the crankshaft balancer clockwise until the alignment marks on the crankshaft balancer are aligned with the tabs on the engine front cover and the number 1 piston is at top dead center of the compression stroke.

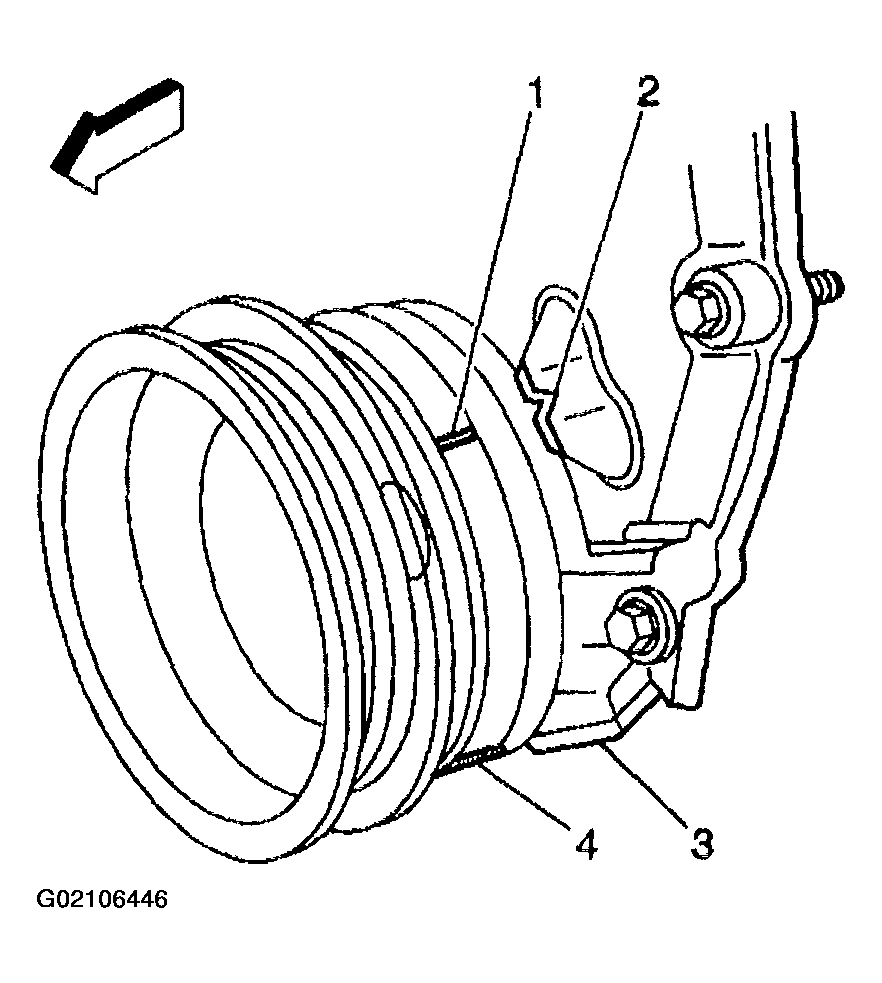

    Fig 1: Aligning Crankshaft Balancer Alignment Mark With Tabs On Engine Front Cover
    G02106446Courtesy of GENERAL MOTORS CORP.
  2. Remove the distributor cap bolts and discard.
  3. Remove the distributor cap.
    Fig 2: Remove Distributor Cap & Bolts
    G02106447Courtesy of GENERAL MOTORS CORP.
  4. Install a NEW distributor gasket onto the distributor.

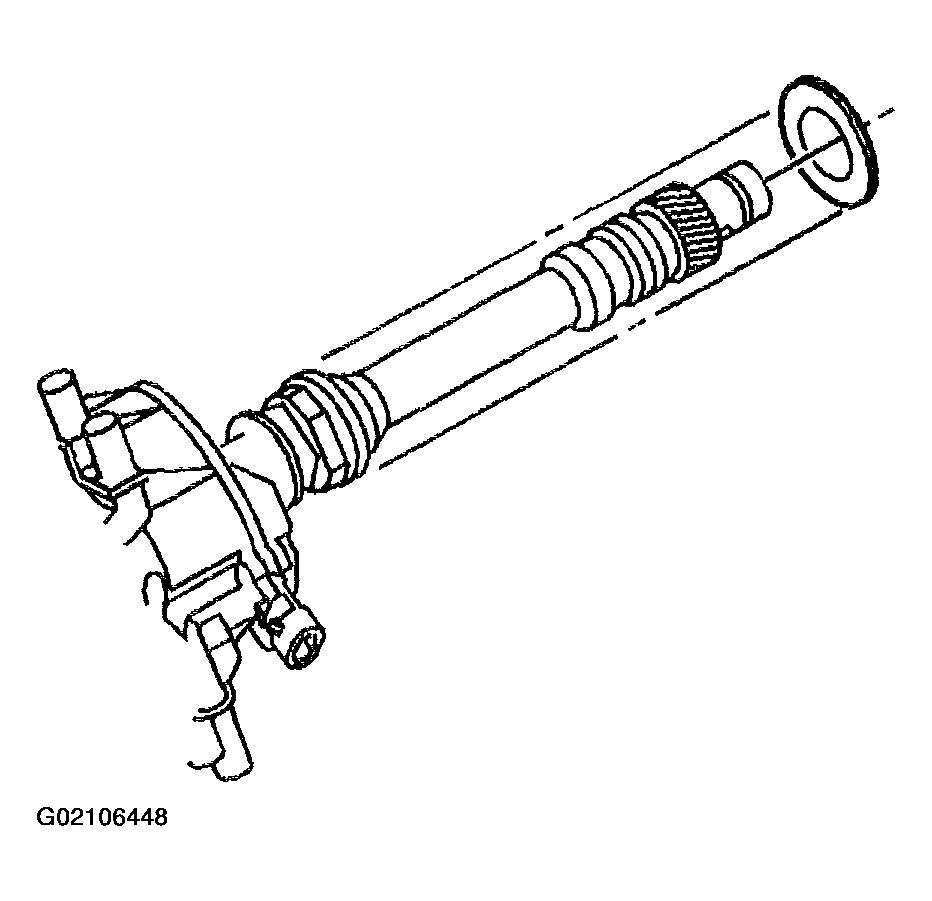

    Fig 3: Install Distributor Gasket
    G02106448Courtesy of GENERAL MOTORS CORP.
  5. Align the indent hole on the driven gear with the paint mark on the distributor housing.
  6. Ensure that the distributor rotor segment points to the cap hold area.

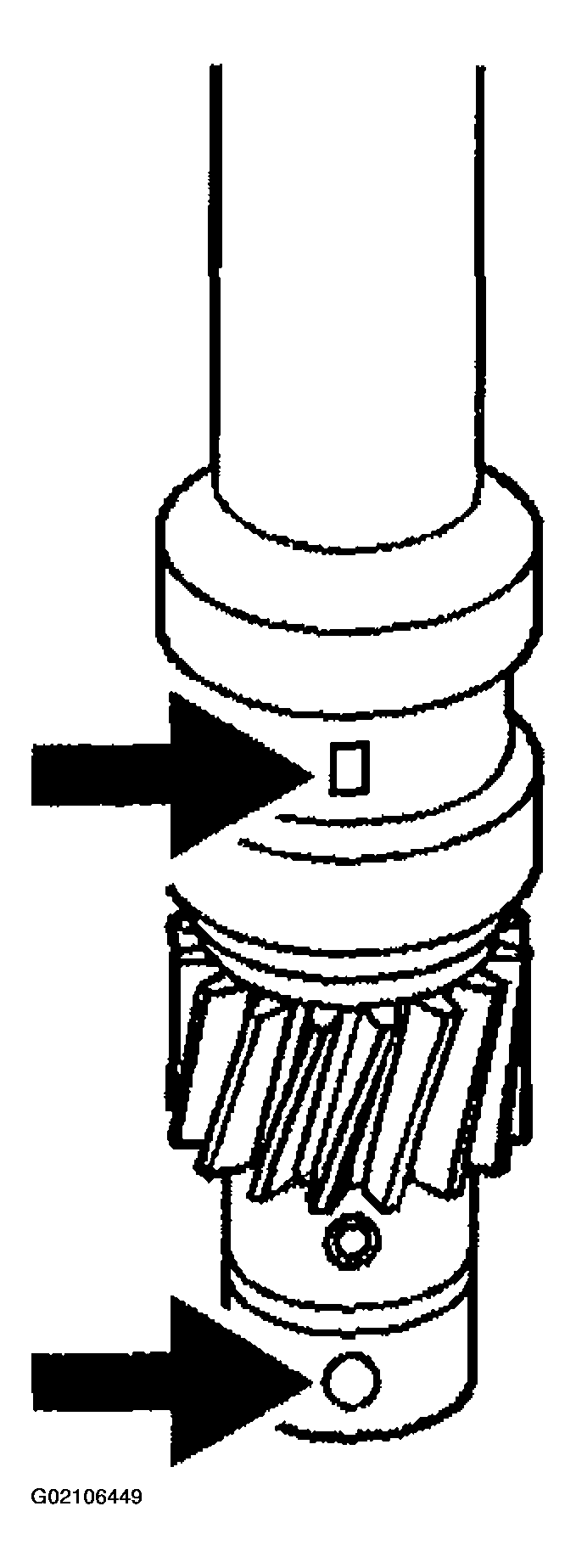

    Fig 4: Aligning Driven Gear With Paint Mark On Distributor Housing
    G02106449Courtesy of GENERAL MOTORS CORP.
  7. Align the slotted tang in the oil pump driveshaft with the distributor driveshaft.

    Rotate the oil pump driveshaft with a screwdriver if necessary.

  8. Align the flat (1) in the distributor housing toward the front of the engine.

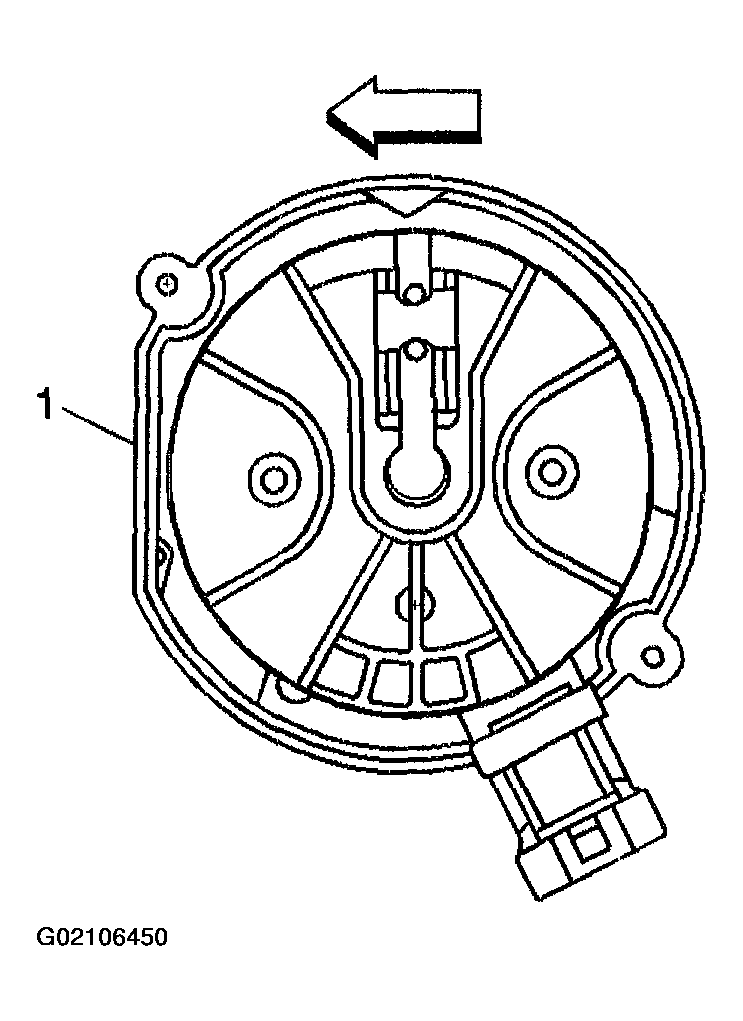

    Fig 5: Aligning Flat In Distributor Housing
    G02106450Courtesy of GENERAL MOTORS CORP.
  9. Install the distributor and distributor clamp.

    The flat in the distributor housing must point toward the front of the engine.

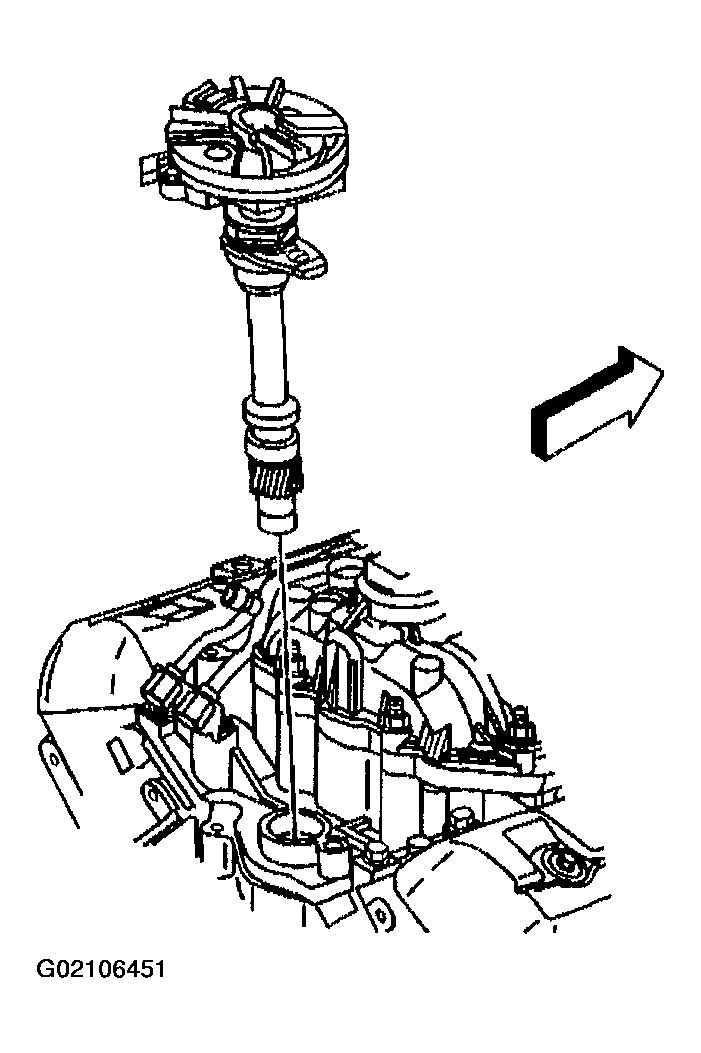

    Fig 6: Installing Distributor & Clamp
    G02106451Courtesy of GENERAL MOTORS CORP.
  10. Once the distributor is fully seated, align the distributor rotor segment with the number 6 pointer (1) that is cast into the distributor base.

    If the distributor rotor segment does not come within a few degrees of the number 6 pointer (1), the gear mesh between the distributor and camshaft may be off a tooth or more. Repeat the procedure again in order to achieve proper alignment.

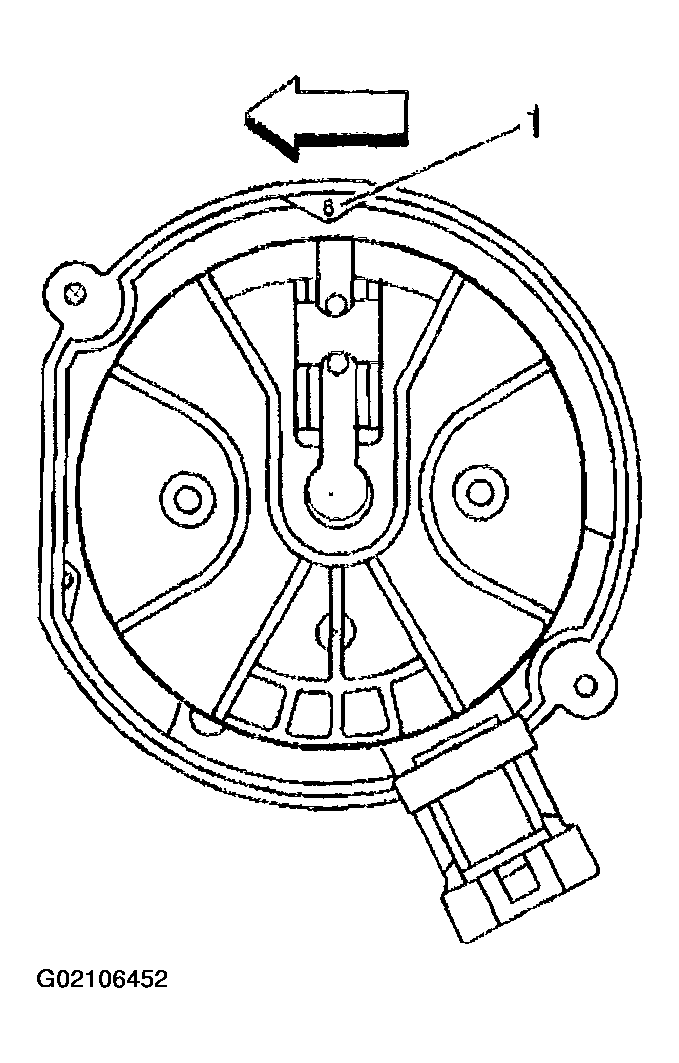

    Fig 7: Aligning Distributor Rotor Segment & Distributor Base
    G02106452Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  11. Install the distributor clamp bolt.

    Tighten

    Tighten the distributor clamp bolt to 25 N.m (18 lb ft).

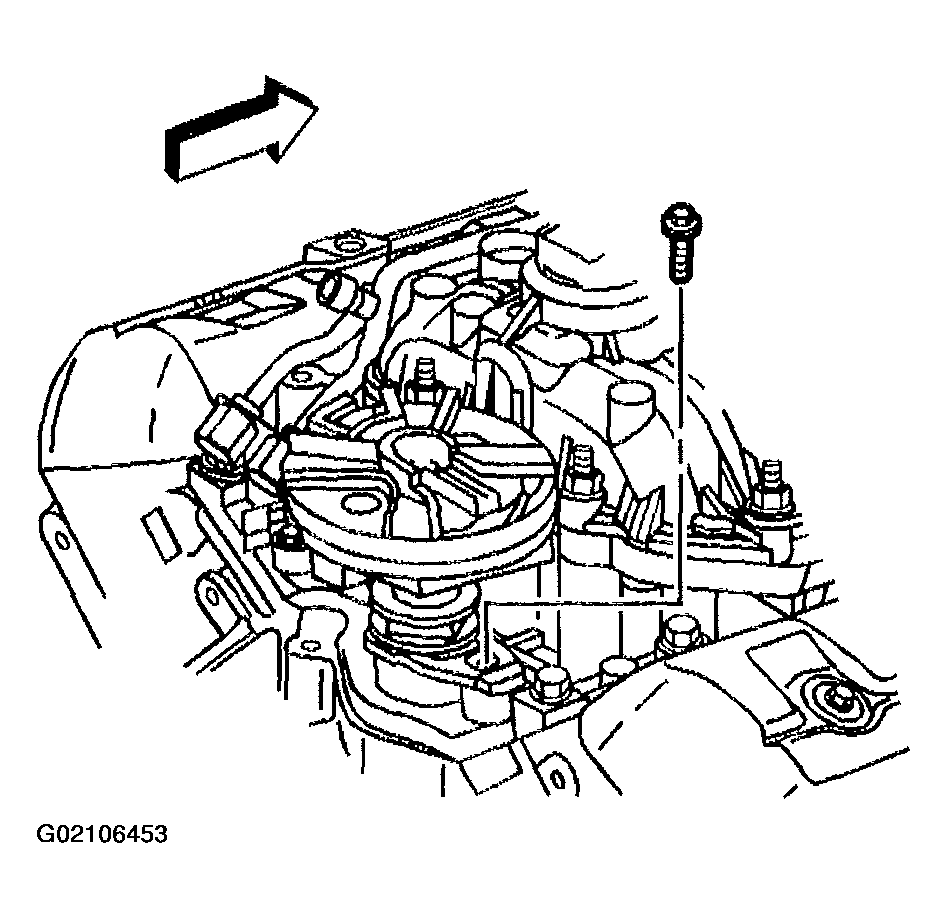

    Fig 8: Install Distributor Clamp Bolt
    G02106453Courtesy of GENERAL MOTORS CORP.
  12. Install the distributor cap and NEW distributor cap bolts.

    Tighten

    Tighten the distributor cap bolts to 2.4 N.m (21 lb in).

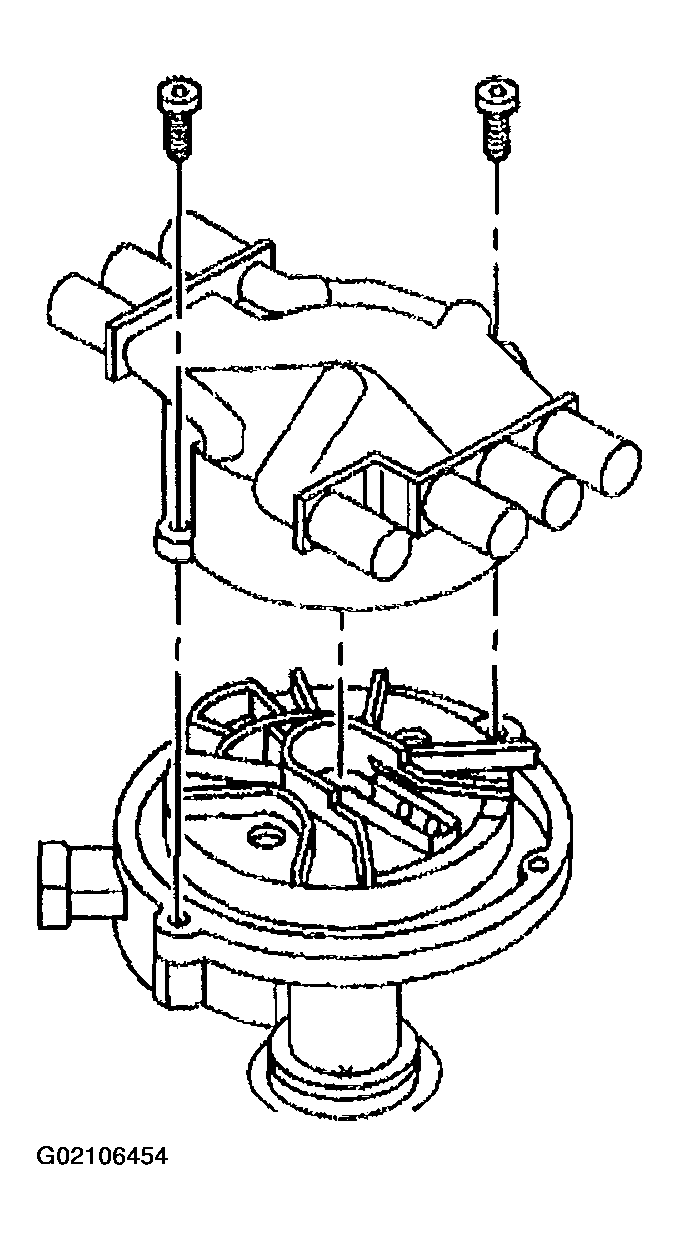

    Fig 9: Installing Distributor Cap & Bolts
    G02106454Courtesy of GENERAL MOTORS CORP.

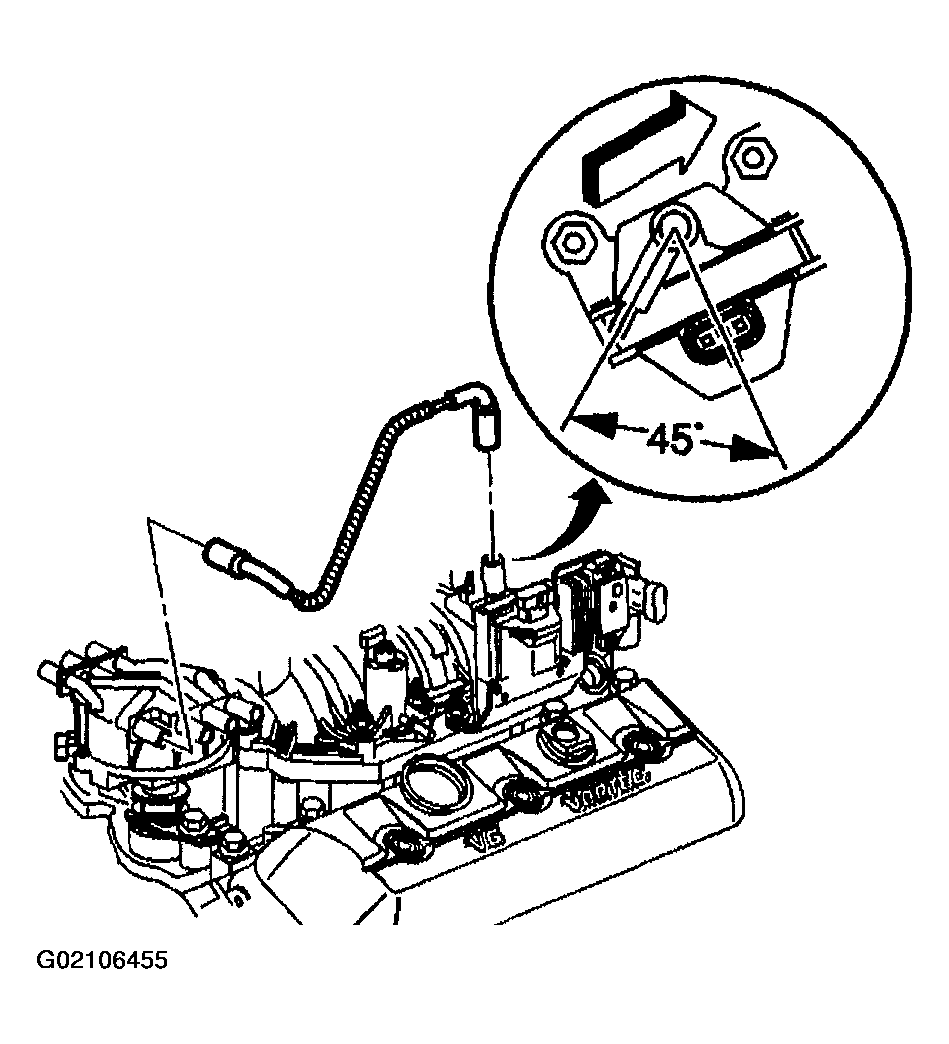

  13. Install the ignition coil wire harness.
    Fig 10: Installing Ignition Coil Wire Harness
    G02106455Courtesy of GENERAL MOTORS CORP.
