Diagnostic Aids

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Replace the EBCM if DTC C0273 or DTC C0284 continues to set intermittently.

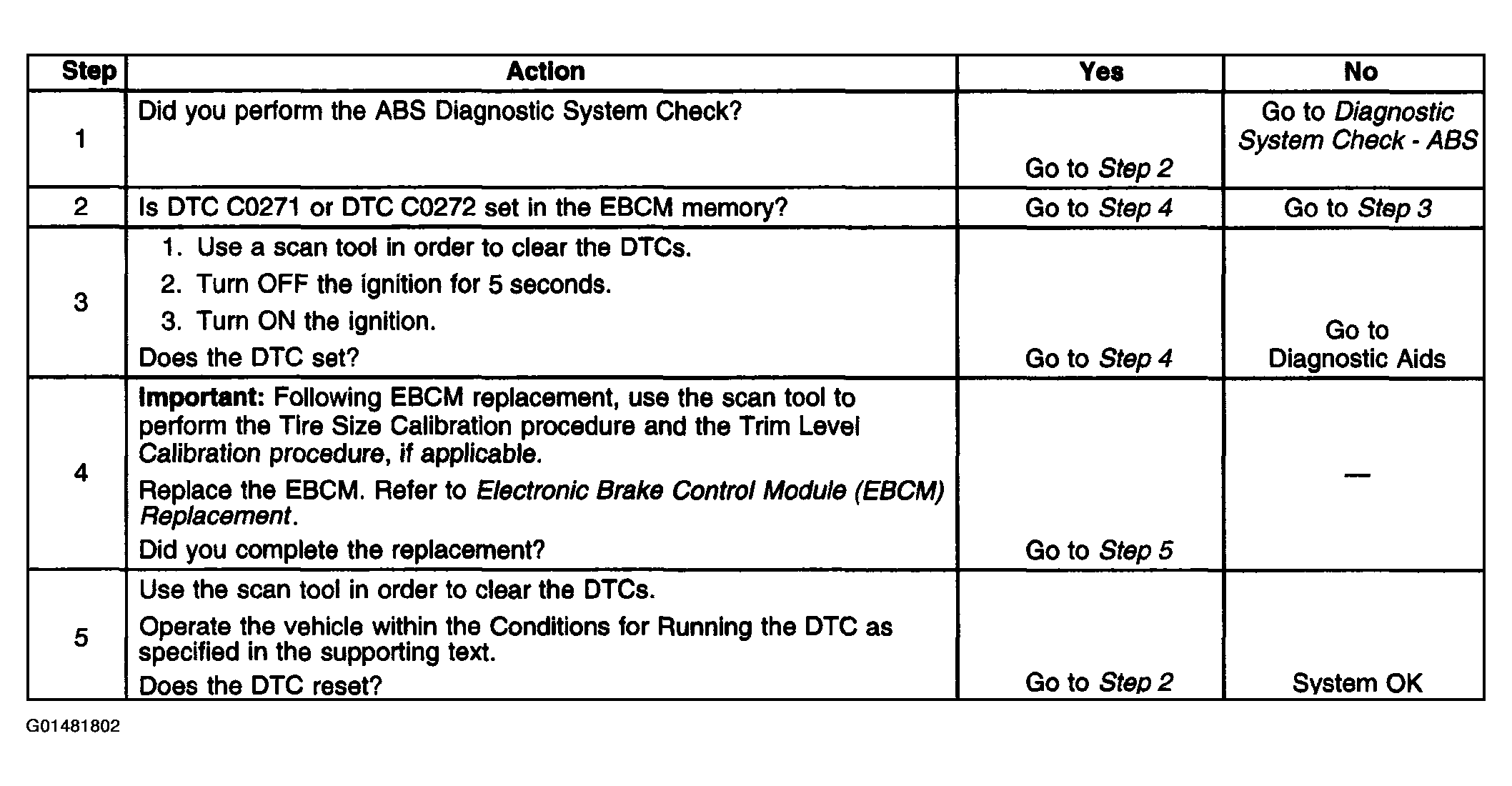

Fig 1: DTC C0271-C0273, C0284
G01481802Courtesy of GENERAL MOTORS CORP.
