Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 4. If the front tires are not the same size as the rear tires, the EBCM calibration must match the FRONT tire size and the PCM calibration must match the REAR tires size.

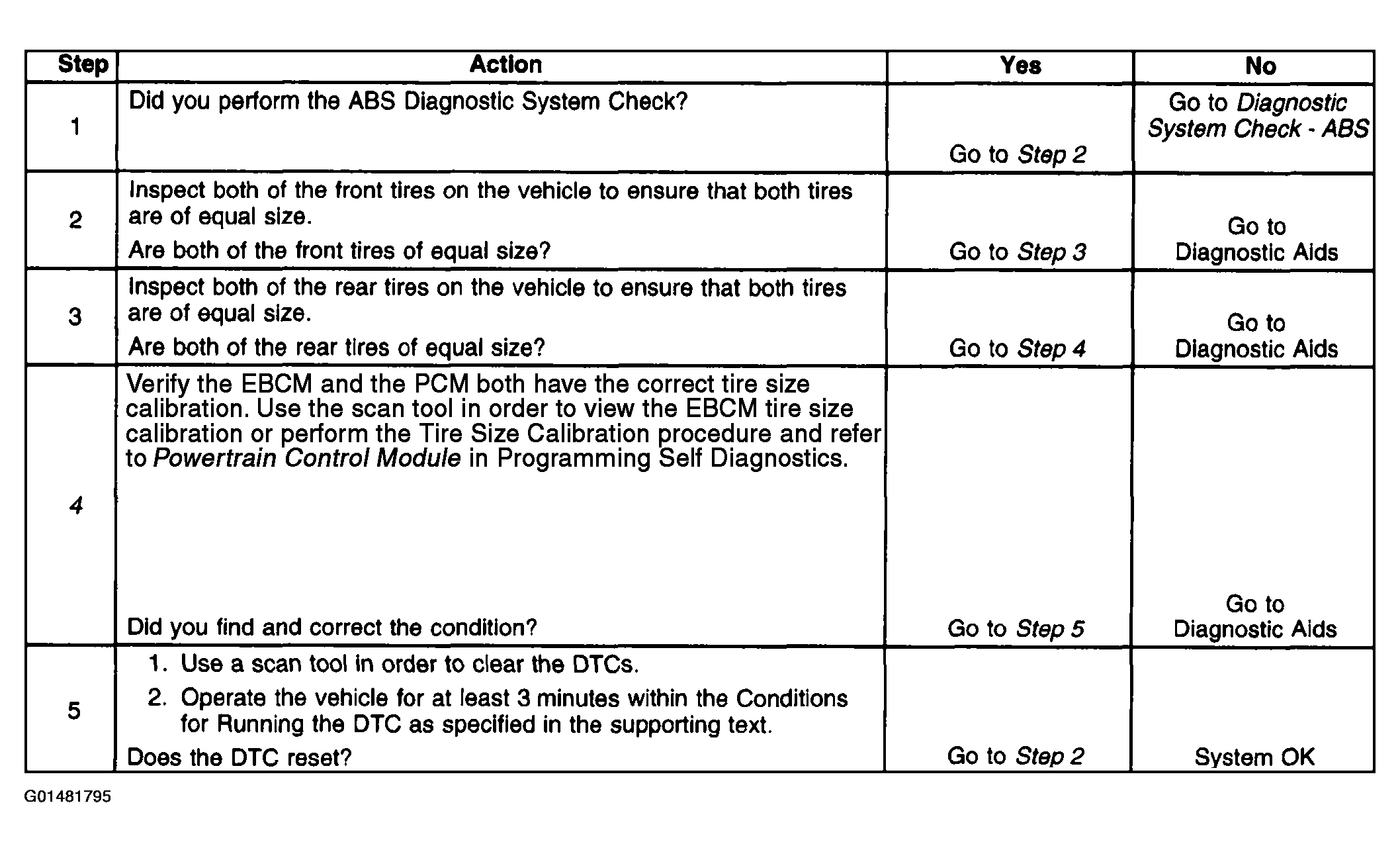

Fig 1: DTC C0241-C0254 (Over 8600 GVW)
G01481795Courtesy of GENERAL MOTORS CORP.
