Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .
  2. Disconnect the speed sensor electrical connector.

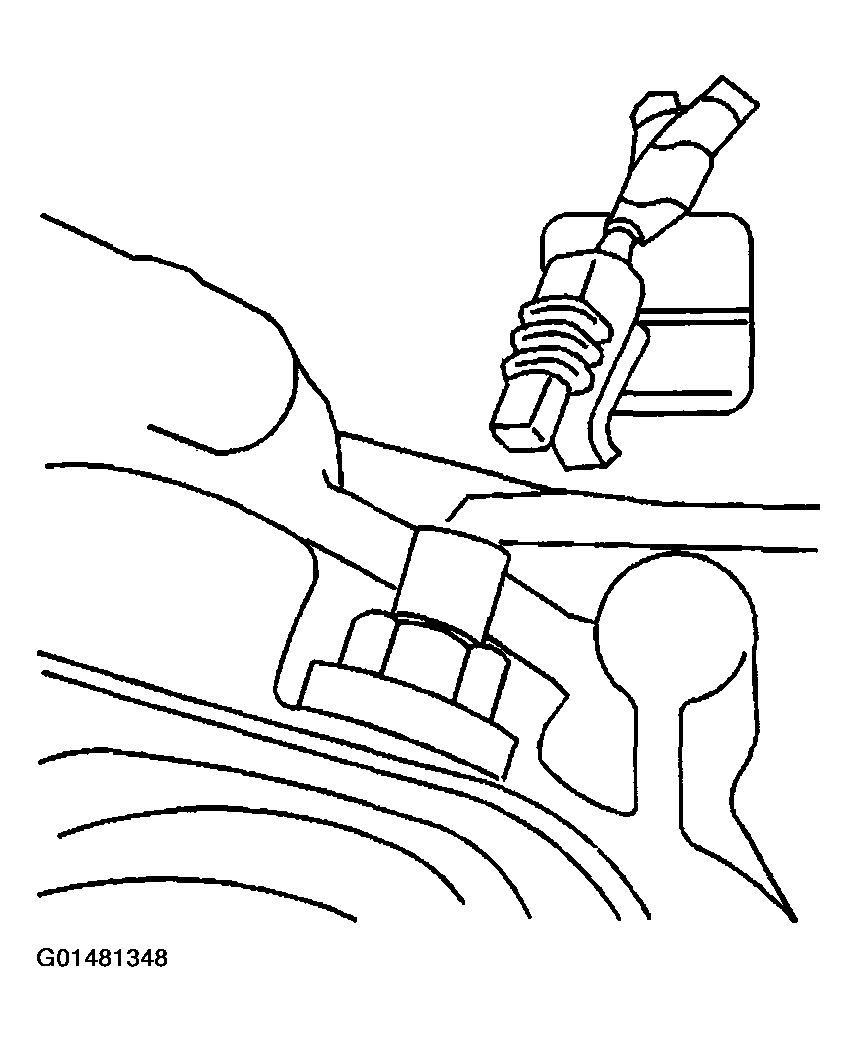

    Fig 1: Speed Sensor Electrical Connector
    G01481348Courtesy of GENERAL MOTORS CORP.
  3. Remove the speed sensor.

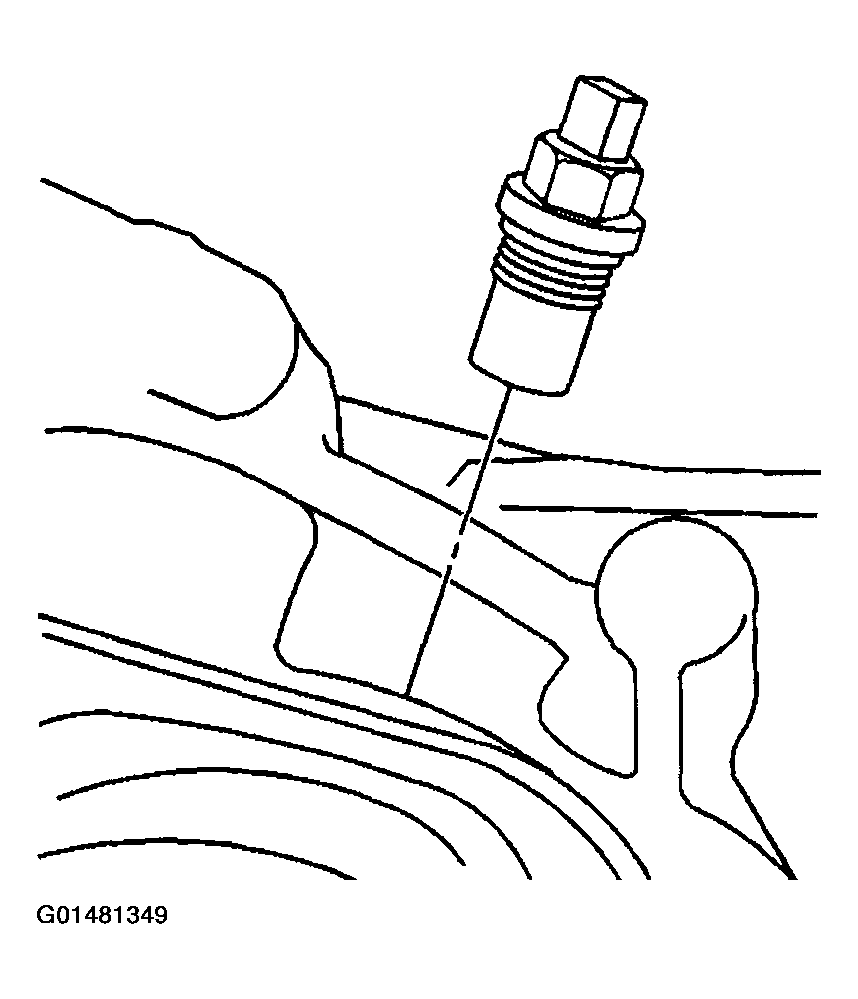

    Fig 2: Speed Sensor
    G01481349Courtesy of GENERAL MOTORS CORP.
