Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Pull the tabs on the side of the transfer case driver control switch straight out from the panel.
  3. Pull the transfer case driver control switch straight out from the panel.

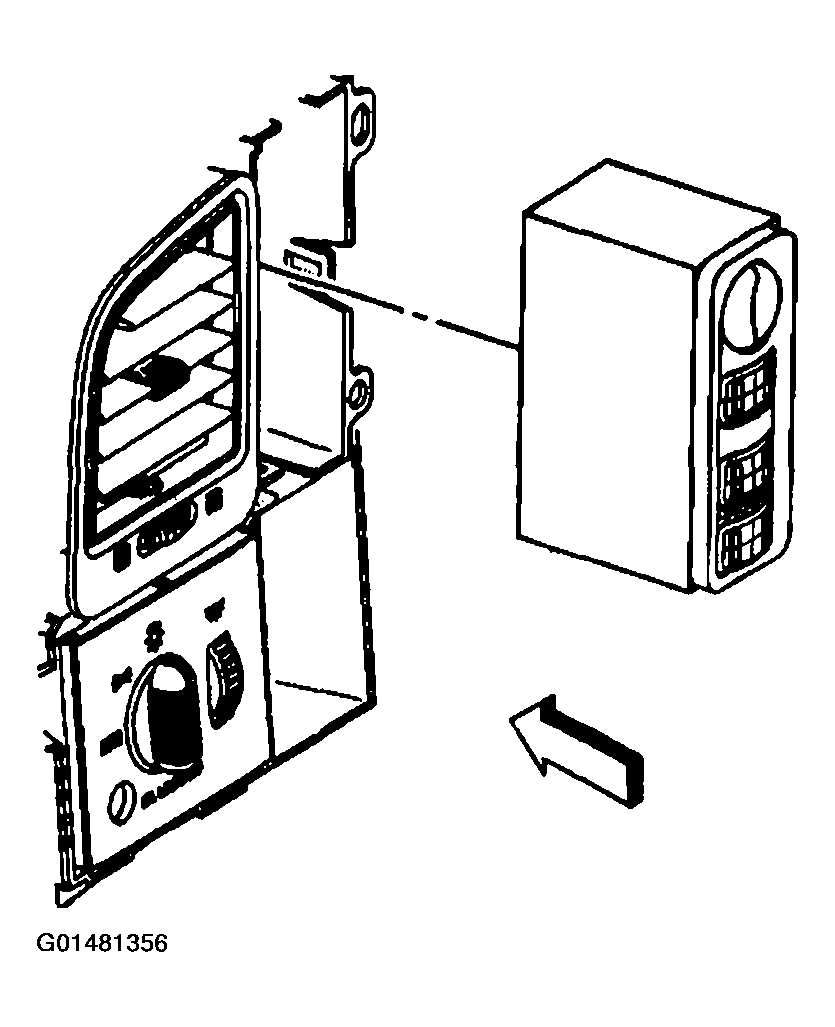

    Fig 1: Transfer Case Driver Control Switch
    G01481356Courtesy of GENERAL MOTORS CORP.
