Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Make sure that the transfer case control switch is seated properly in the instrument panel before installing the instrument panel trim bezel.
  1. Install the transfer case driver control switch into the instrument panel.
  2. Install the IP cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER  .

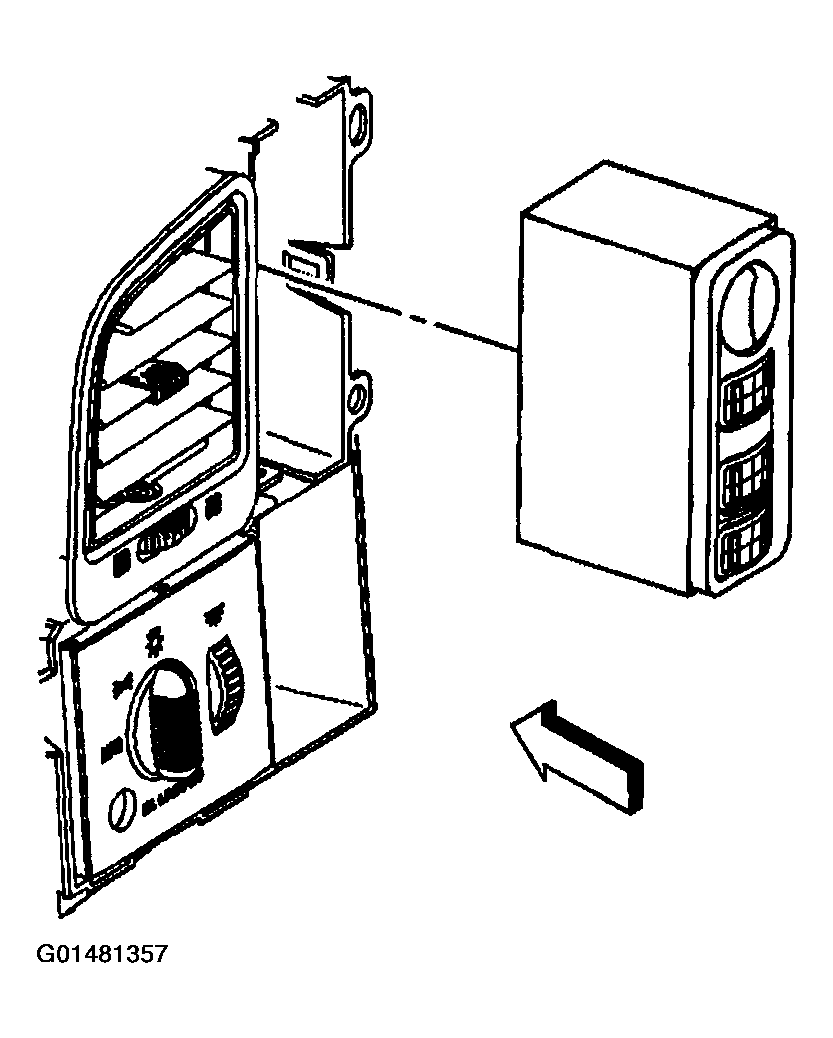

    Fig 1: Transfer Case Driver Control Switch
    G01481357Courtesy of GENERAL MOTORS CORP.
