Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the shift control module electrical connectors.

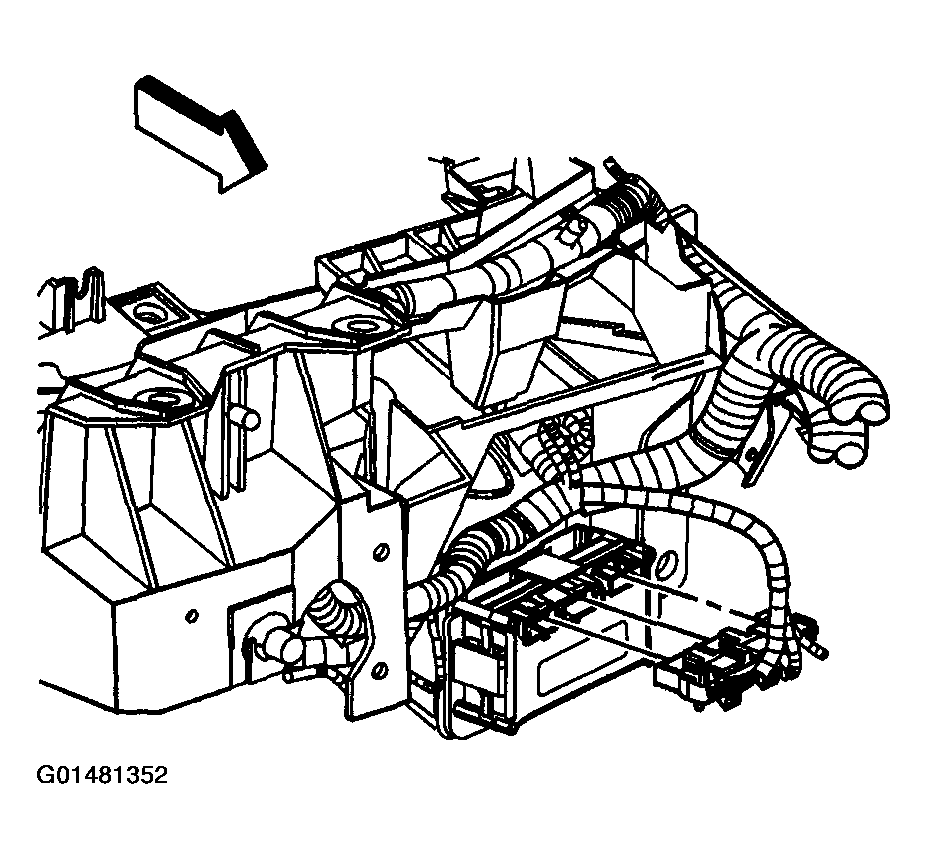

    Fig 1: Shift Control Module Electrical Connectors
    G01481352Courtesy of GENERAL MOTORS CORP.
  2. Unsnap and remove the shift control module from the bracket.

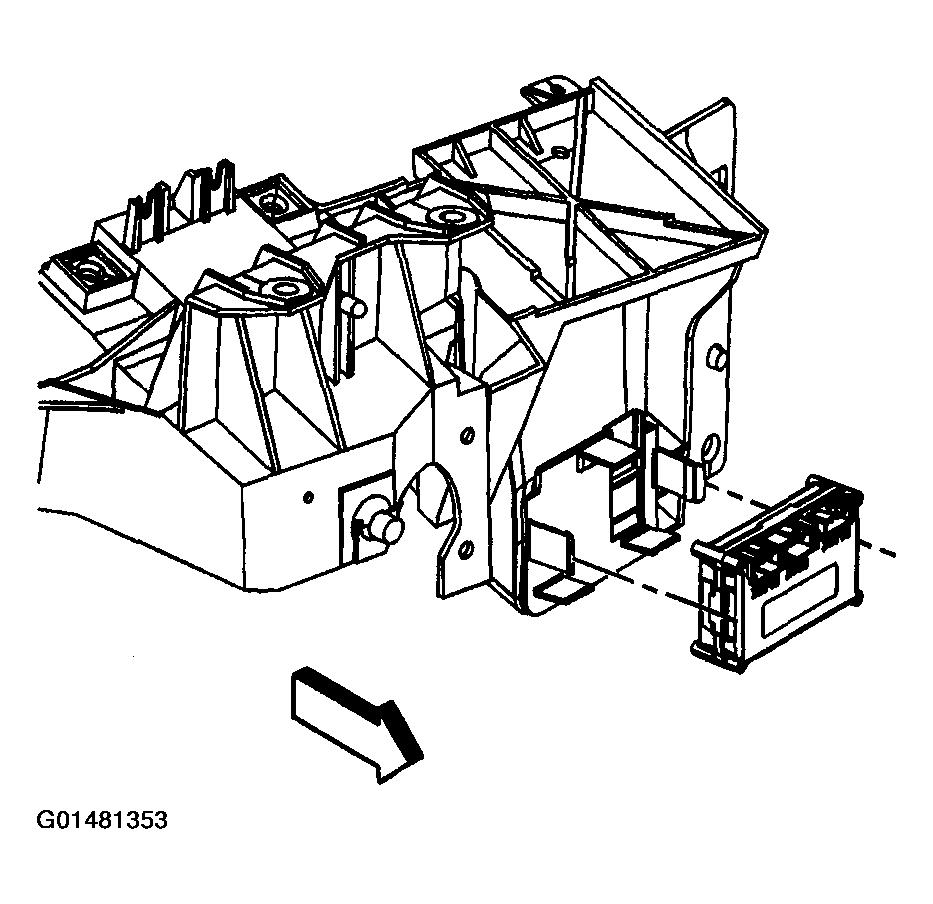

    Fig 2: Shift Control Module & Bracket
    G01481353Courtesy of GENERAL MOTORS CORP.
