Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift control module to the bracket.

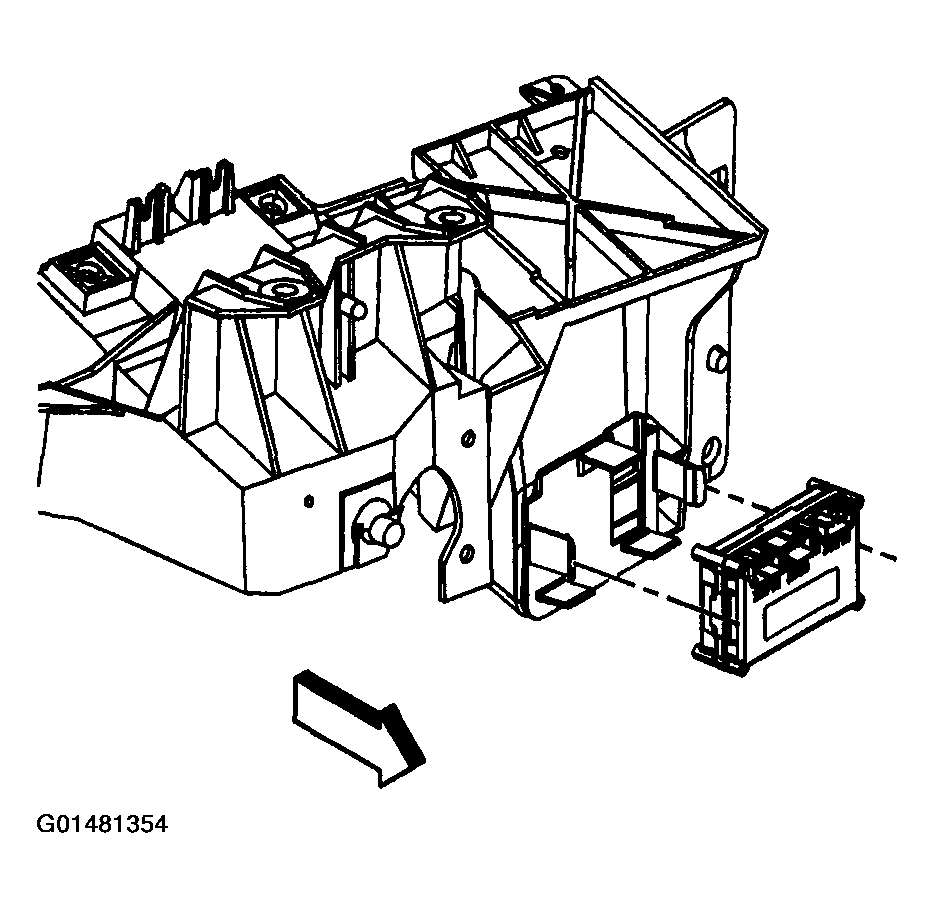

    Fig 1: Shift Control Module & Bracket
    G01481354Courtesy of GENERAL MOTORS CORP.
  2. Connect the shift control module electrical connectors.
  3. Start the engine and test the automatic transfer case system for proper shift operation.

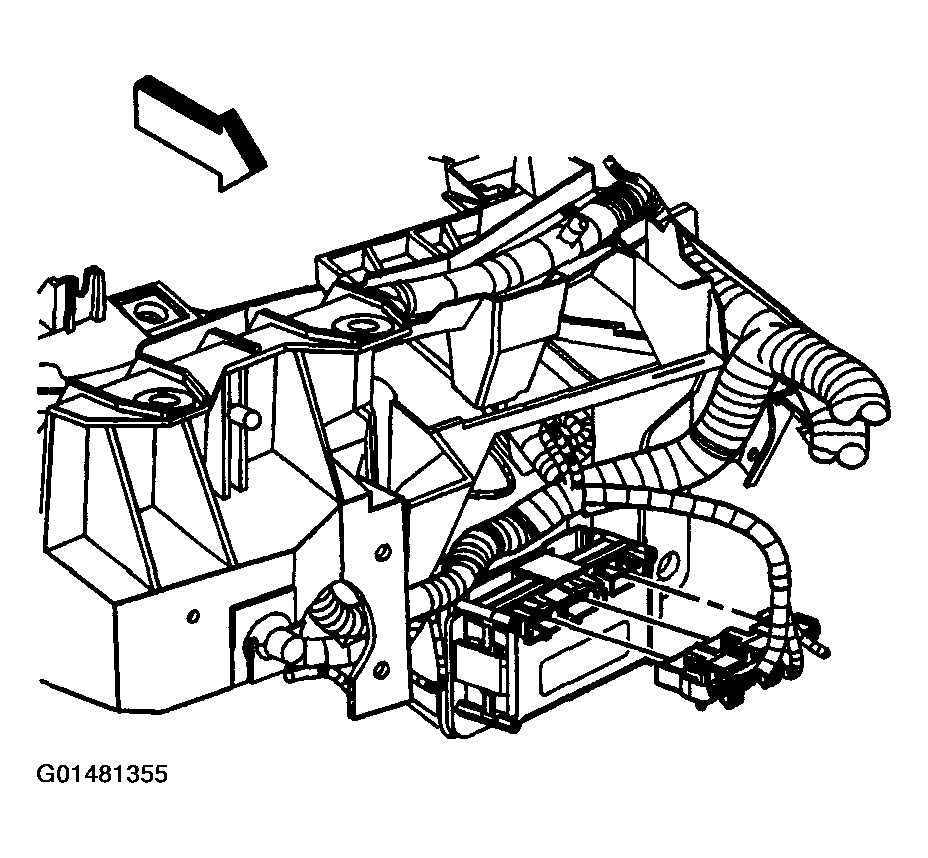

    Fig 2: Shift Control Module Electrical Connectors
    G01481355Courtesy of GENERAL MOTORS CORP.
