Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When performing the following procedure, use only hand tools to remove and install the drain and fill plugs.
  1. Remove the transfer case shield, if equipped. Refer to TRANSFER CASE FLUID REPLACEMENT  .
  2. Remove the fill plug.
    Fig 1: Fill Plug
    G01481340Courtesy of GENERAL MOTORS CORP.
  3. Remove the drain plug.

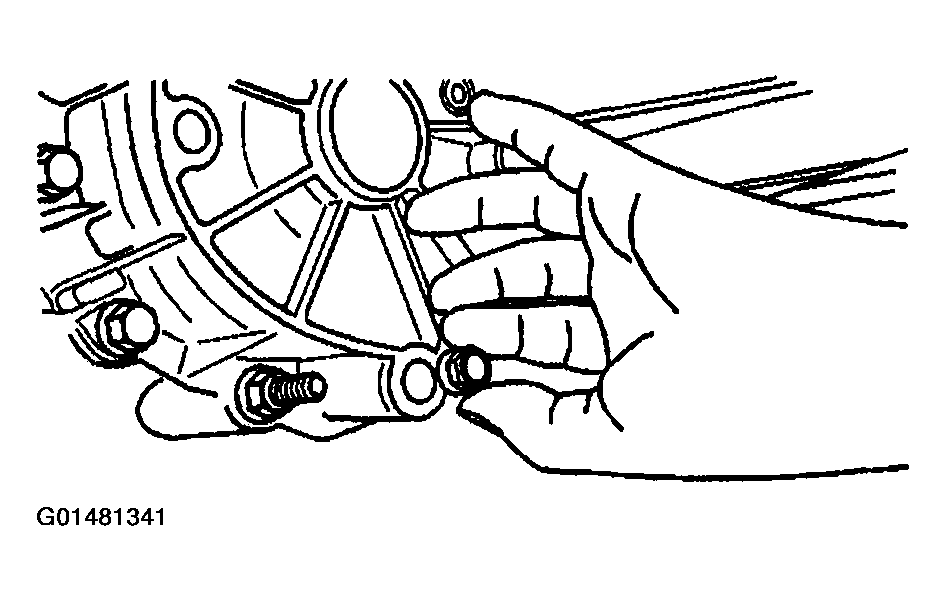

    Fig 2: Drain Plug
    G01481341Courtesy of GENERAL MOTORS CORP.
