Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
IMPORTANT: Use only drain and fill plugs that are made from aluminum. Steel or brass plugs are not compatible with the magnesium case.
  1. Install the drain plug.

    Tighten

    Tighten the plug to 20 N.m (15 lb ft).

  2. Fill the transfer case to the bottom of the fill plug hole with the approved fluid.

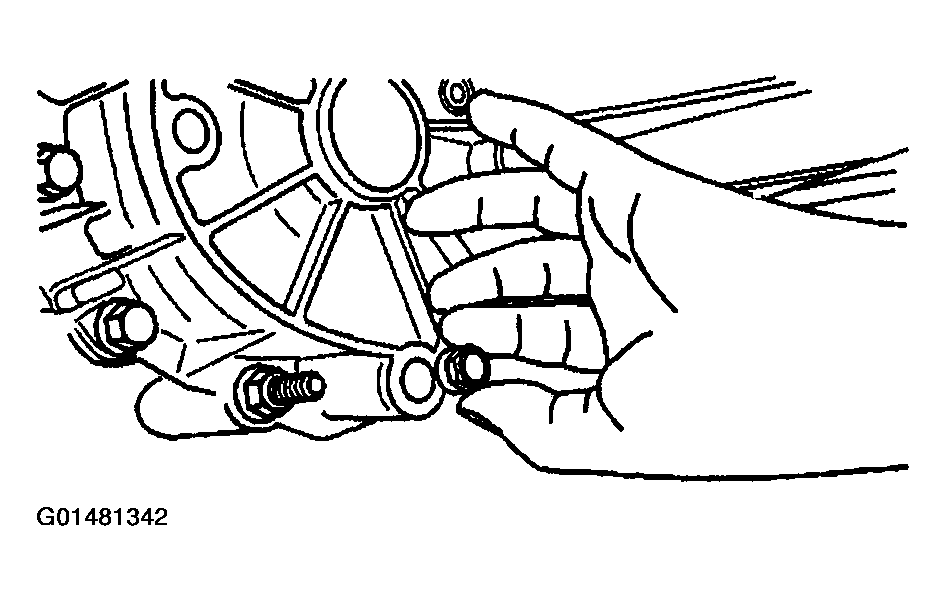

    Fig 1: Drain Plug
    G01481342Courtesy of GENERAL MOTORS CORP.
  3. Install the fill plug.

    Tighten

    Tighten the plug to 20 N.m (15 lb ft).

  4. Lower the vehicle.
    Fig 2: Fill Plug
    G01481343Courtesy of GENERAL MOTORS CORP.
