Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • If the encoder motor is being replaced because it is defective, ensure that the transfer case is in the neutral position. Manually shift the unit at the shift shaft. Use a crescent wrench, if necessary.
  • If the encoder motor is being replaced, a new gasket will come with the encoder motor. DO NOT reuse the old gasket.
  • A NEW encoder motor does NOT come with locating pins.
  1. Install the locating pins to the NEW encoder motor.
  2. Position a NEW actuator insulator gasket to the transfer case.
  3. Install the encoder motor.

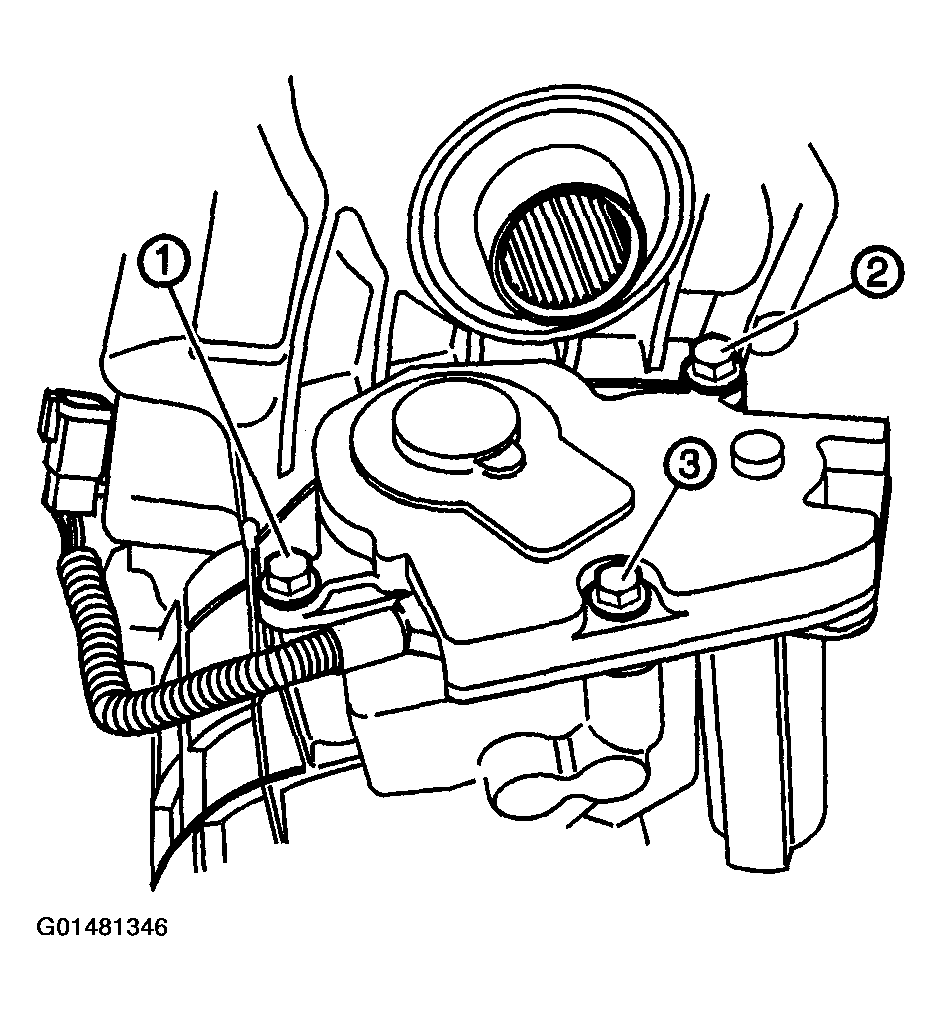

    Fig 1: Encoder Motor & Bolts
    G01481346Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install encoder motor bolts.

    Tighten

    Tighten the bolts, in the sequence shown, to 20 N.m (15 lb ft).

  5. Connect the encoder motor electrical connector. Ensure that the retention clips activate.
  6. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT  .
  7. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .

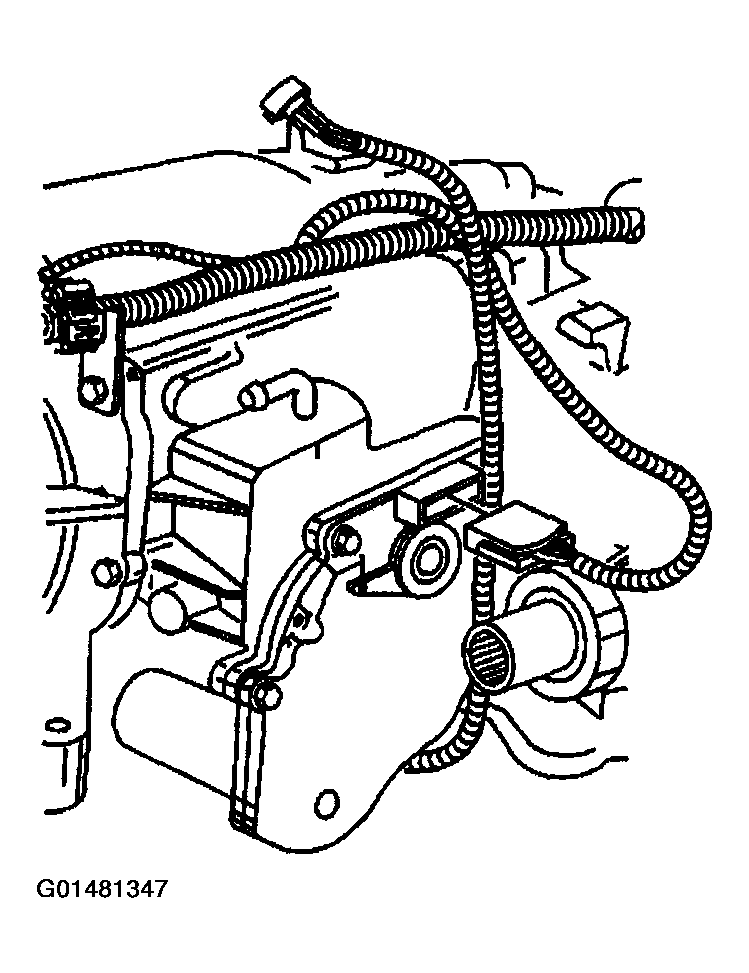

    Fig 2: Encoder Motor Electrical Connector
    G01481347Courtesy of GENERAL MOTORS CORP.
