Transfer Case Control Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

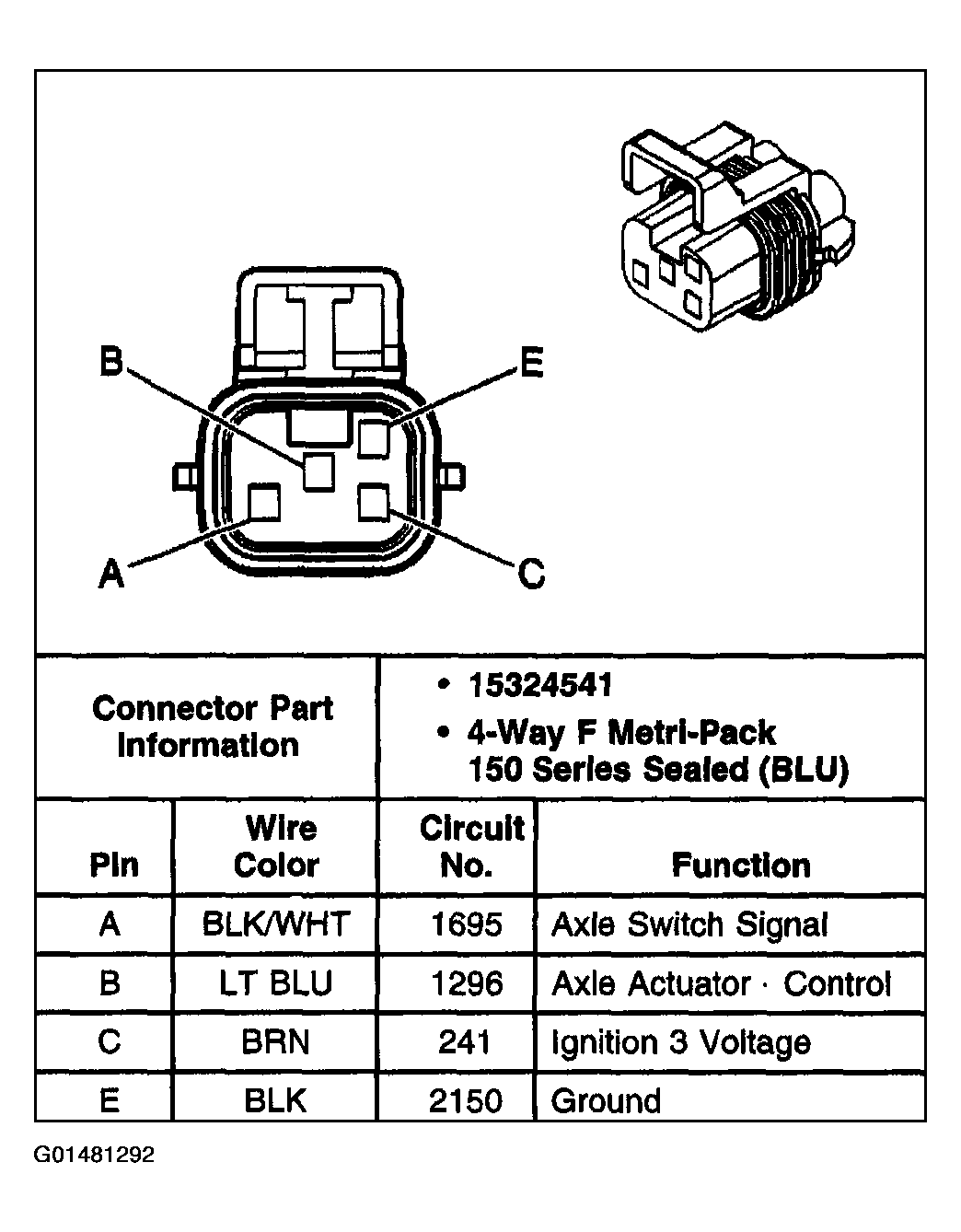

Fig 1: Front Axle Actuator

G01481292

Courtesy of GENERAL MOTORS CORP.

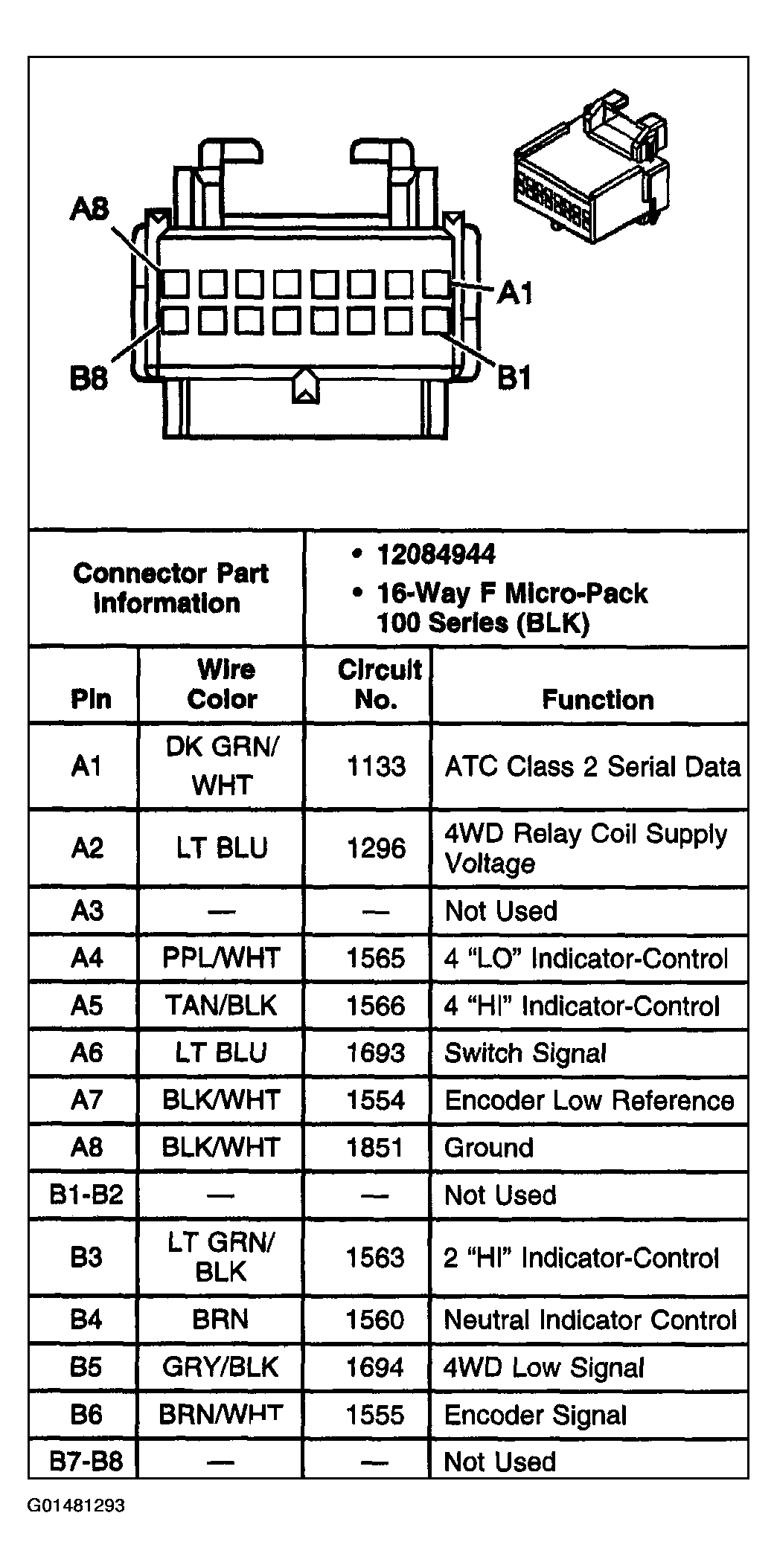

Fig 2: Transfer Case Shift Control Module - C1

G01481293

Courtesy of GENERAL MOTORS CORP.

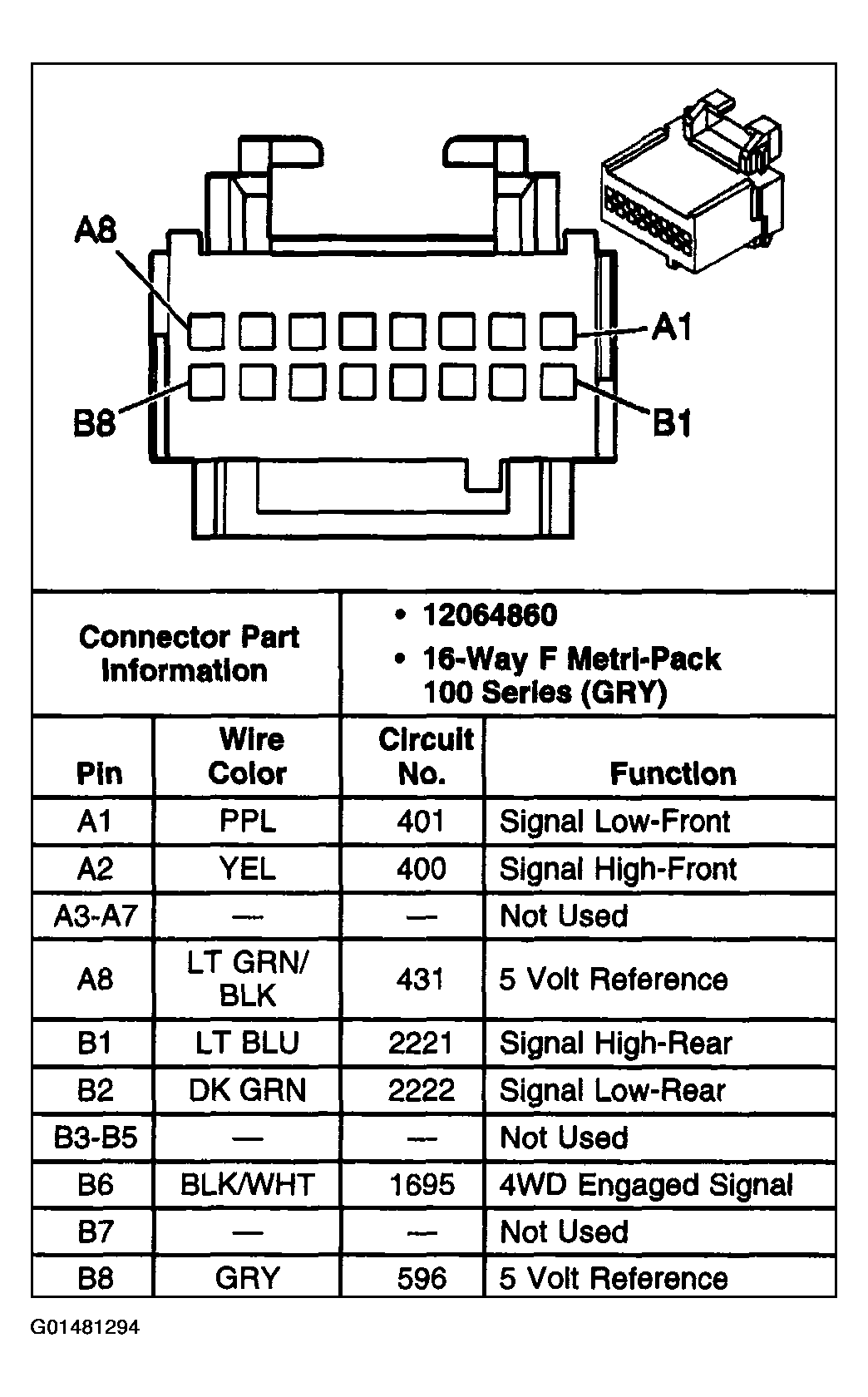

Fig 3: Transfer Case Shift Control Module - C2

G01481294

Courtesy of GENERAL MOTORS CORP.

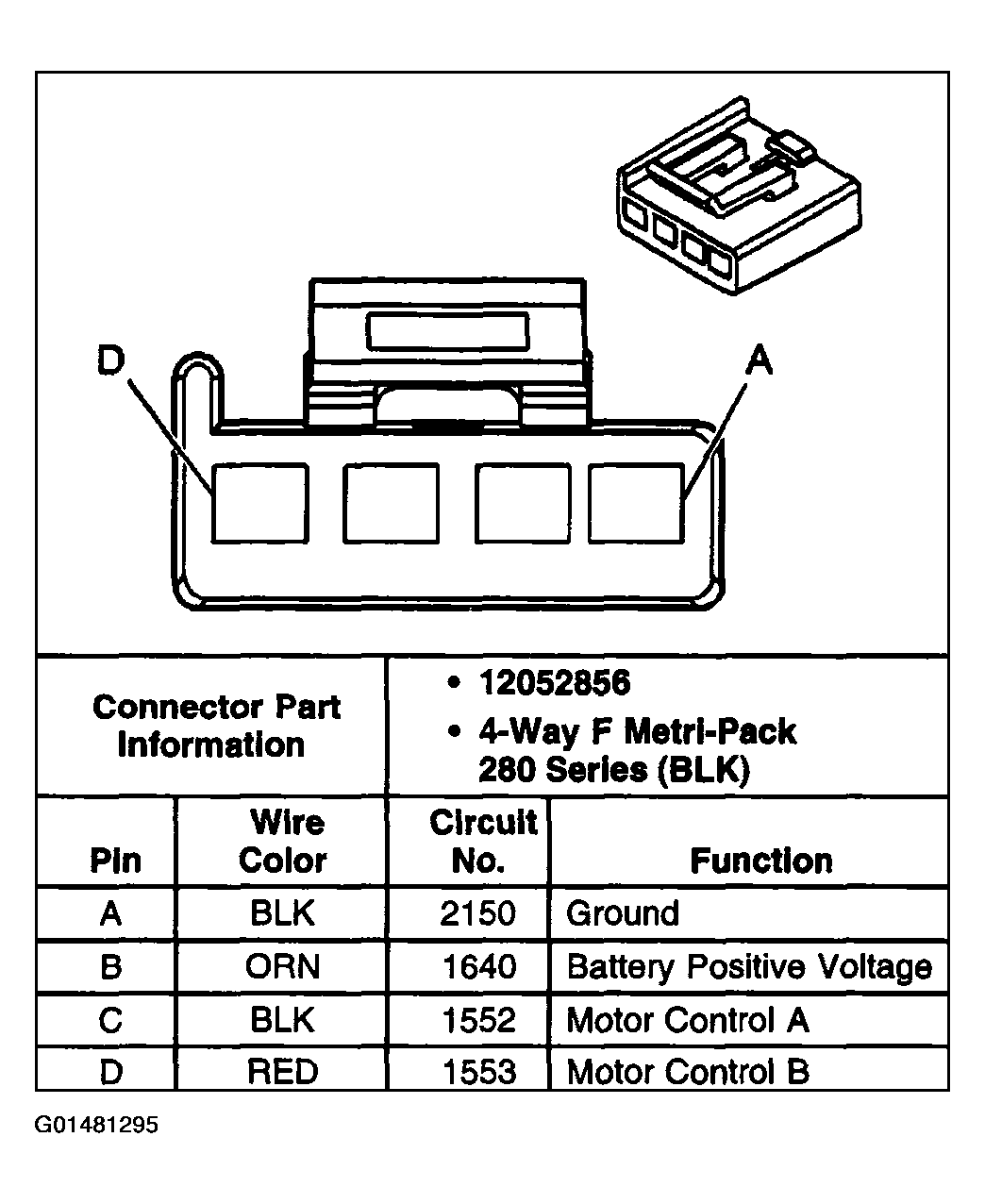

Fig 4: Transfer Case Shift Control Module - C3

G01481295

Courtesy of GENERAL MOTORS CORP.

Fig 5: Transfer Case Shift Control Switch - C1

G01481296

Courtesy of GENERAL MOTORS CORP.

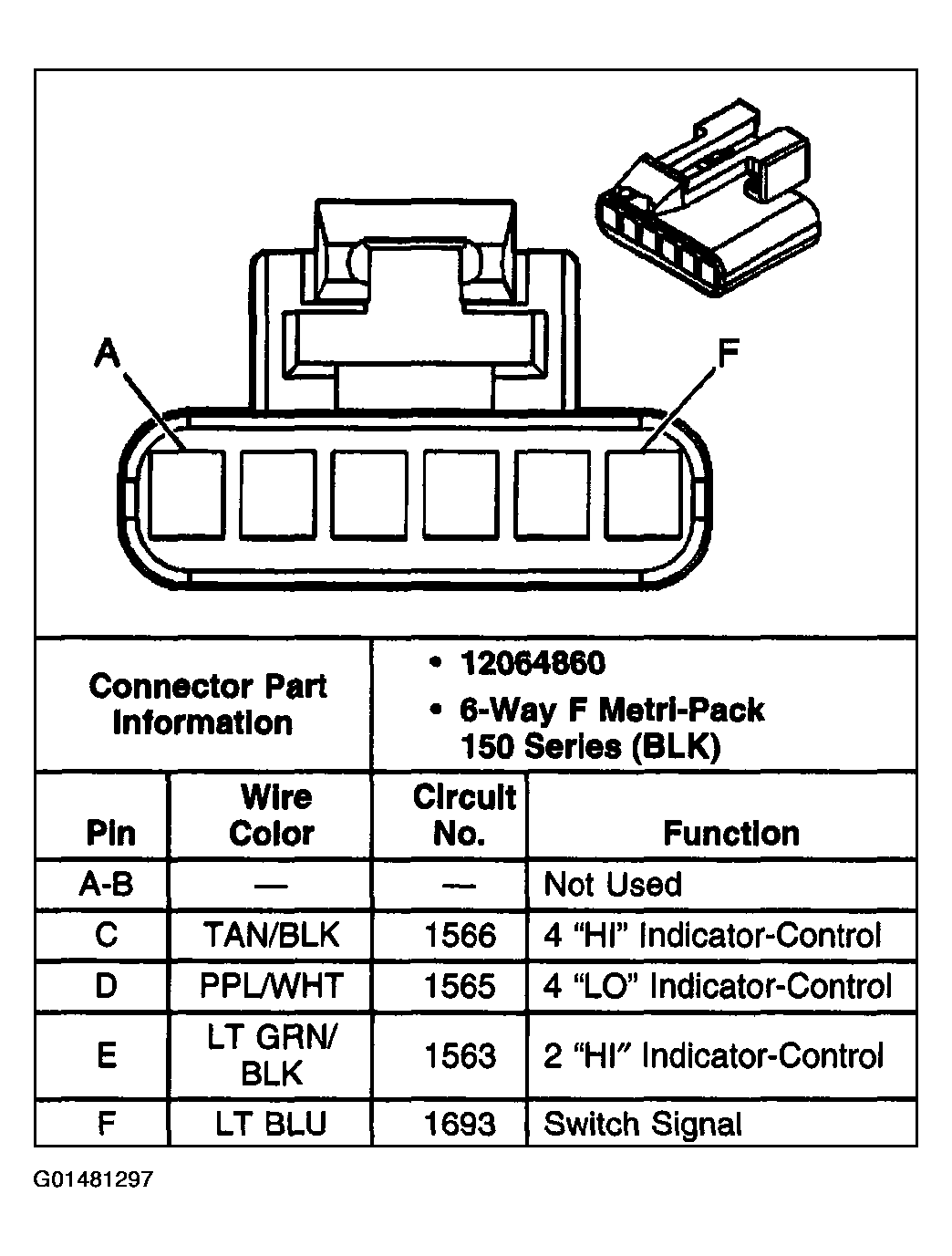

Fig 6: Transfer Case Shift Control Switch - C2

G01481297

Courtesy of GENERAL MOTORS CORP.

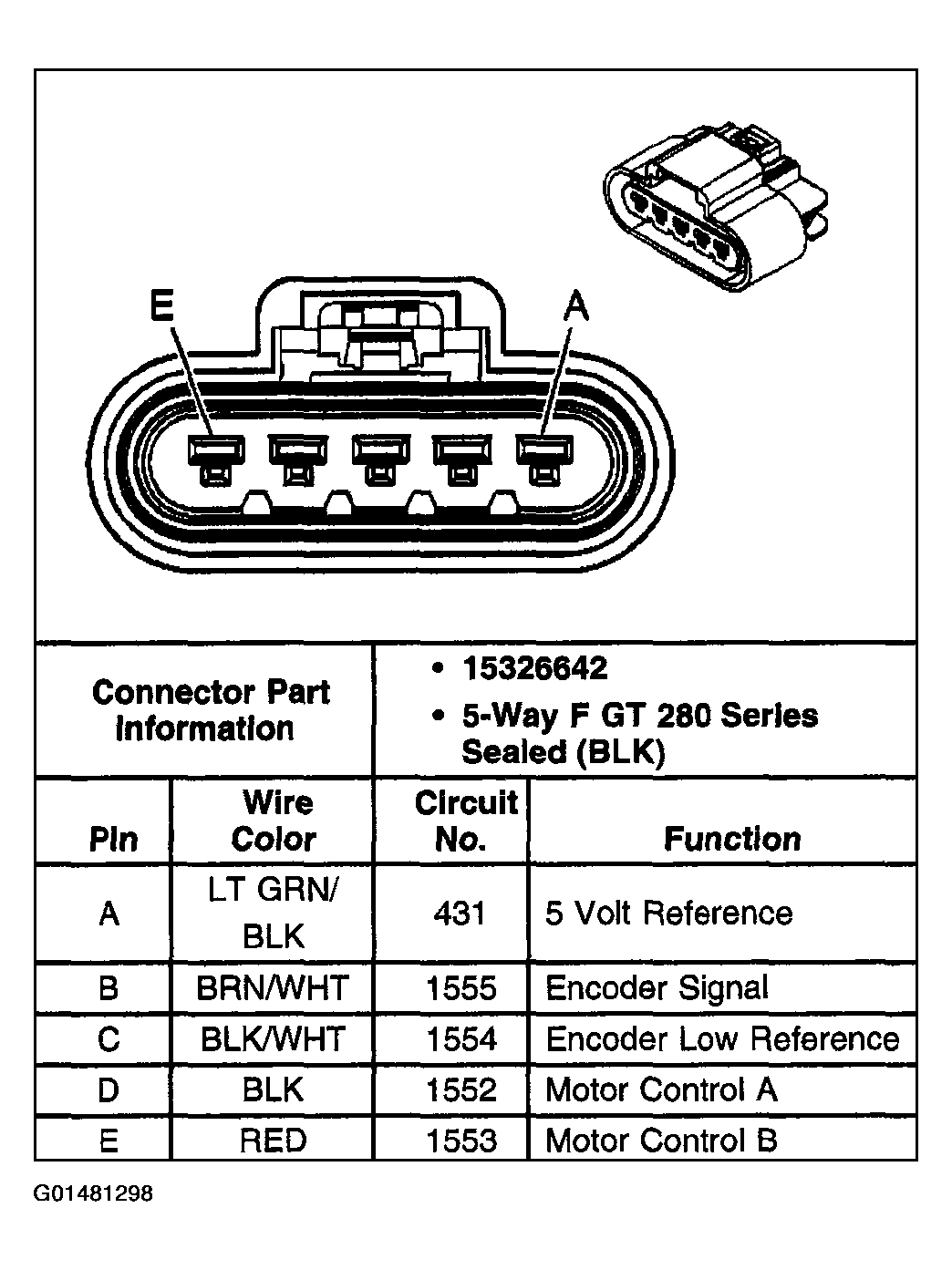

Fig 7: Transfer Case Encoder Motor

G01481298

Courtesy of GENERAL MOTORS CORP.
