Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the vehicle is a 2500 series, position the transfer case shield, if equipped.
  2. Install the transfer case shield screws.

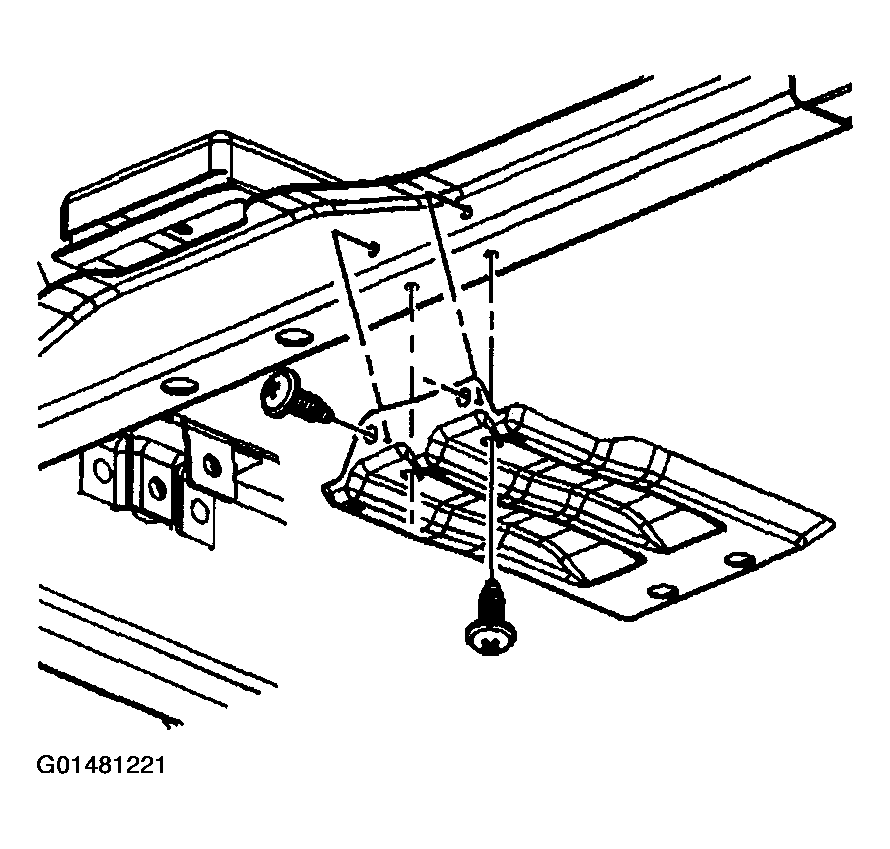

    Fig 1: Transfer Case Shield & Screws
    G01481221Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is a 1500 series, position the transfer case shield, if equipped.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the transfer case shield bolts, if equipped.

    Tighten

    Tighten the bolts/screws to 20 N.m (15 lb ft).

  5. Lower the vehicle.
    Fig 2: Transfer Case Shield Bolts
    G01481222Courtesy of GENERAL MOTORS CORP.
