Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the gear indicator switch.

    Tighten

    Tighten the switch to 27 N.m (20 lb ft).

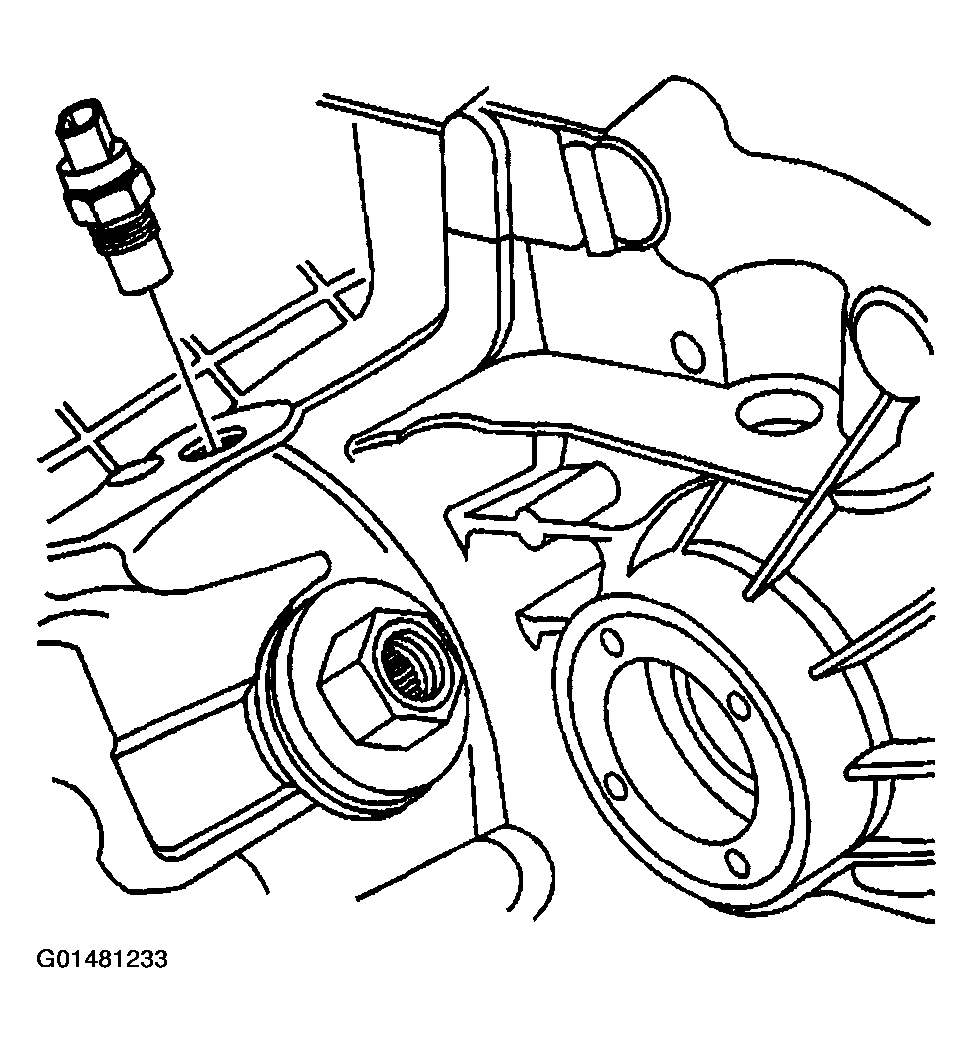

    Fig 1: Gear Indicator Switch
    G01481233Courtesy of GENERAL MOTORS CORP.
  2. Connect the gear indicator switch electrical connector (2).
  3. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .

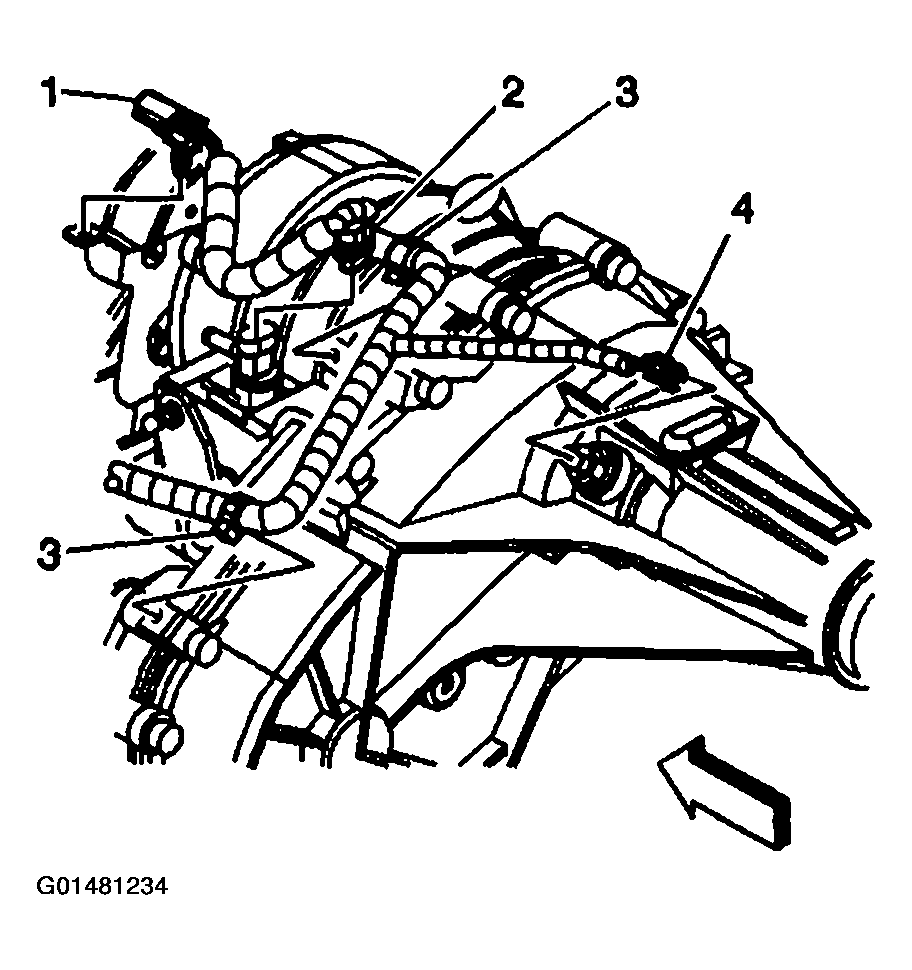

    Fig 2: Gear Indicator Switch Electrical Connector
    G01481234Courtesy of GENERAL MOTORS CORP.
