Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When performing the following service procedures, use only hand tools in order to remove and install the fill or drain plugs. Always start the plugs by hand in order to prevent cross threading.
  1. Remove the transfer case shield, if equipped. Refer to Transfer Case Fluid Replacement .
  2. Remove the fill plug.
    Fig 1: Fill Plug
    G01481223Courtesy of GENERAL MOTORS CORP.
  3. Remove the drain plug.

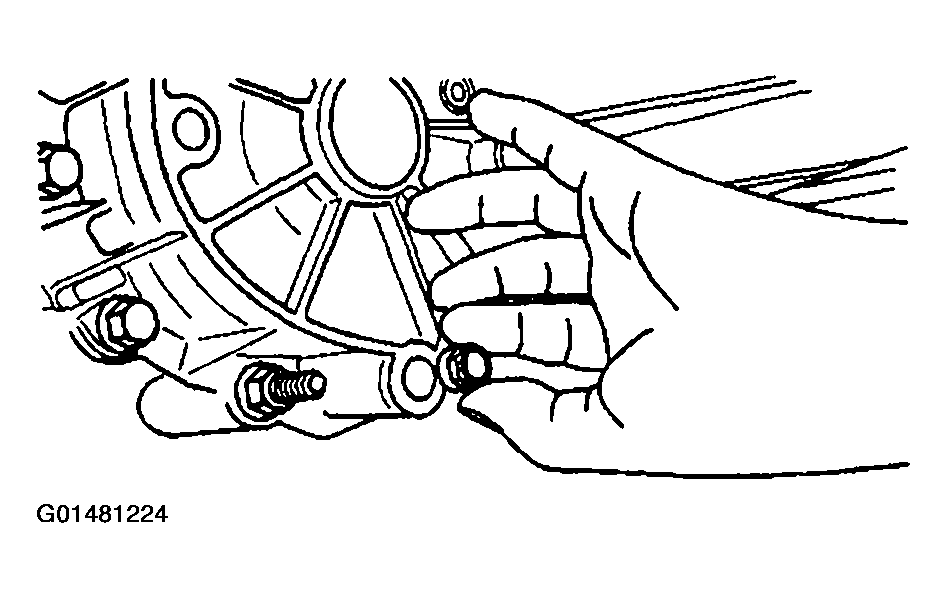

Fig 2: Drain Plug
G01481224Courtesy of GENERAL MOTORS CORP.
