Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
IMPORTANT: If the drain or fill plug have to be replaced, use only aluminum replacement drain plugs. Steel plugs will react with the magnesium of the transfer case.
  1. Install the drain plug.

    Tighten

    Tighten the plug to 20 N.m (15 lb ft).

  2. Fill the transfer case to the bottom of the fill plug hole with the approved transfer case fluid.

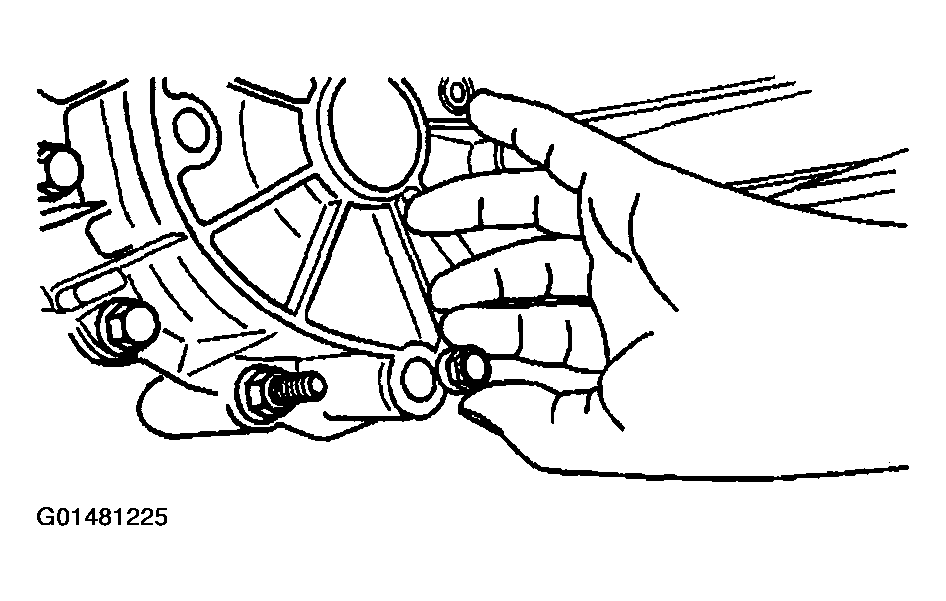

    Fig 1: Drain Plug
    G01481225Courtesy of GENERAL MOTORS CORP.
  3. Install the fill plug.

    Tighten

    Tighten the Plug to 20 N.m (15 lb ft).

  4. Install the transfer case shield, if equipped. Refer to Transfer Case Fluid Replacement .
    Fig 2: Fill Plug
    G01481226Courtesy of GENERAL MOTORS CORP.
