Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Before installing a NEW control rod, loosen the adjusting bolt on the control rod so it slides with slight resistance.
  • When, installing the control rod on the control levers, a snapping should be heard or felt upon installation.
  1. Install the control rod onto the control lever first.

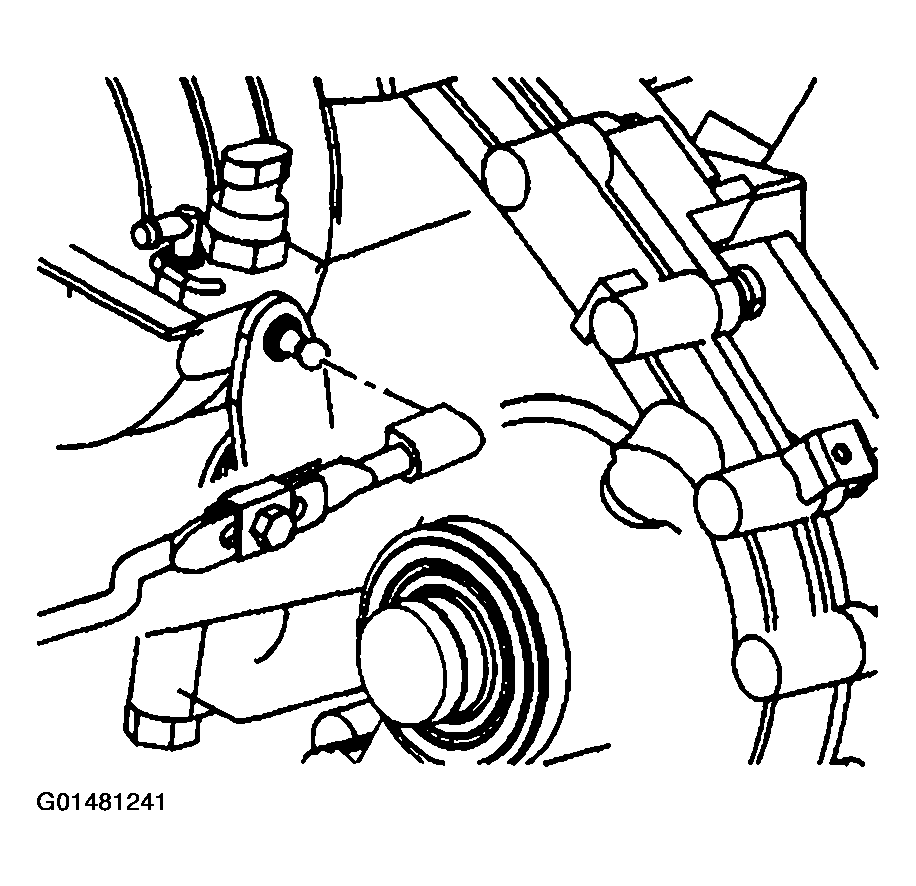

    2. Fig 1: Control Rod & Lever
    G01481241Courtesy of GENERAL MOTORS CORP.
  2. Slide the control rod forward.
  3. Install the control rod onto the shift control lever.

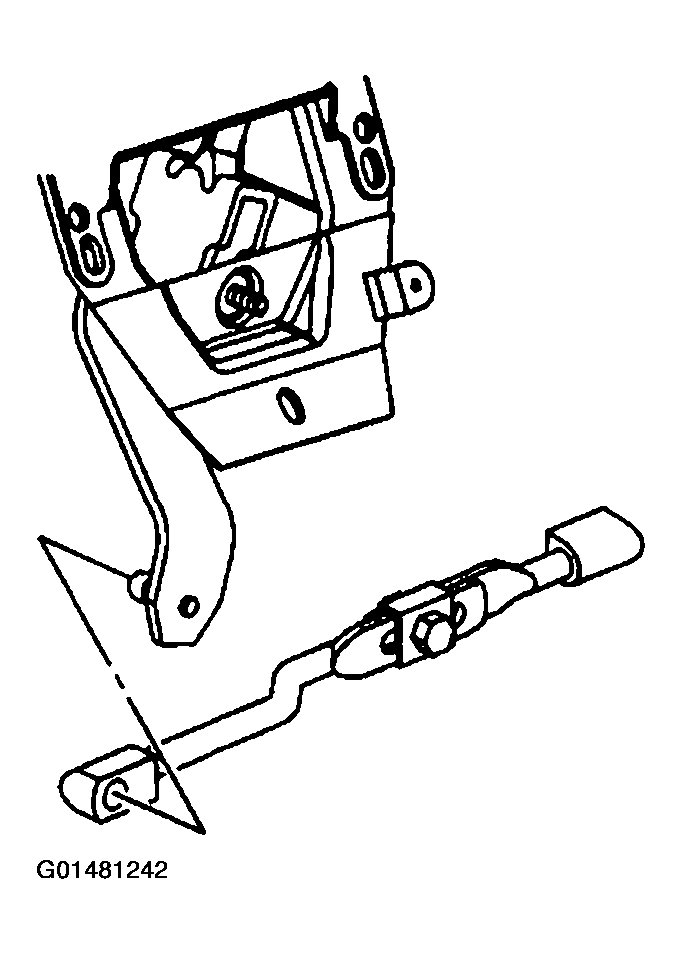

    Fig 2: Control Rod & Shift Control Lever
    G01481242Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Tighten the control rod adjusting bolt.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

  5. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT .
  6. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .

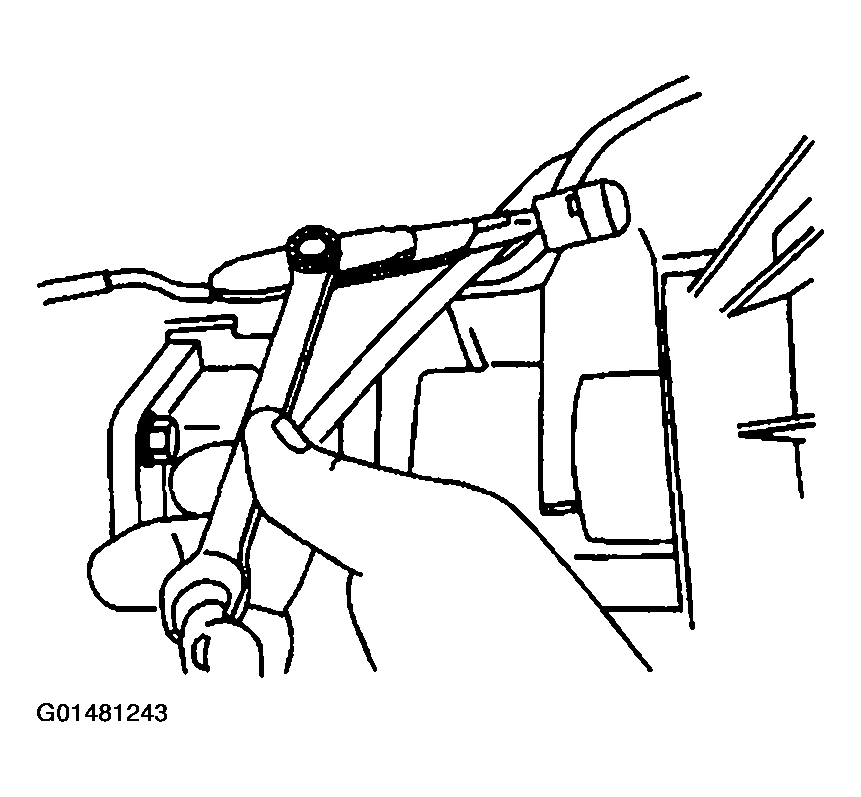

    Fig 3: Tightening Control Rod Adjusting Bolt
    G01481243Courtesy of GENERAL MOTORS CORP.
