Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped Refer to Transfer Case Fluid Replacement .
  2. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT .
  3. Remove the control rod. Refer to Transfer Case Control Rod Replacement .
  4. Lower the vehicle.
  5. Remove the control lever knob by performing the following:
    1. 5.1. Using an adjustable wrench, adjust the wrench to fit the control lever rod just below the knob.
    2. 5.2. With the adjustable wrench touching the control lever knob, gently tap on the adjustable wrench in an upward motion until the knob is separated from the control lever rod.
  6. Remove the transfer case bezel screws.
  7. Remove the transfer case bezel.

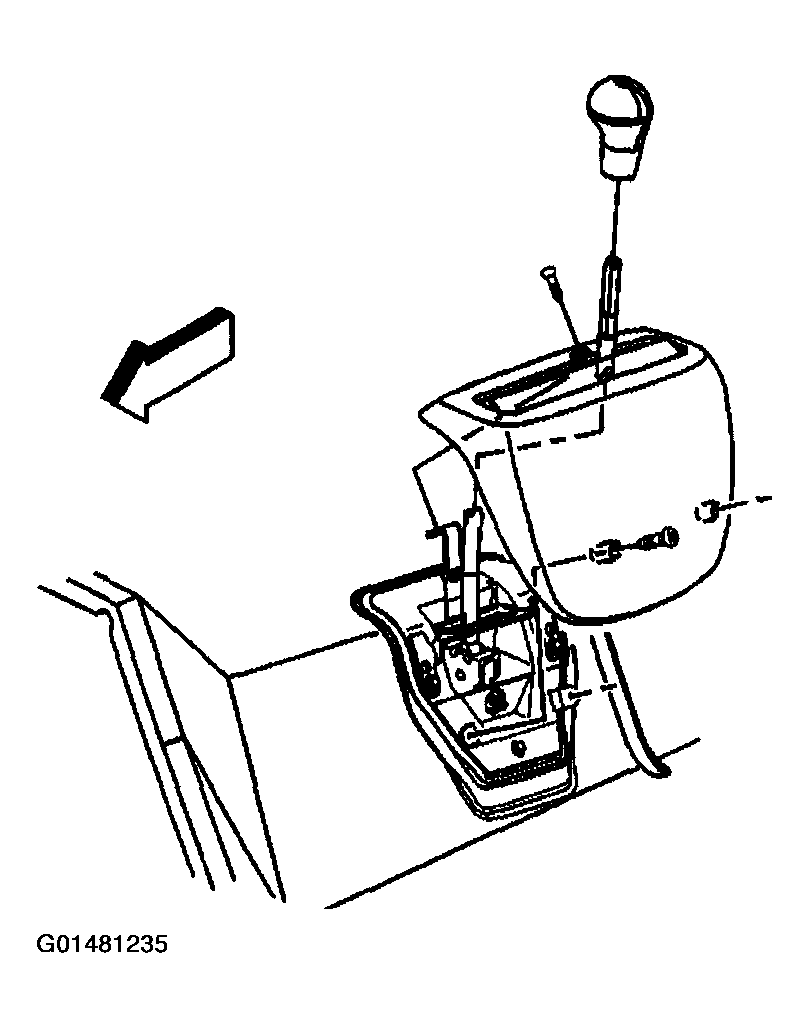

    Fig 1: Transfer Case Bezel, Screws & Control Lever Knob
    G01481235Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: When performing the following service procedure, the transfer case control lever bracket does not have to be removed from the vehicle.
  8. Remove the control lever bolts.
  9. Remove the control lever assembly.

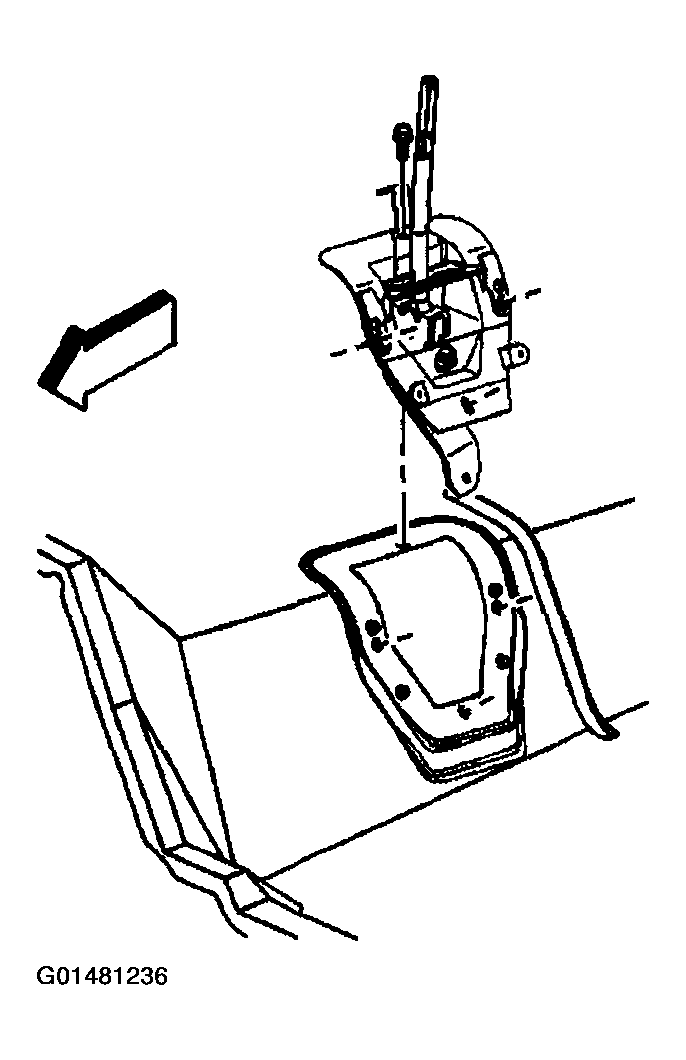

Fig 2: Control Lever Assembly & Bolts
G01481236Courtesy of GENERAL MOTORS CORP.
