Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the control lever assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the control lever bolts.

    Tighten

    Tighten the bolts to 12 N.m (106 lb in).

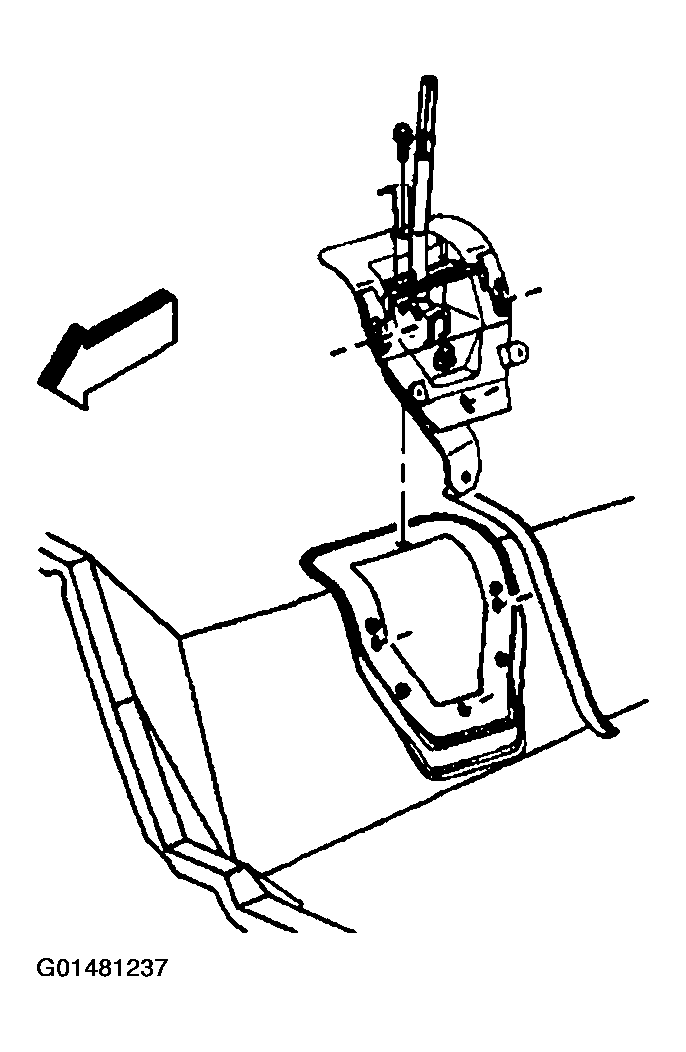

    Fig 1: Control Lever Assembly & Bolts
    G01481237Courtesy of GENERAL MOTORS CORP.
  3. Install the control lever bezel.
  4. Install the control lever bezel screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in)

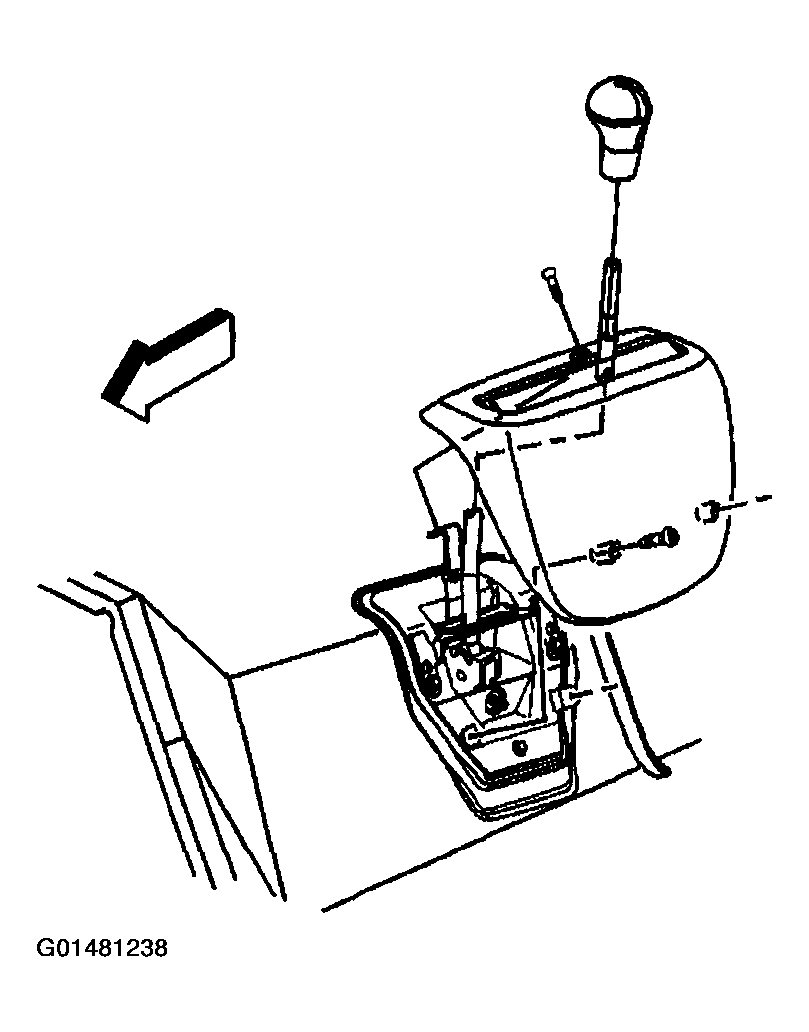

    Fig 2: Control Lever Bezel, Screws & Control Lever Knob
    G01481238Courtesy of GENERAL MOTORS CORP.
  5. Install the control lever knob.
  6. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .
  7. Install the shift control rod, refer to Transfer Case Control Rod Replacement .
  8. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT-FRONT .
  9. Install the transfer case shield, if equipped, Refer to Transfer Case Fluid Replacement .
