Transfer Case Control Schematics

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

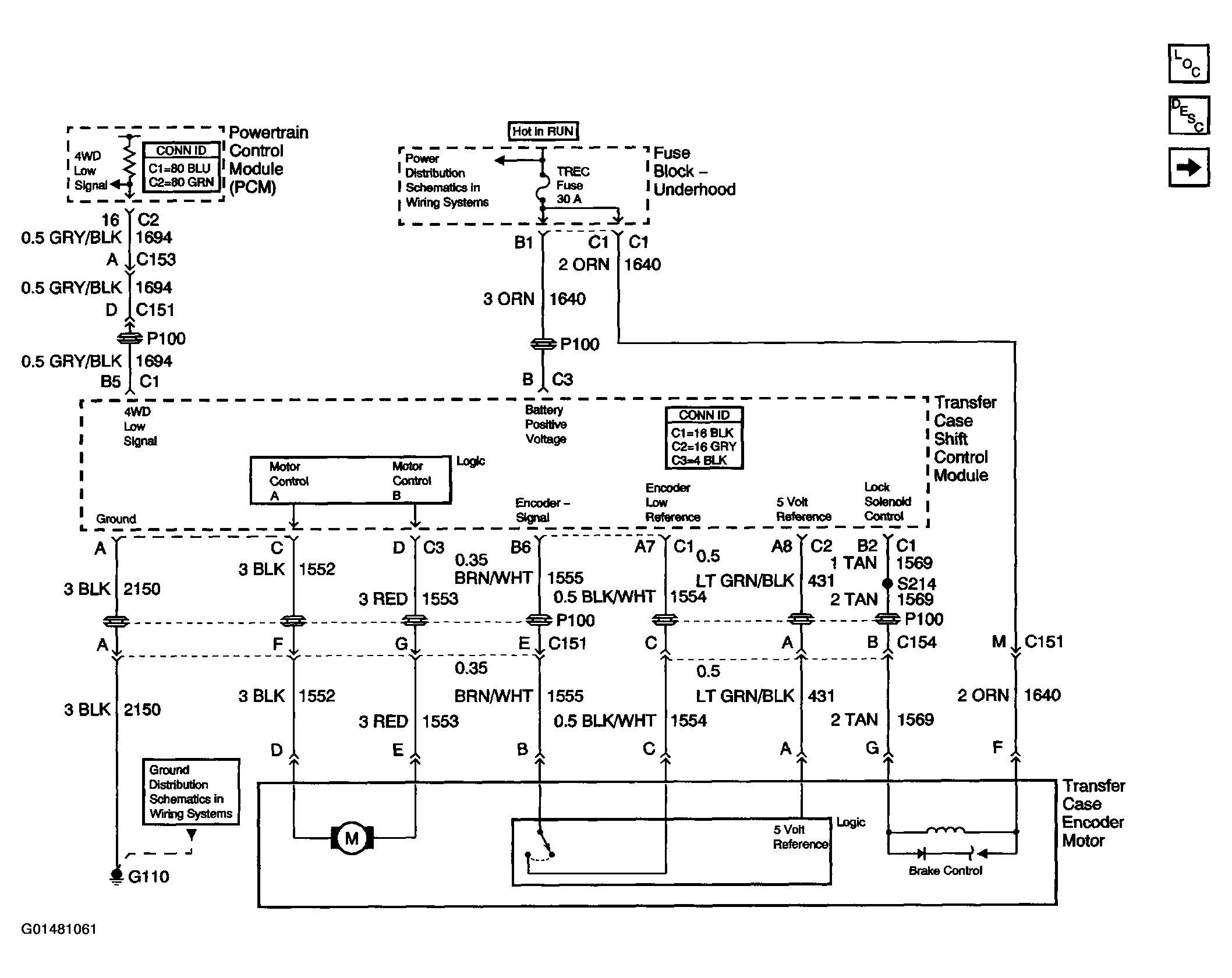

Fig 1: Transfer Case Control Schematic Diagram (Power, Ground & Transfer Case Encoder Motor)

Courtesy of GENERAL MOTORS CORP.

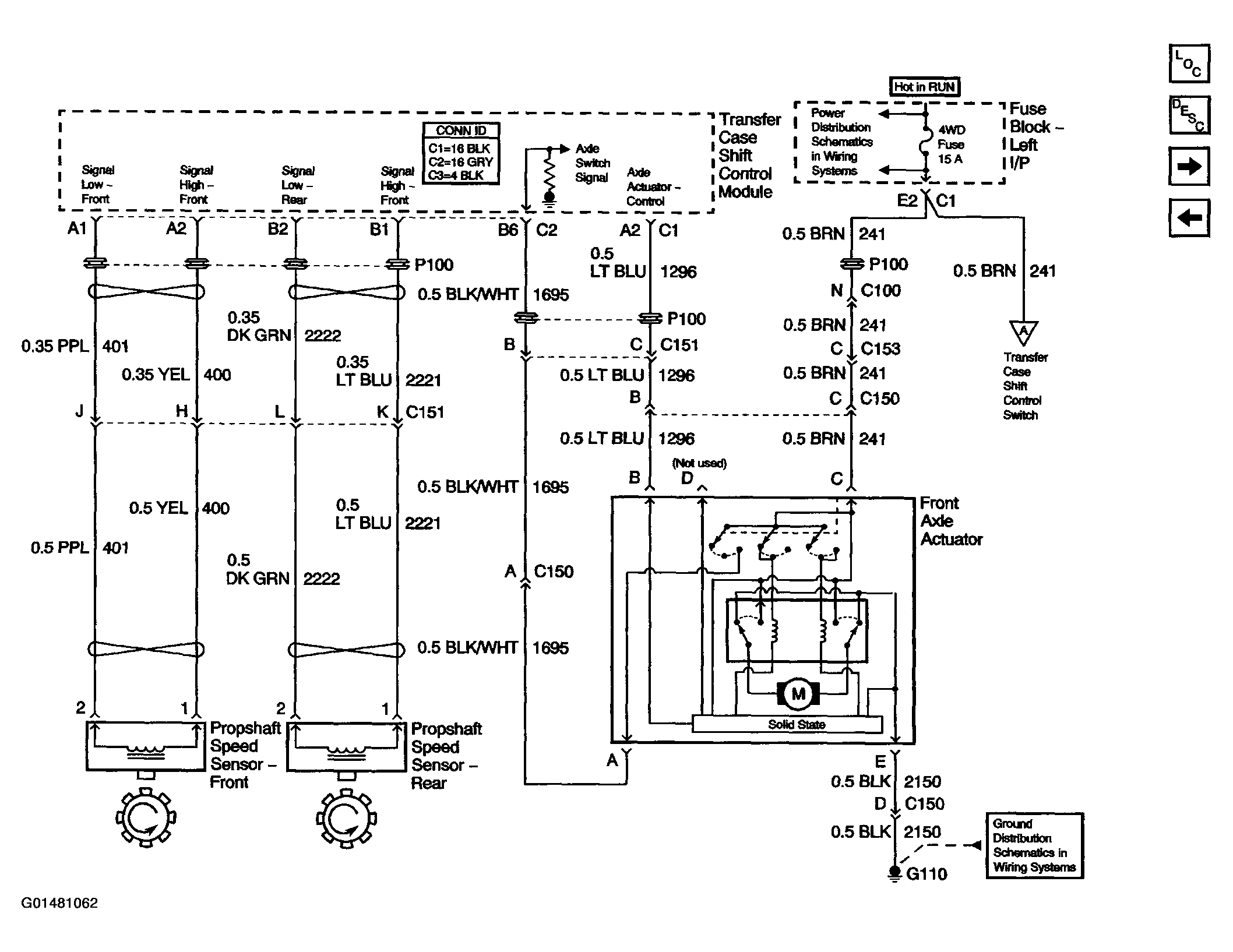

Fig 2: Transfer Case Control Schematic Diagram (Propshaft Speed Sensors & Front Axle Actuator)

Courtesy of GENERAL MOTORS CORP.

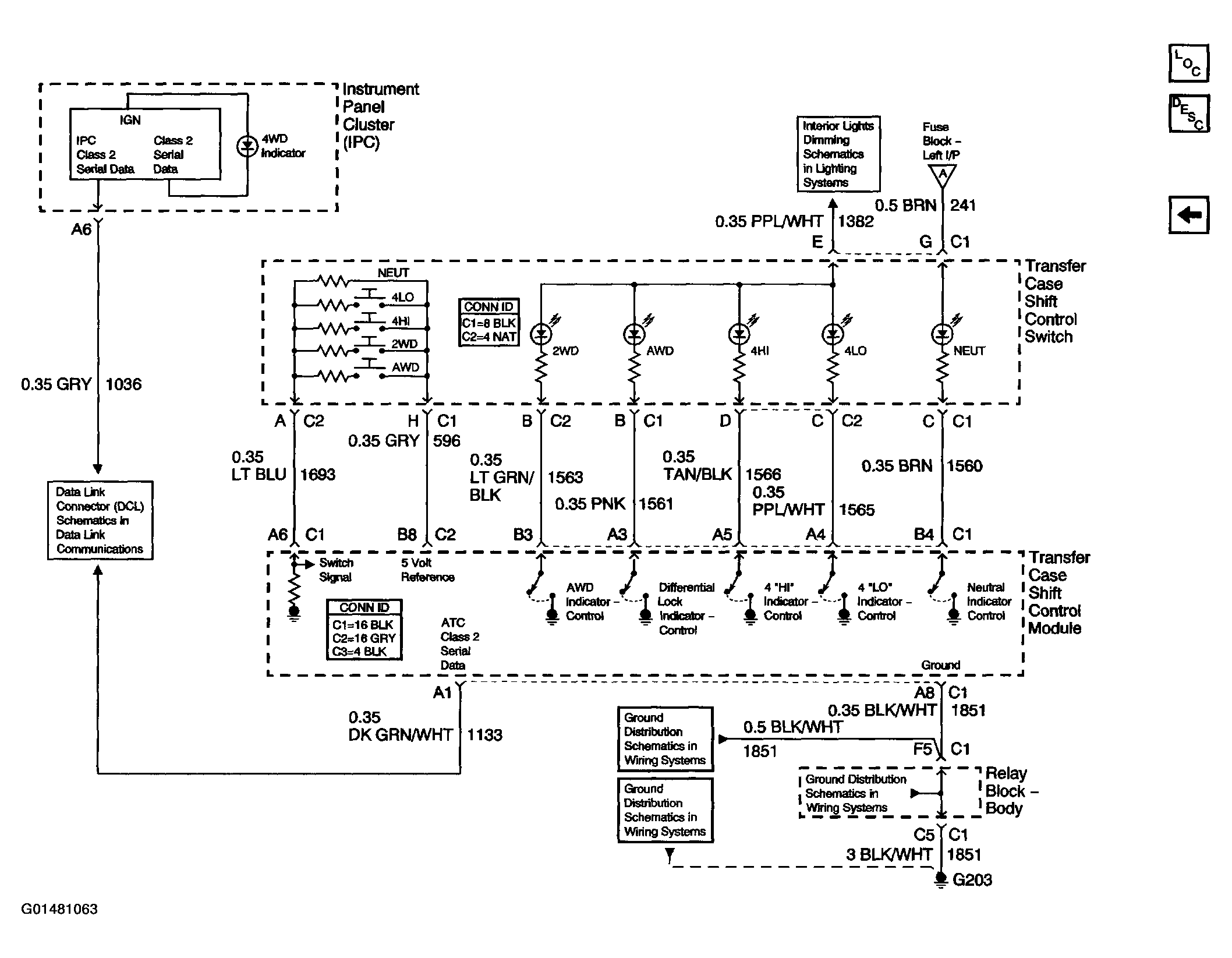

Fig 3: Transfer Case Control Schematic Diagram (Switch Controls & Class 2 Serial Data)

Courtesy of GENERAL MOTORS CORP.
