Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .
  2. Disconnect the front speed sensor electrical connector (5).

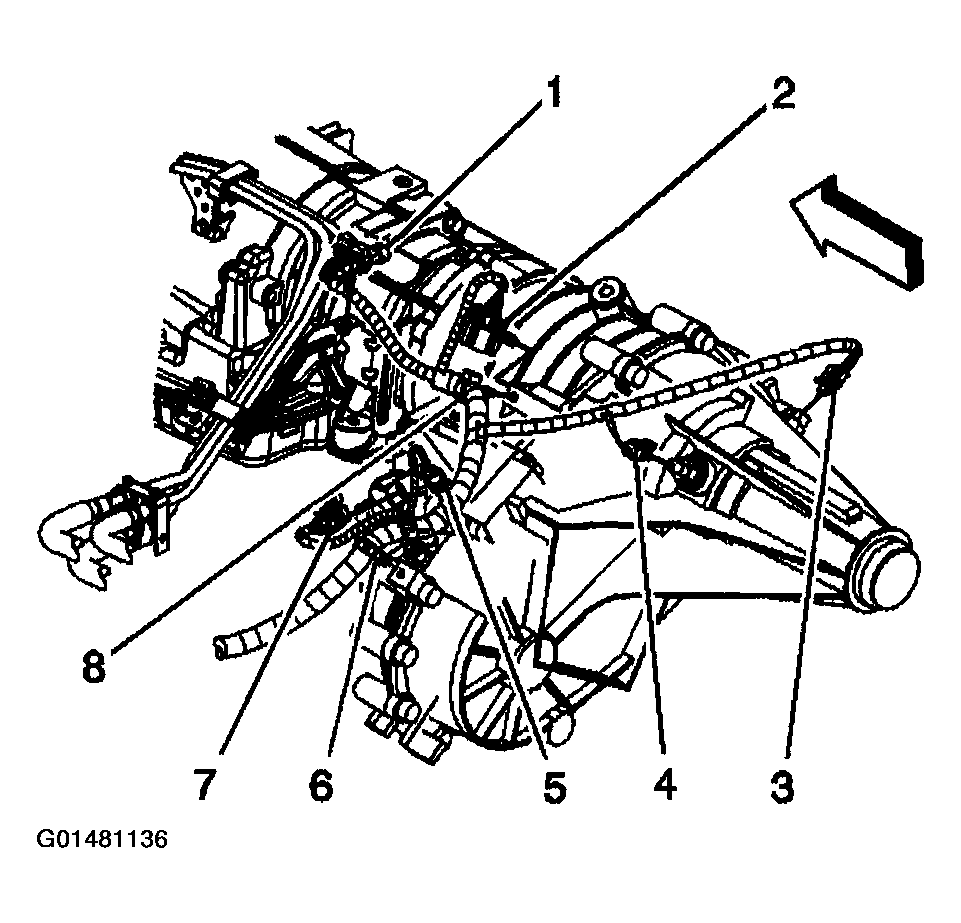

    Fig 1: Front Speed Sensor Electrical Connector
    G01481136Courtesy of GENERAL MOTORS CORP.
  3. Remove the front speed sensor.

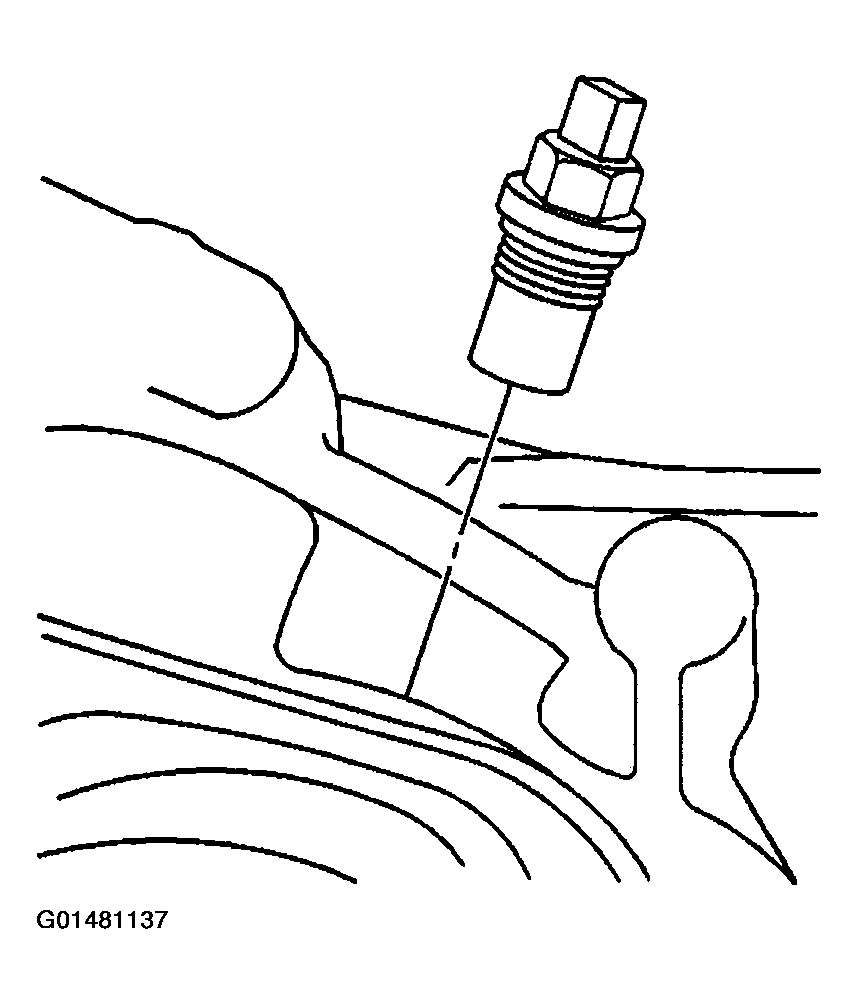

    Fig 2: Front Speed Sensor
    G01481137Courtesy of GENERAL MOTORS CORP.
