Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the front speed sensor.

    Tighten

    Tighten the speed sensor to 15 N.m (11 lb ft).

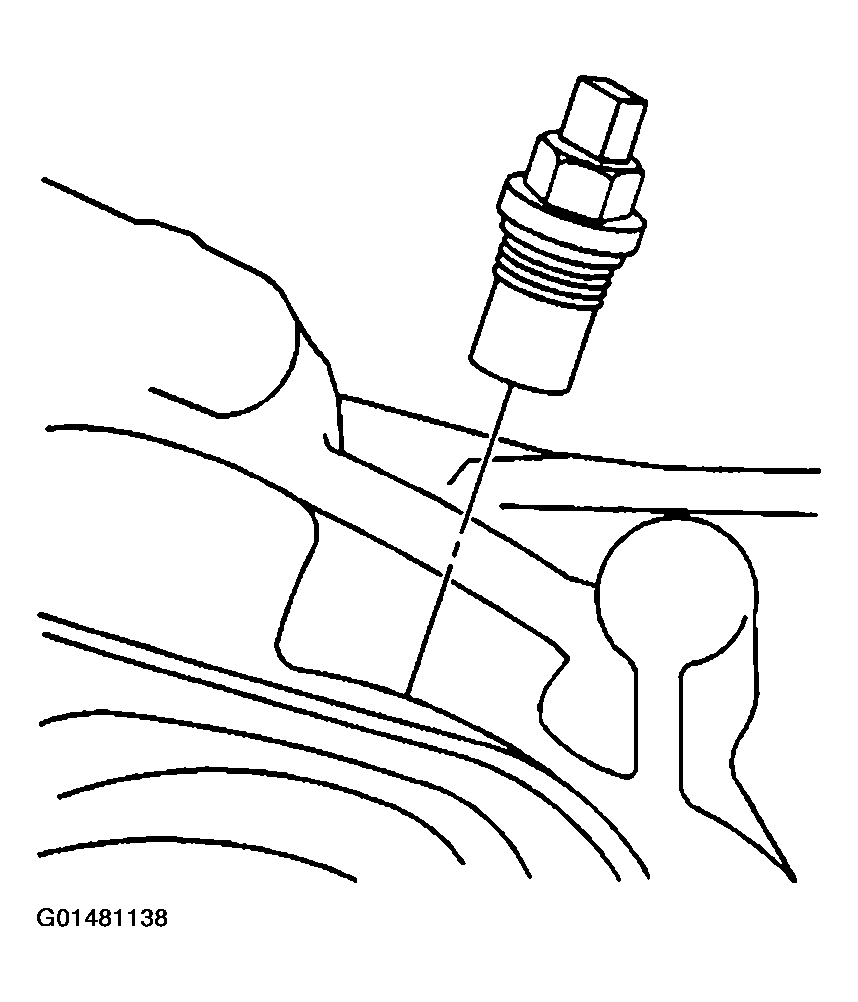

    Fig 1: Front Speed Sensor
    G01481138Courtesy of GENERAL MOTORS CORP.
  2. Connect the front speed sensor electrical connector (5).
  3. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .

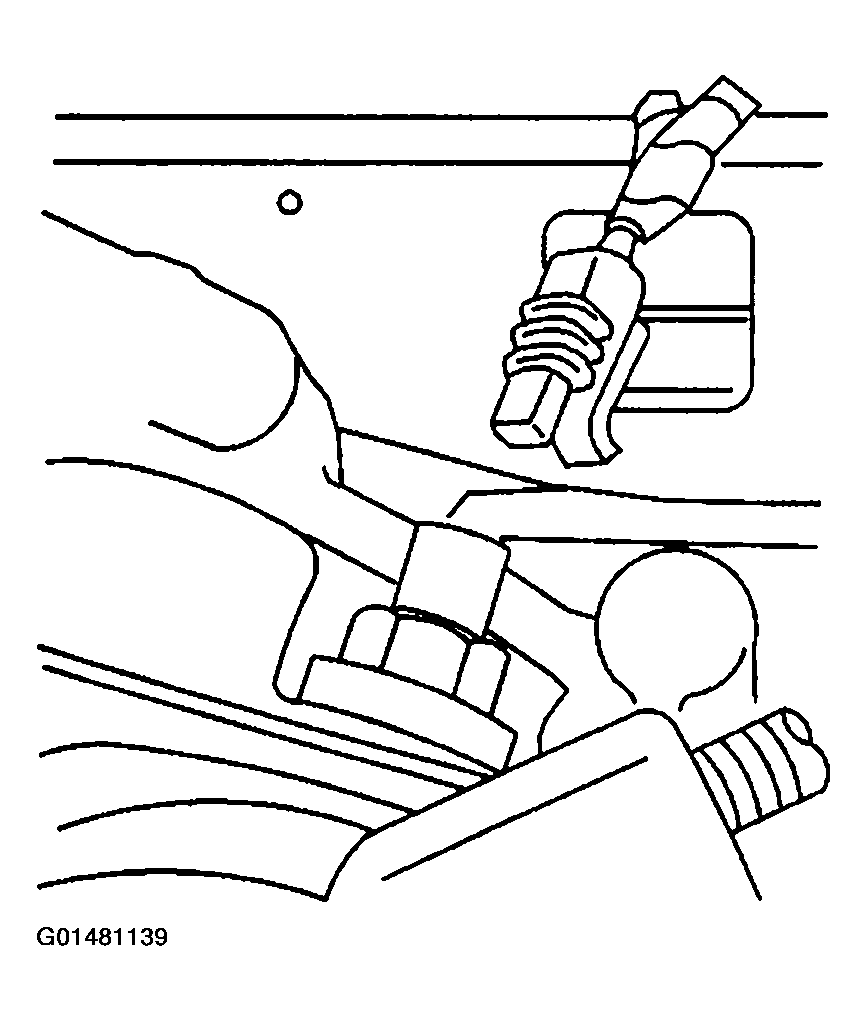

    Fig 2: Front Speed Sensor Electrical Connector
    G01481139Courtesy of GENERAL MOTORS CORP.
