Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Using a flat-tipped screwdriver, gently pry the retaining clips open on the housing.
  3. Slide out the selector switch until the electrical connector are accessible.
  4. Disconnect the selector switch electrical connectors (2, 3).

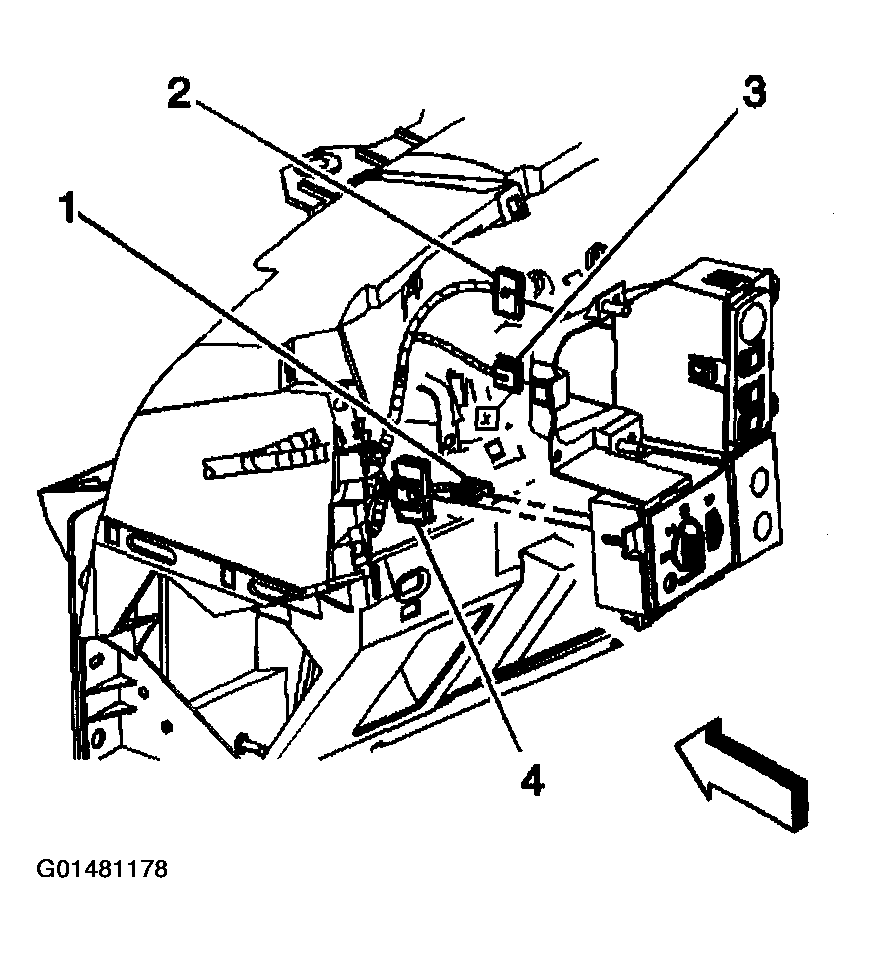

    Fig 1: Selector Switch Electrical Connectors
    G01481178Courtesy of GENERAL MOTORS CORP.
  5. Remove the selector switch from the housing.

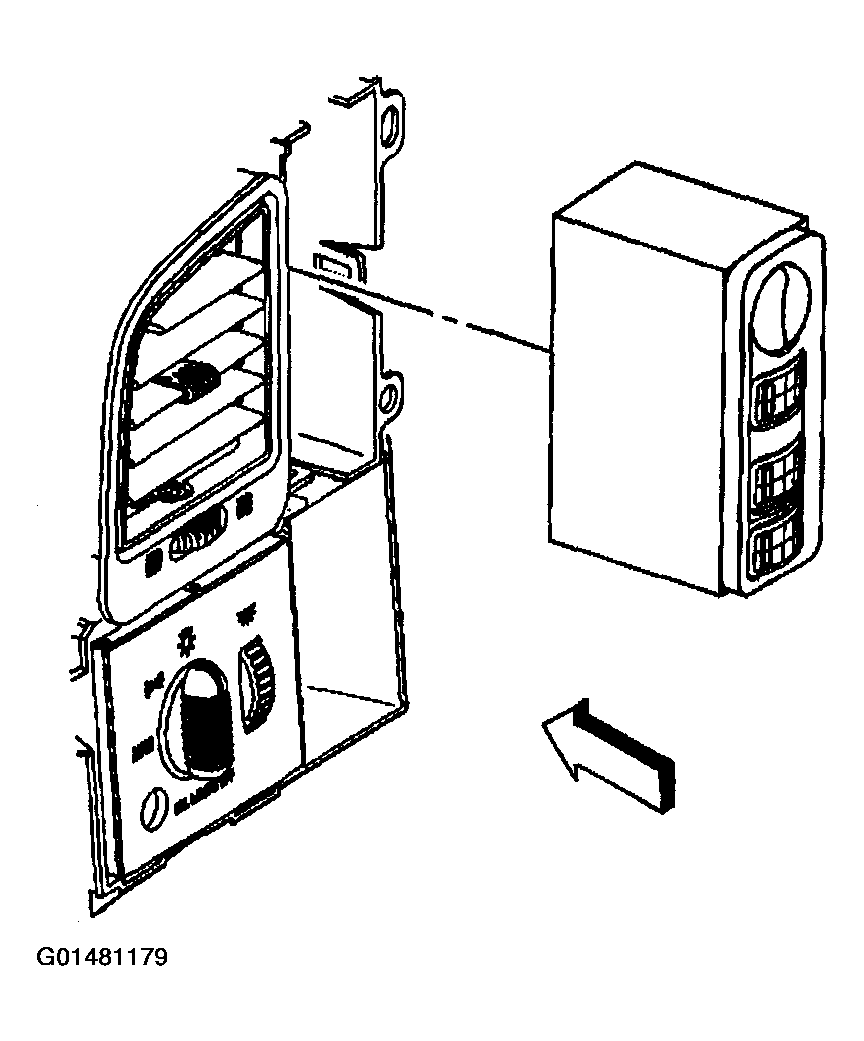

    Fig 2: Selector Switch
    G01481179Courtesy of GENERAL MOTORS CORP.
