Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the selector switch close to the housing so the electrical connectors can be connected.

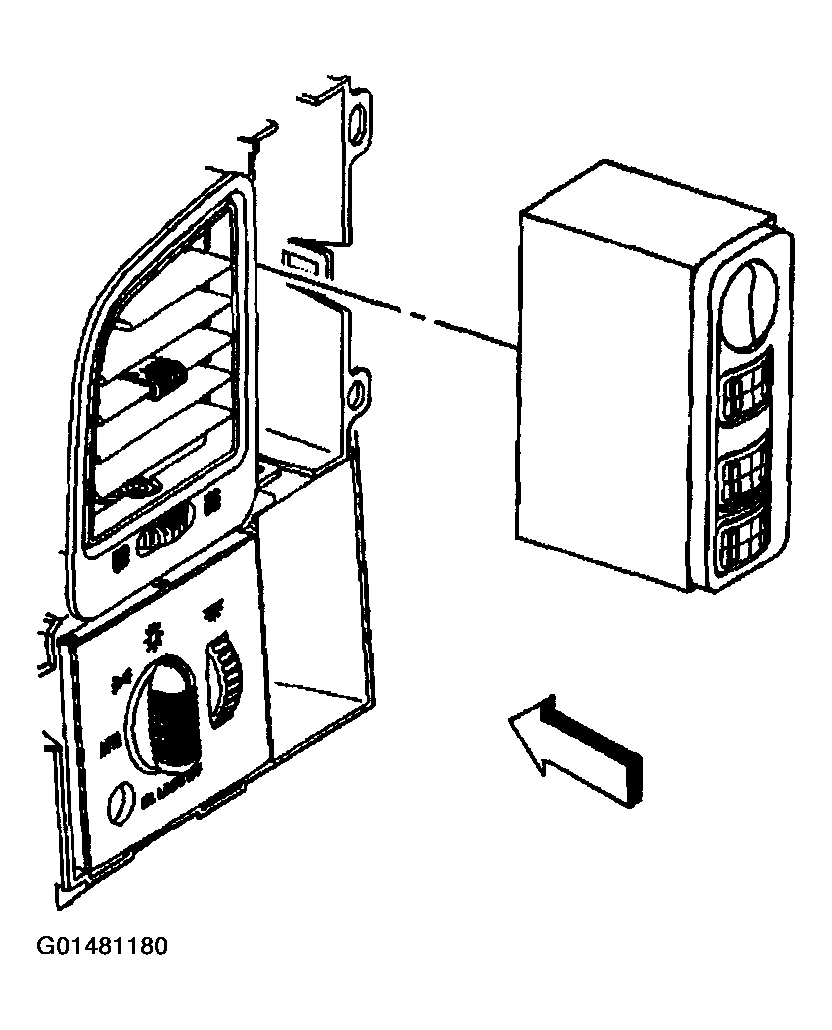

    Fig 1: Selector Switch
    G01481180Courtesy of GENERAL MOTORS CORP.
  2. Connect the selector switch electrical connectors (2, 3).
  3. Slide the selector switch into the housing until the switch snaps into place.
    IMPORTANT: Make sure that the selector switch is seated properly in the housing before installing the I/P cluster bezel.
  4. Install the I/P cluster bezel. Refer to BEZEL REPLACEMENT-INSTRUMENT PANEL (I/P) CLUSTER  .

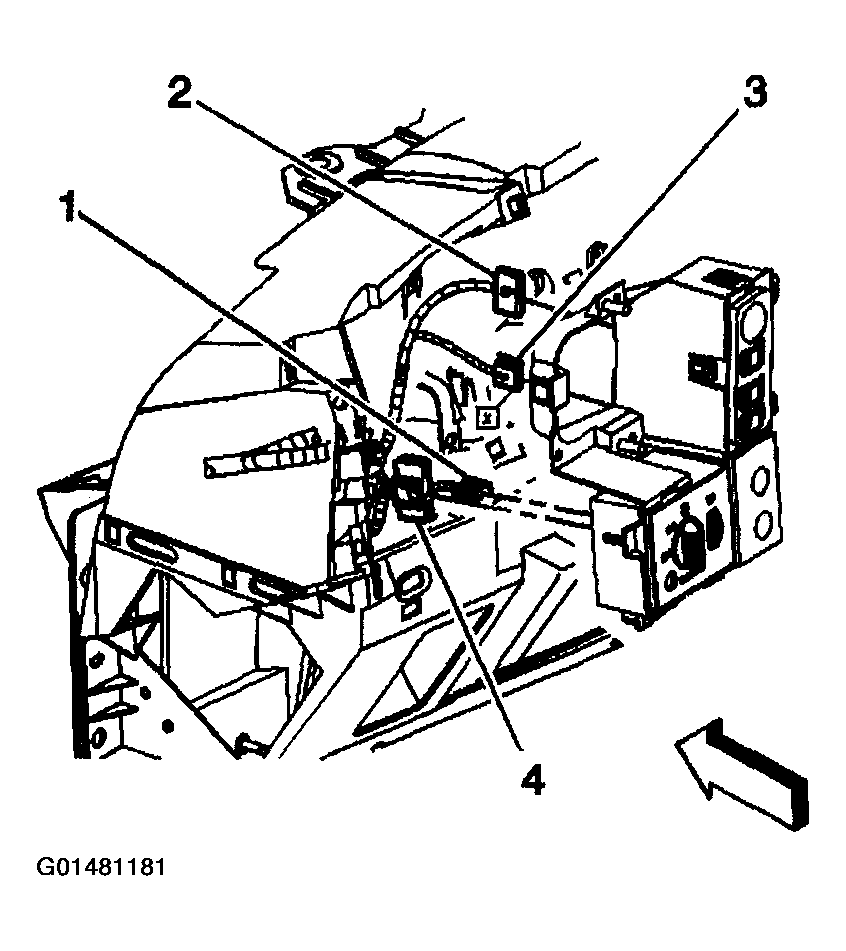

    Fig 2: Selector Switch Electrical Connectors
    G01481181Courtesy of GENERAL MOTORS CORP.
