Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift control module to the bracket.

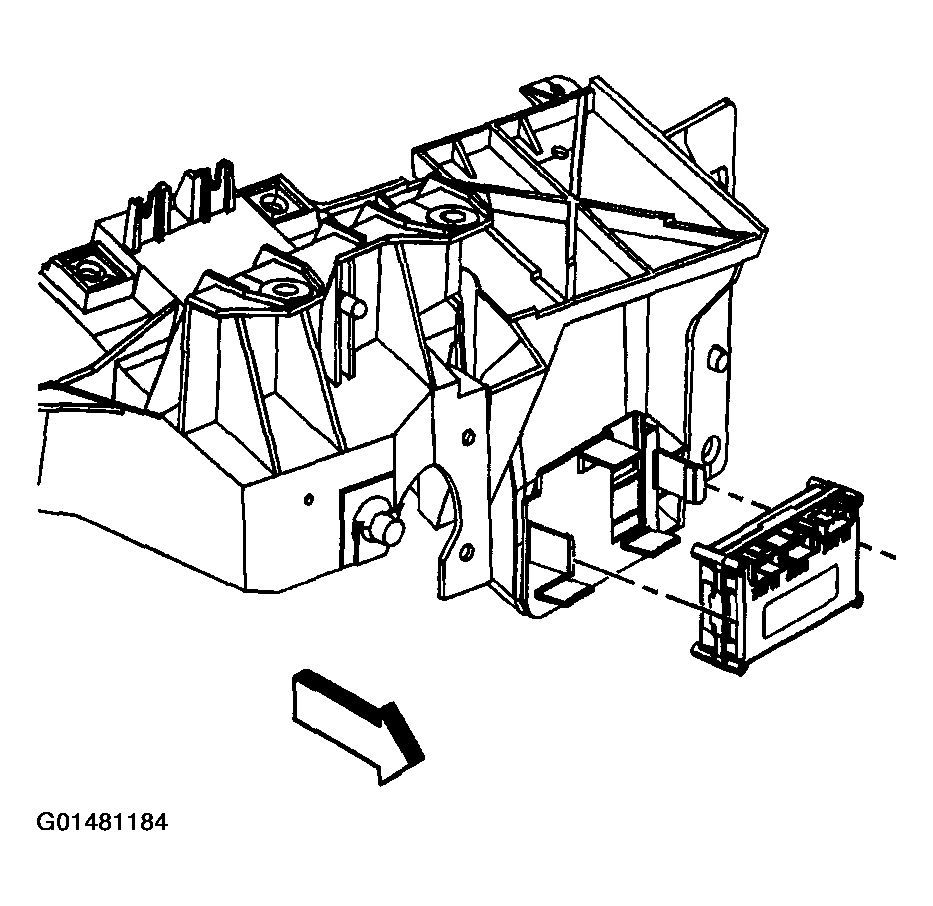

    Fig 1: Shift Control Module
    G01481184Courtesy of GENERAL MOTORS CORP.
  2. Connect the shift control module electrical connectors.
  3. Start the engine and test the automatic transfer case system for proper shift operation.

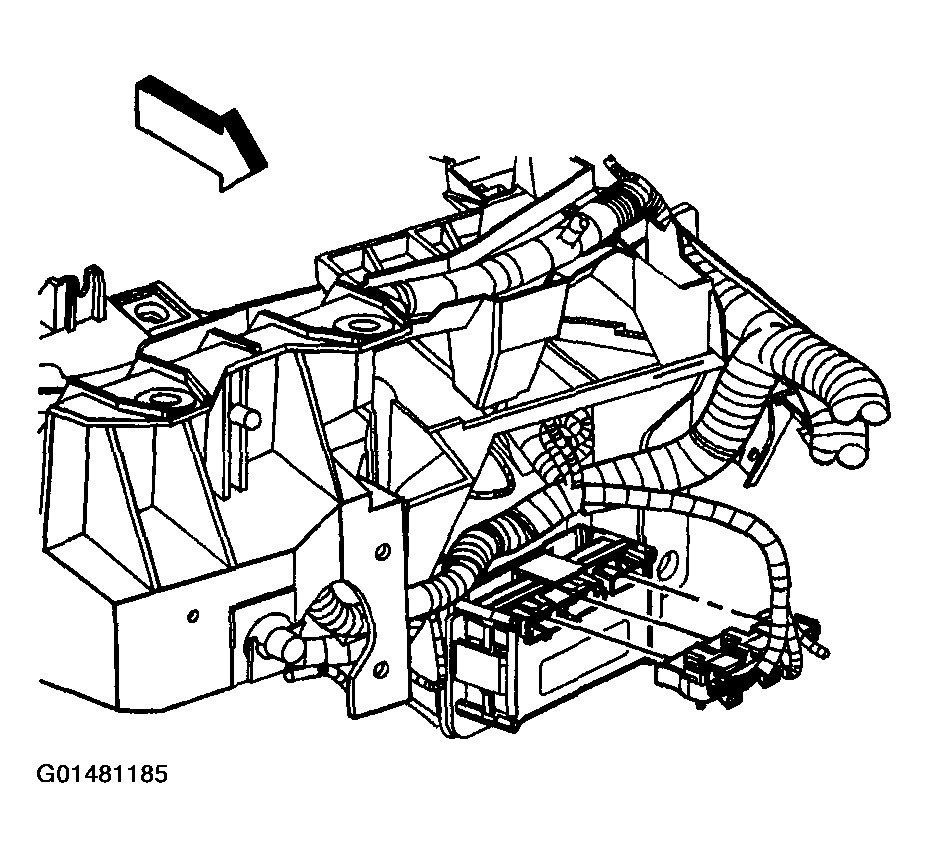

    Fig 2: Shift Control Module Electrical Connectors
    G01481185Courtesy of GENERAL MOTORS CORP.
