Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .
  2. If the vehicle is a 1500 series, remove the transfer case shield bolts, if equipped.
  3. Remove the transfer case shield, if equipped.
    Fig 1: Transfer Case Bolts
    G01481124Courtesy of GENERAL MOTORS CORP.
  4. If the vehicle is a 2500 series, remove the transfer case shield screws, if equipped.
  5. Remove the transfer case shield, if equipped.

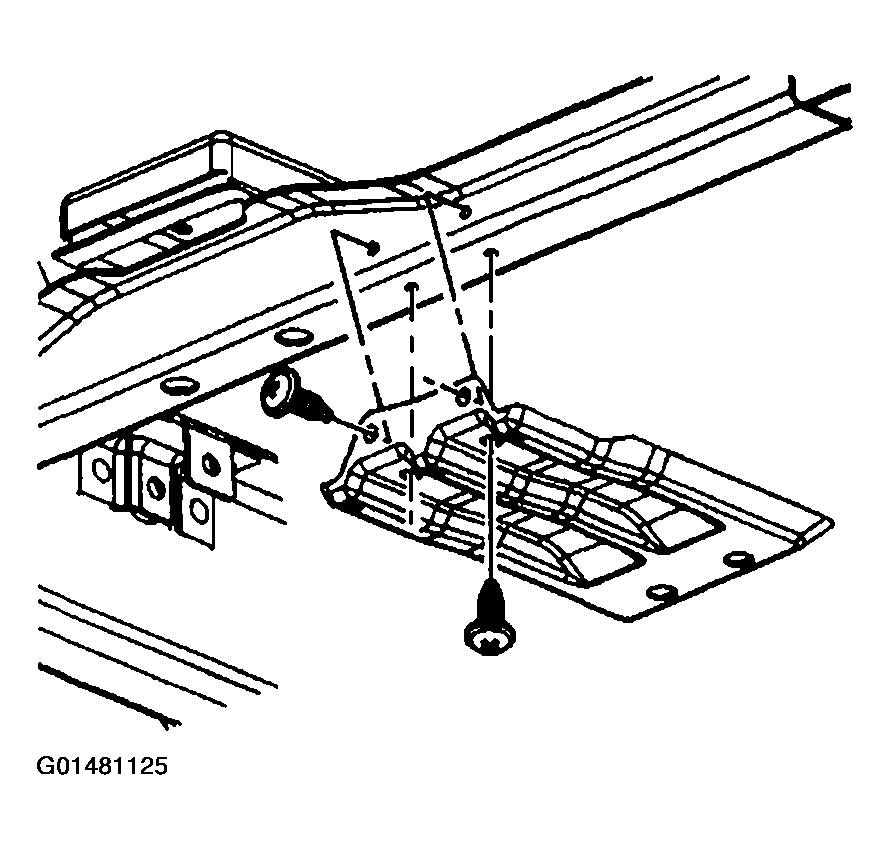

    Fig 2: Transfer Case Shield & Screws
    G01481125Courtesy of GENERAL MOTORS CORP.
