Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to Transfer Case Assembly Replacement .
  2. Support the transmission with a suitable jack stand.
  3. Remove the transmission mount nuts.
    Fig 1: Transmission Mount Nuts
    G01481166Courtesy of GENERAL MOTORS CORP.
  4. Remove the crossmember bolts.
  5. Remove the crossmember.

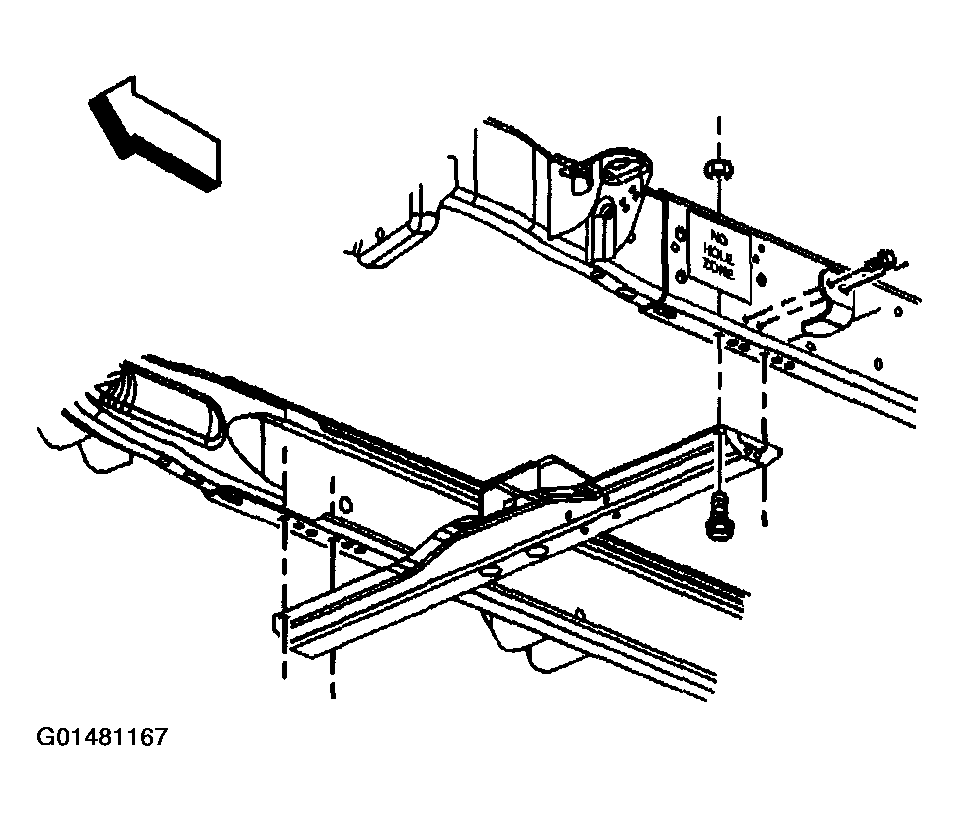

    Fig 2: Crossmember & Bolts
    G01481167Courtesy of GENERAL MOTORS CORP.
  6. Remove the transmission mount bolts.

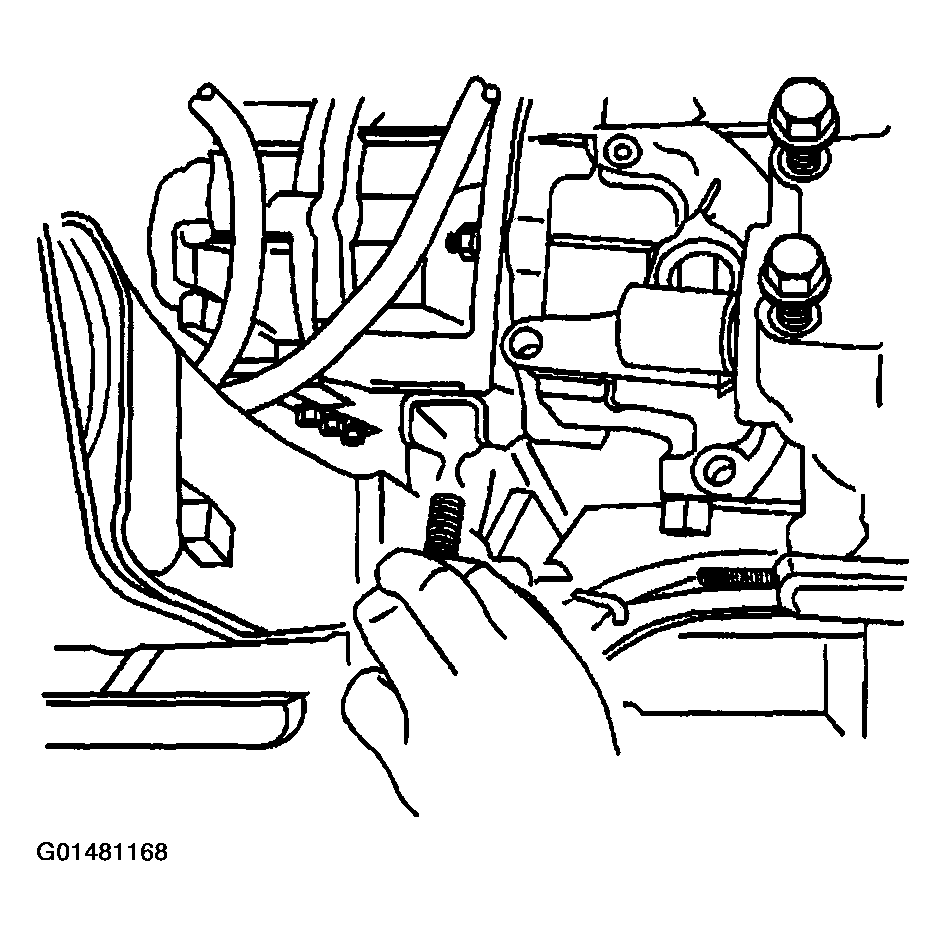

    Fig 3: Transmission Mount Bolts
    G01481168Courtesy of GENERAL MOTORS CORP.
  7. Remove the transmission mount.

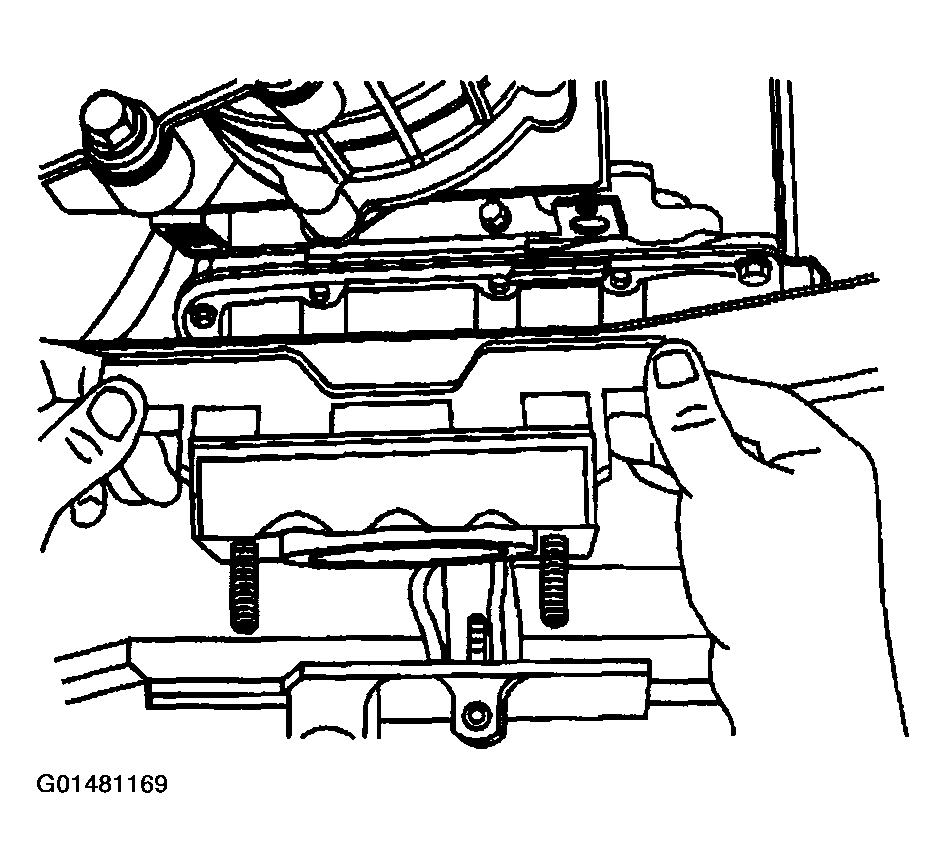

    Fig 4: Transmission Mount
    G01481169Courtesy of GENERAL MOTORS CORP.
  8. Remove the transfer case adapter bolts.
  9. Remove the transfer case adapter
  10. Remove the transfer case seal.

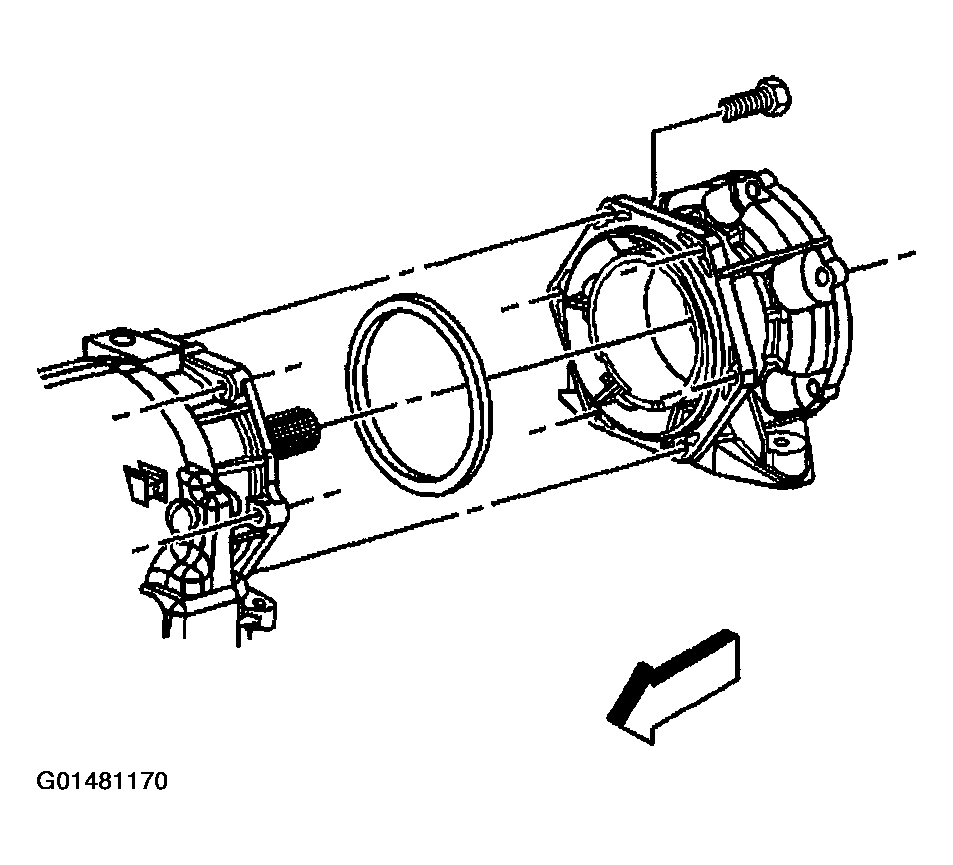

    Fig 5: Transfer Case Adapter, Bolts & Seal
    G01481170Courtesy of GENERAL MOTORS CORP.
  11. Remove the transfer case gasket, if necessary.

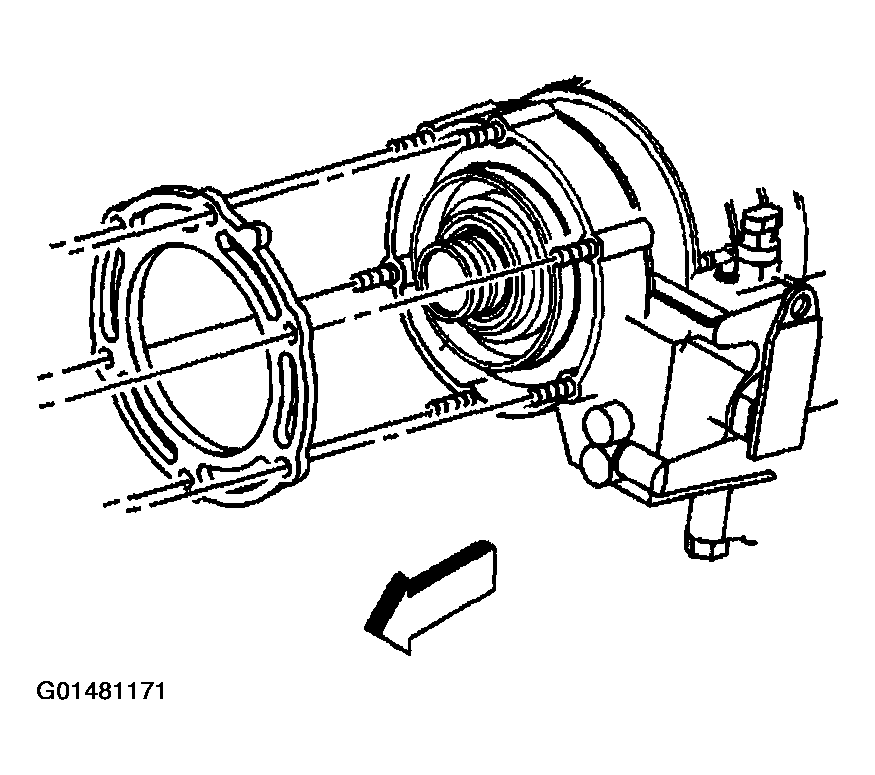

    Fig 6: Transfer Case Gasket
    G01481171Courtesy of GENERAL MOTORS CORP.
