Test Description

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. This step determines whether the failure is the result of a faulty transfer case shift control module or the IPC.

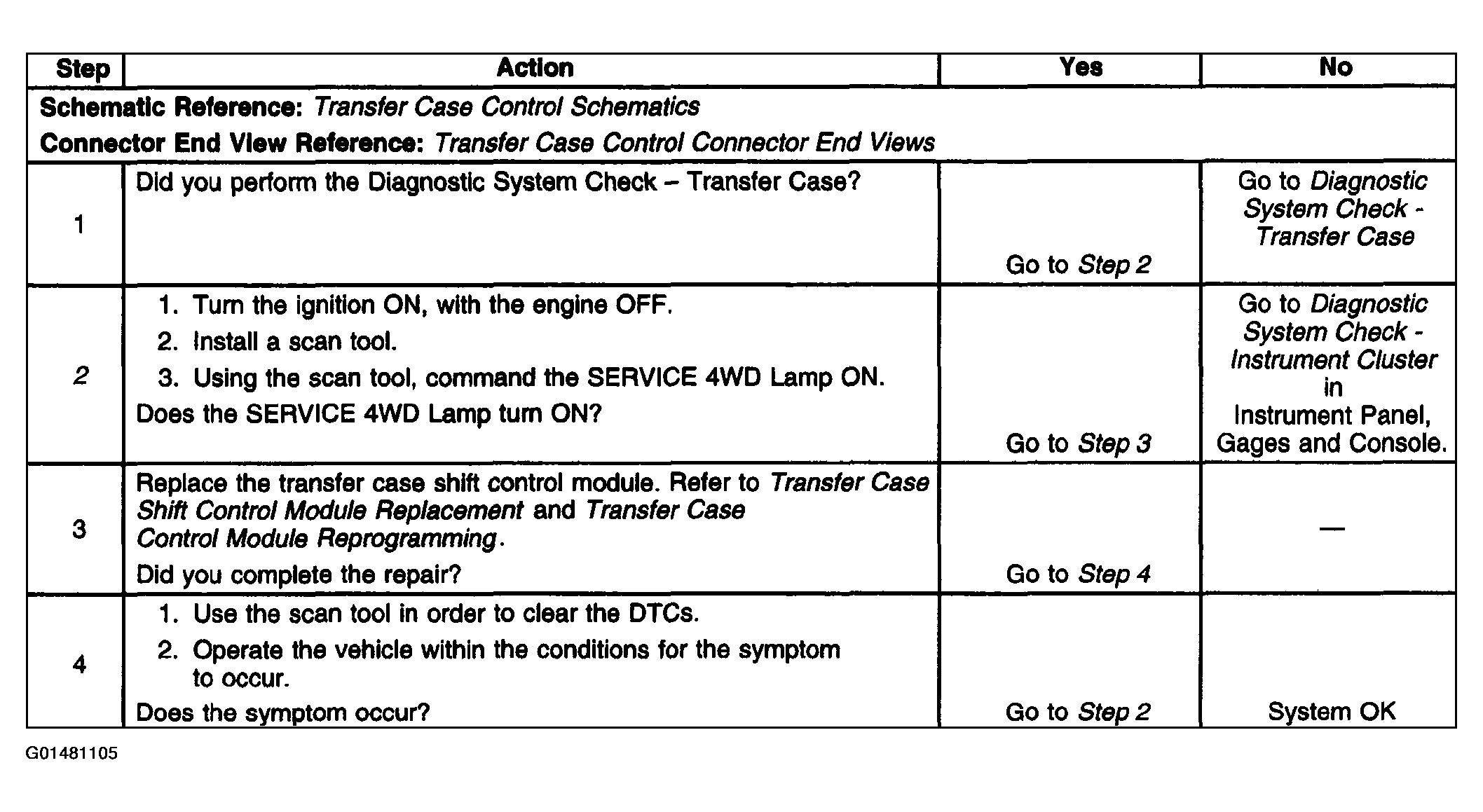

Fig 1: Service Indicator Inoperative
G01481105Courtesy of GENERAL MOTORS CORP.
