2WD Power Flow
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

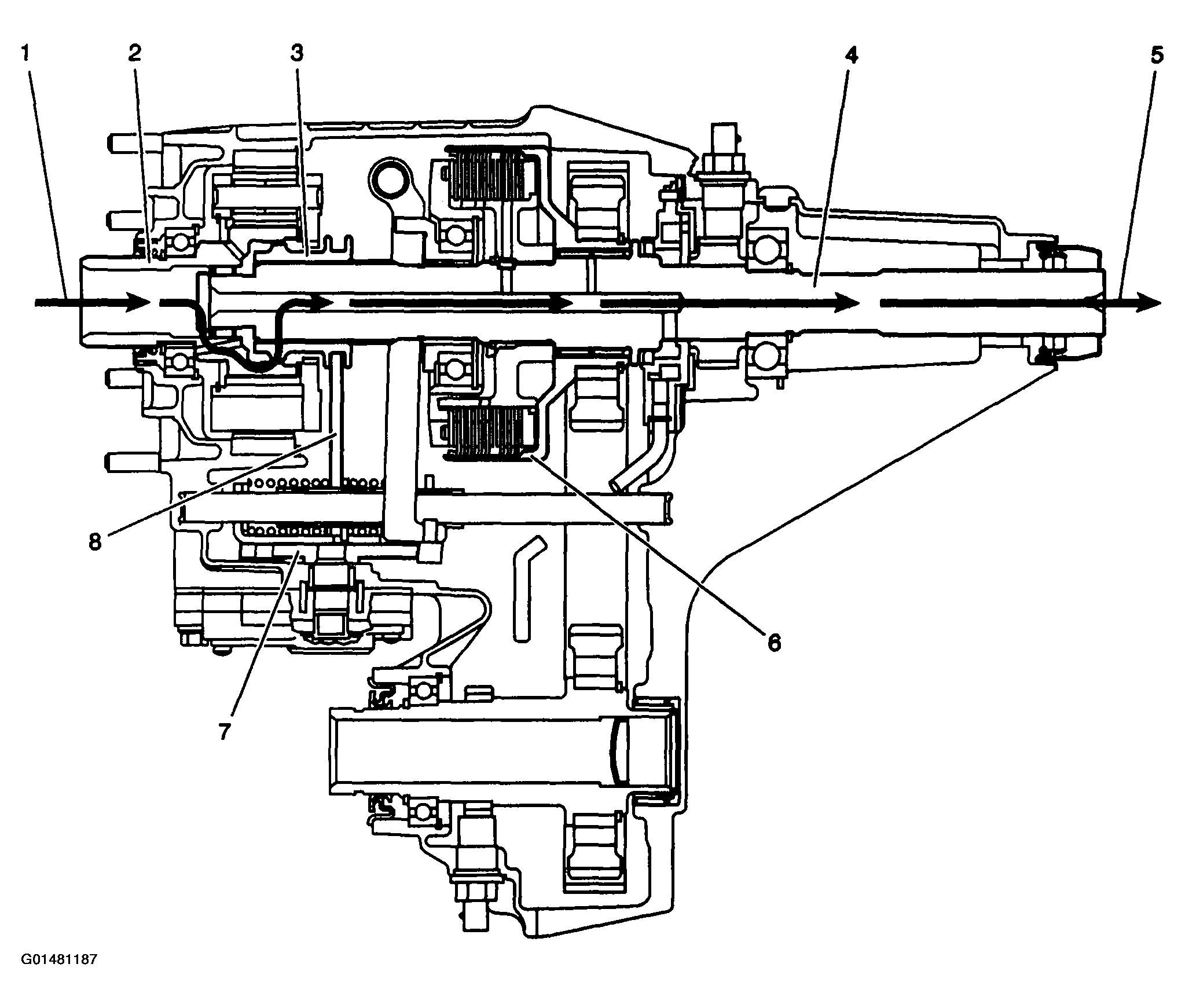

When the NVG 246 EAU is in the 2HI mode, the power flows from the transmission (1) to the input shaft gear (2). The input shaft gear (2) is connected to the rear output shaft (4) by the high/low range collar (3). The range collar (3) outer teeth are engaged with the input shaft gear (2) inner, high-speed position teeth. At the same time the range collar is slip splined to the rear output shaft (4). The rear output shaft (4) delivers the power flow to the rear propshaft (5). The position of the control actuator lever shaft (7) allows no clutch (6) engagement. The high/low range shift fork (8), is in the high-speed position on the control actuator lever shaft (7).
