Transfer Case Control Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

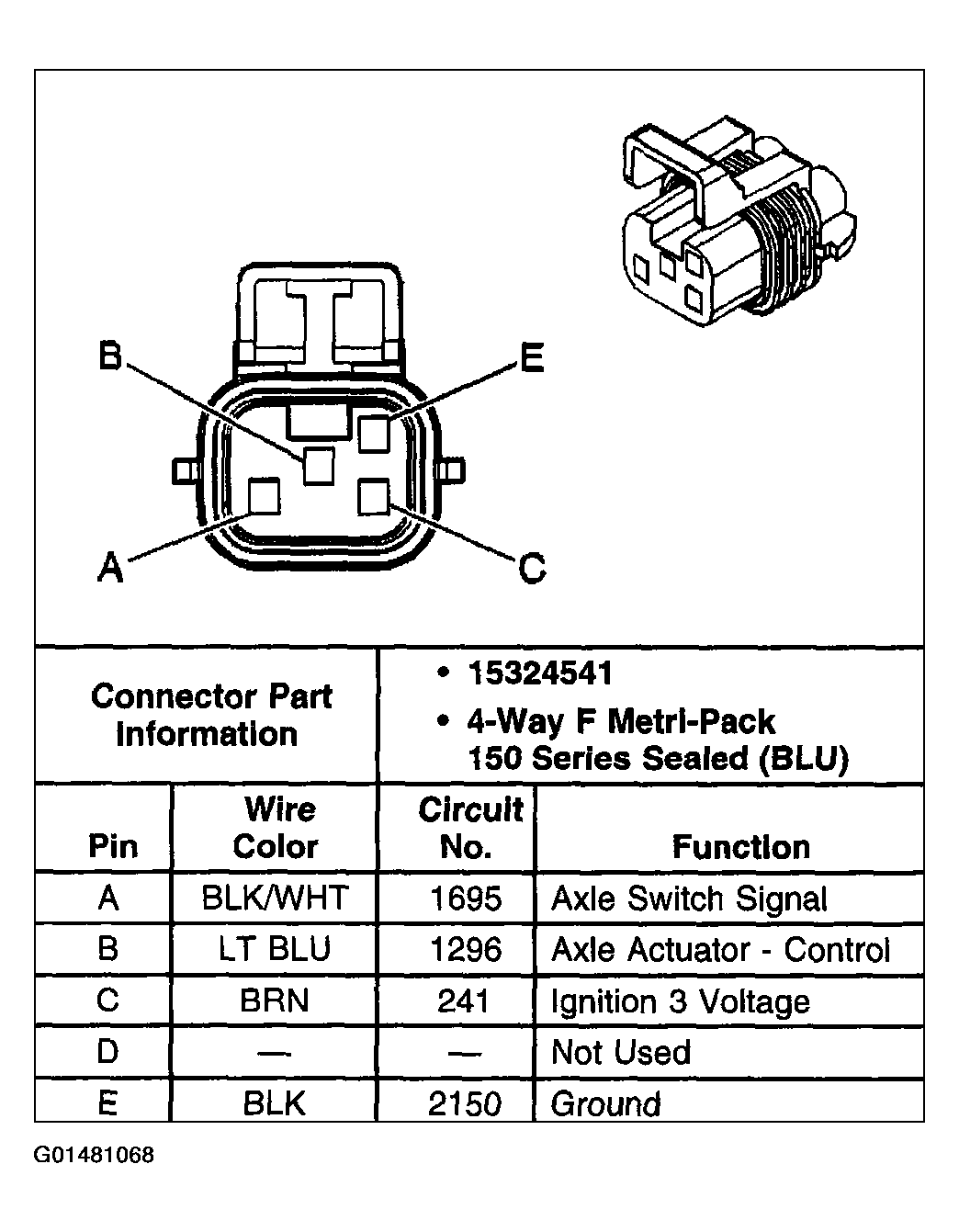

Fig 1: Front Axle Actuator

G01481068

Courtesy of GENERAL MOTORS CORP.

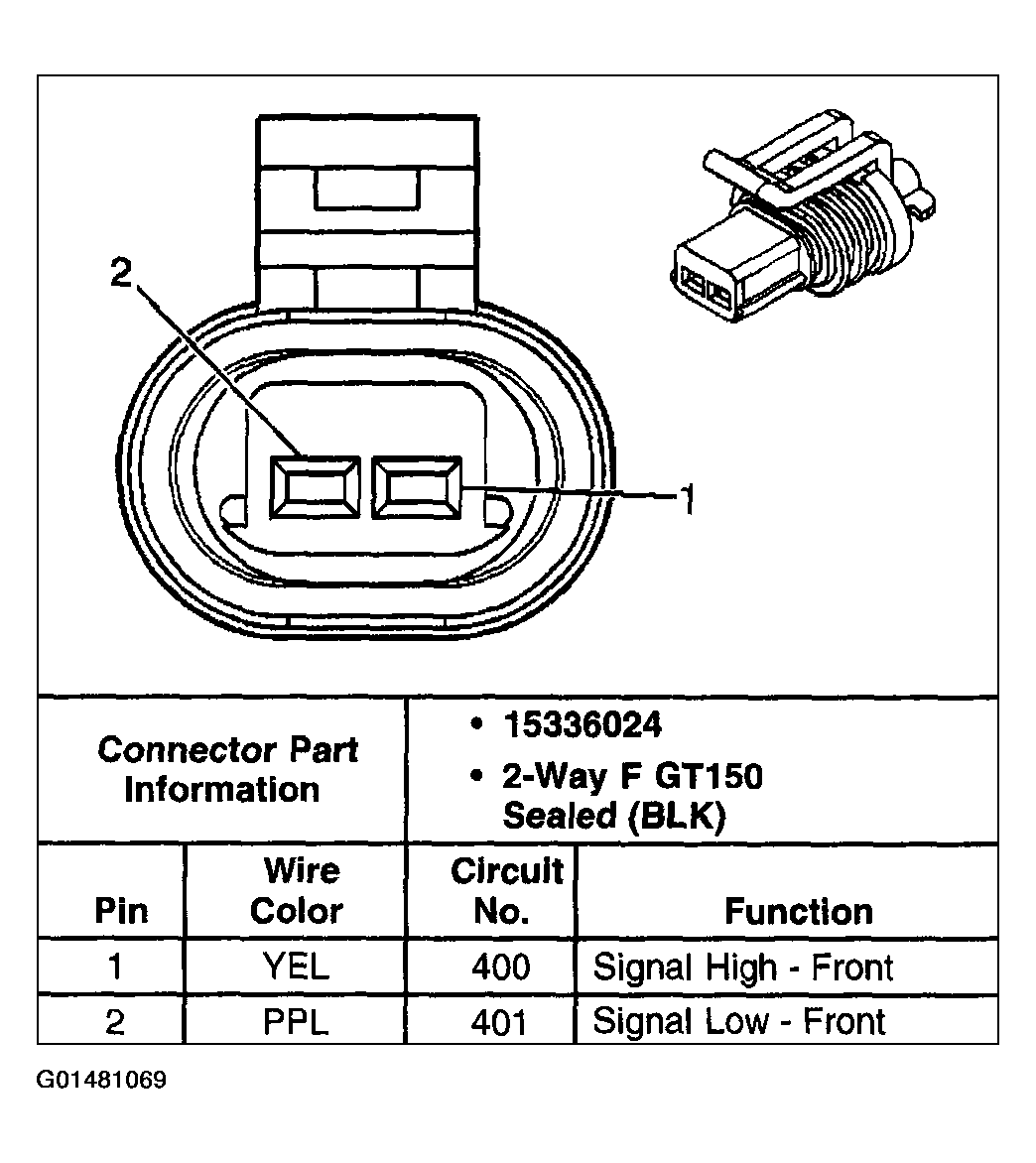

Fig 2: Propshaft Speed Sensor - Front

G01481069

Courtesy of GENERAL MOTORS CORP.

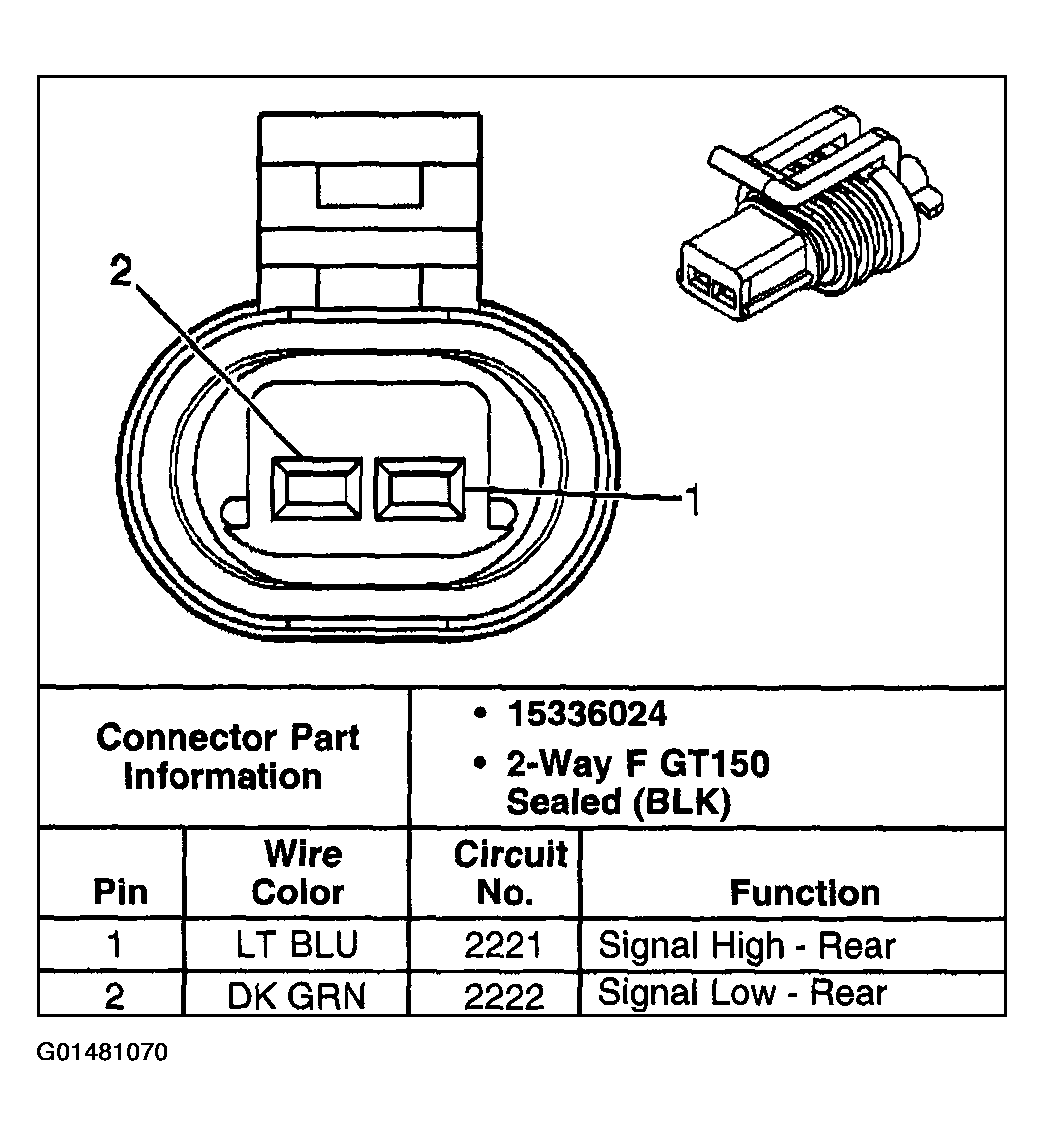

Fig 3: Propshaft Speed Sensor - Rear

G01481070

Courtesy of GENERAL MOTORS CORP.

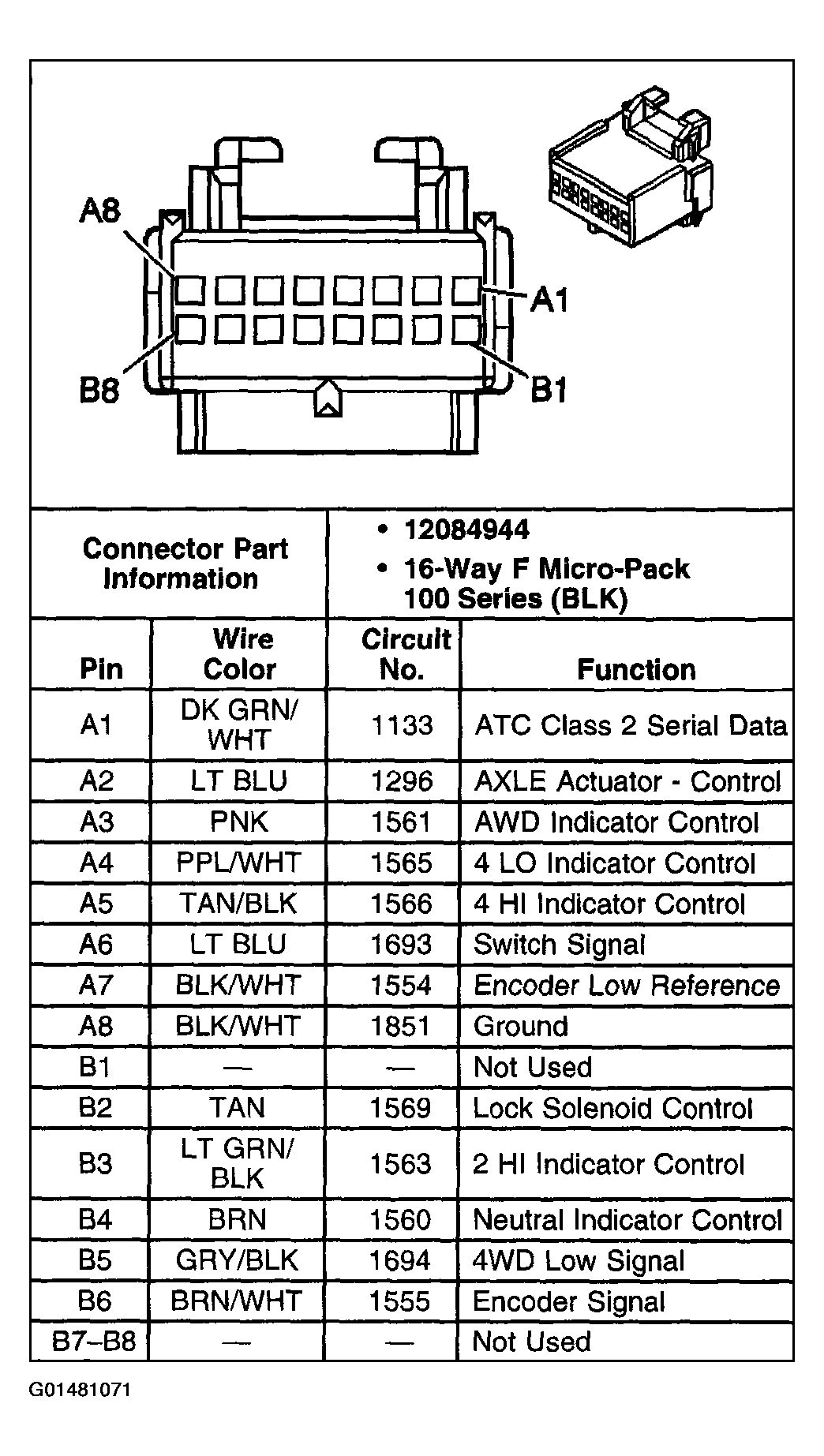

Fig 4: Transfer Case Shift Control Module - C1

G01481071

Courtesy of GENERAL MOTORS CORP.

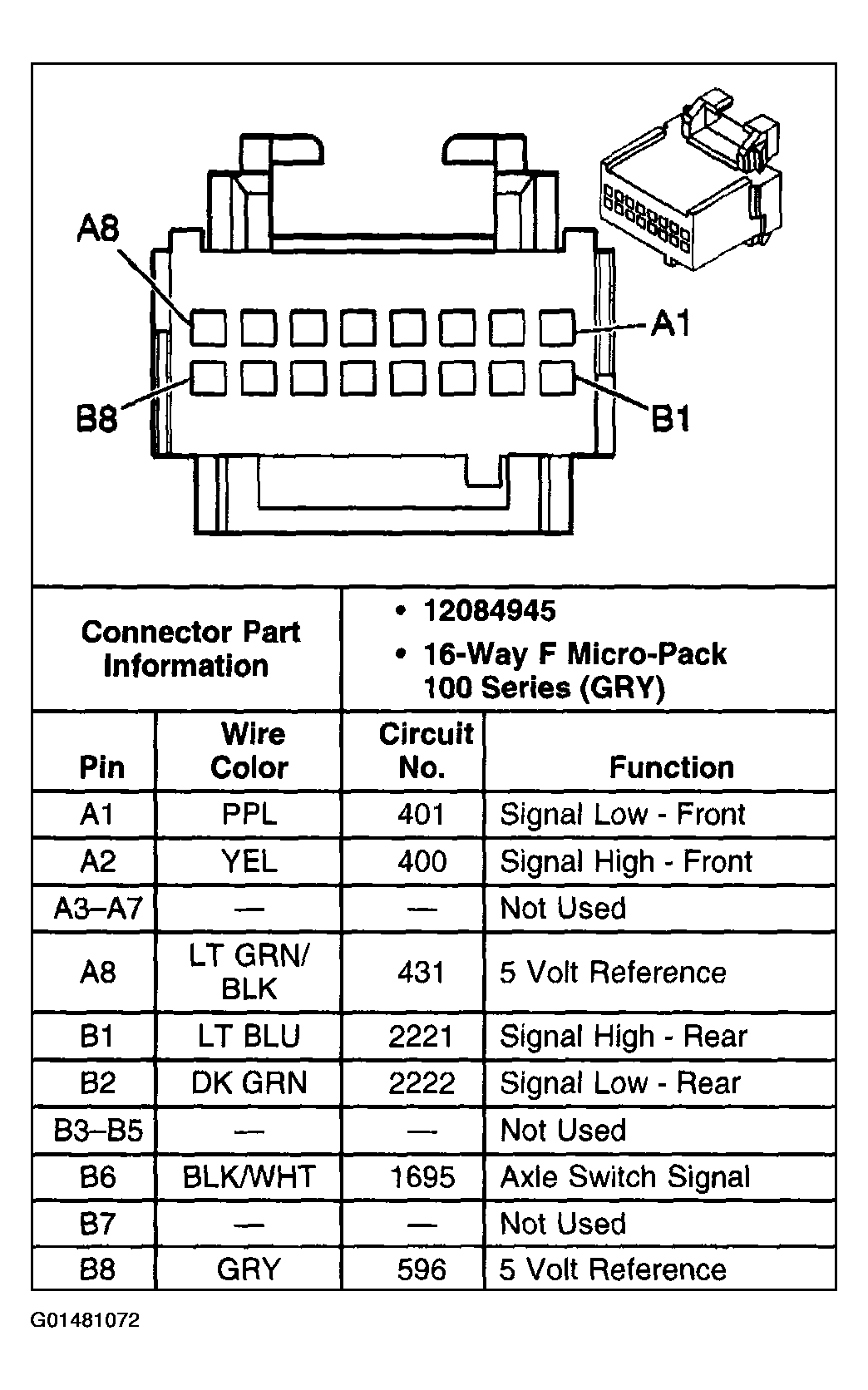

Fig 5: Transfer Case Shift Control Module - C2

G01481072

Courtesy of GENERAL MOTORS CORP.

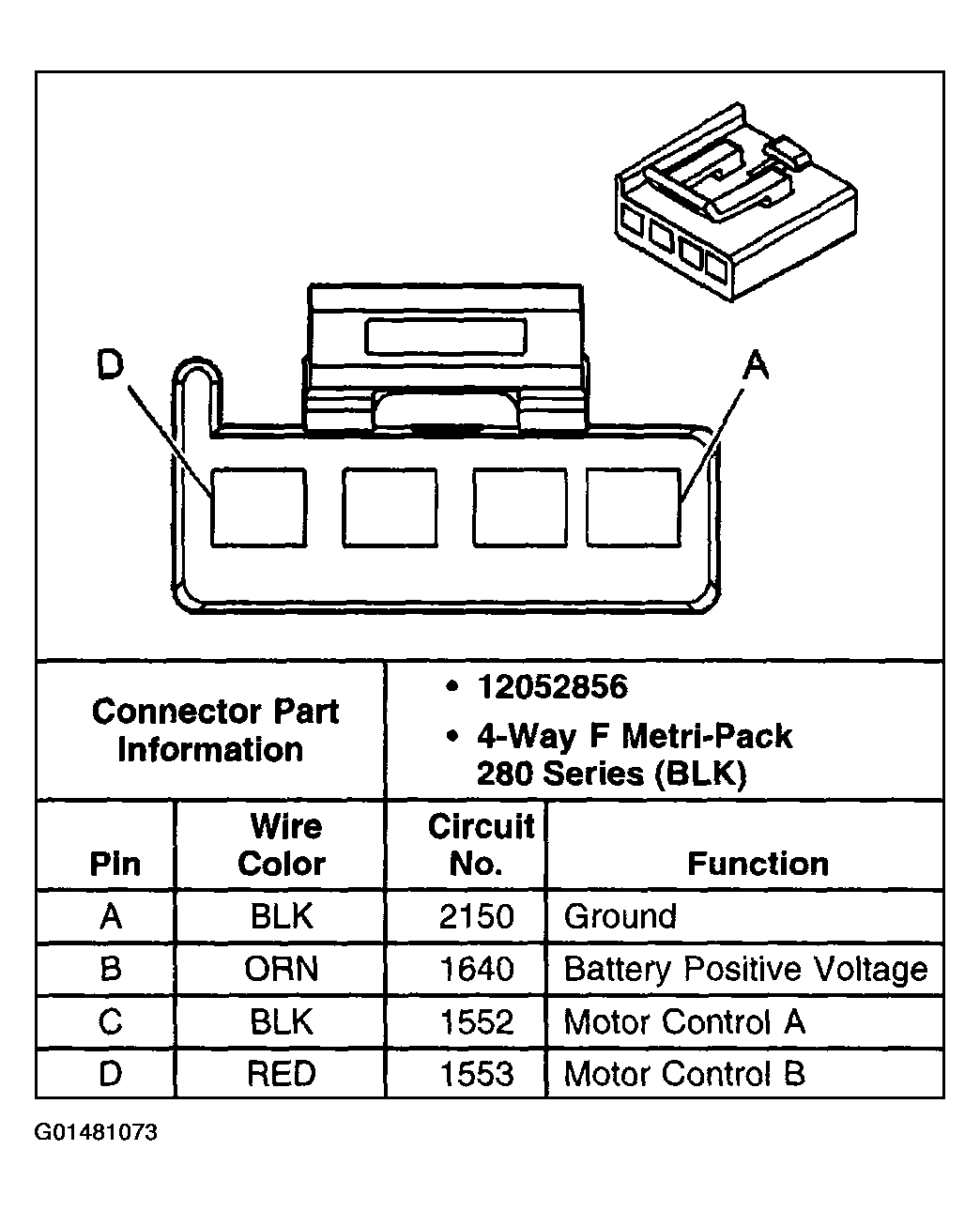

Fig 6: Transfer Case Shift Control Module - C3

G01481073

Courtesy of GENERAL MOTORS CORP.

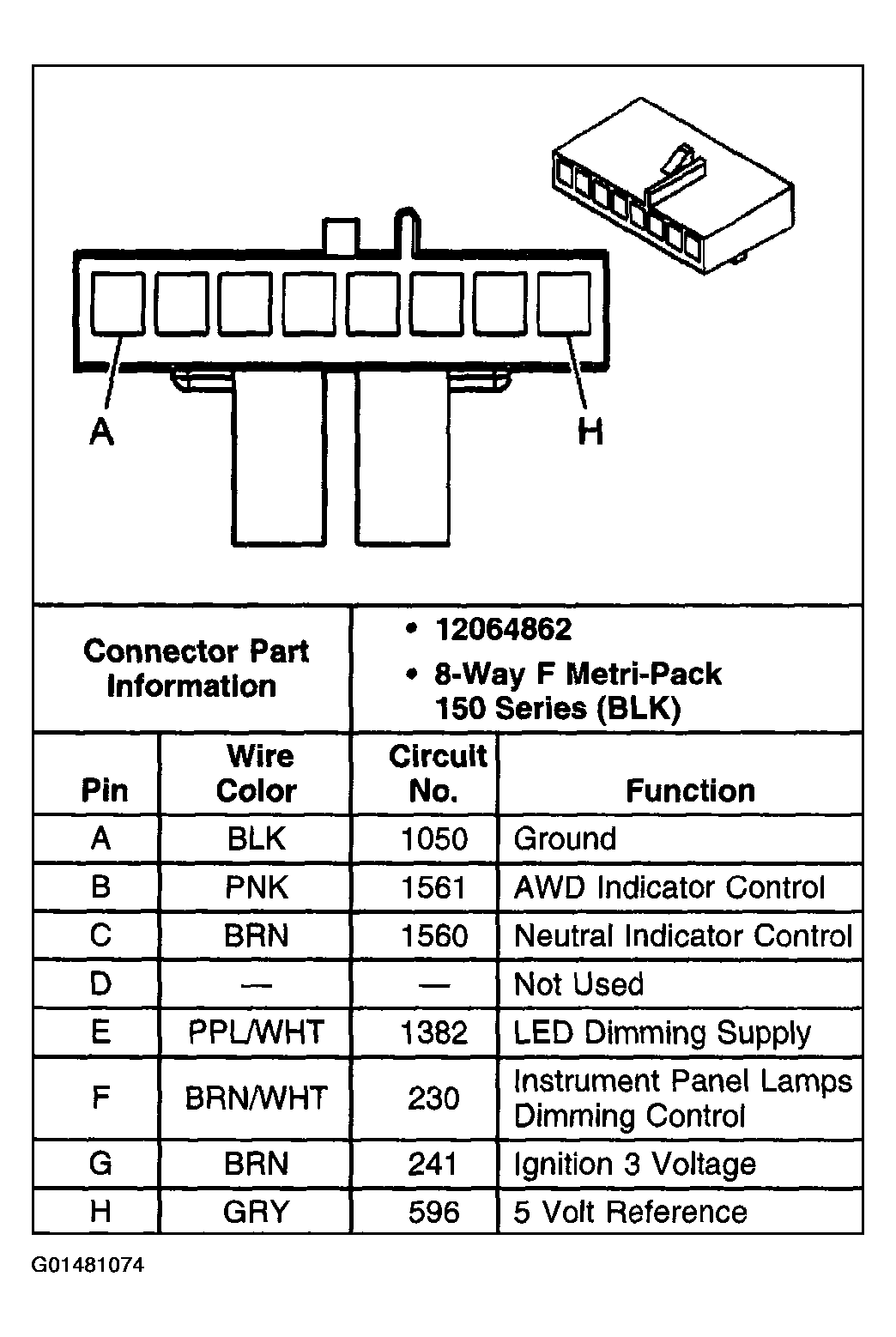

Fig 7: Transfer Case Shift Control Switch - C1

G01481074

Courtesy of GENERAL MOTORS CORP.

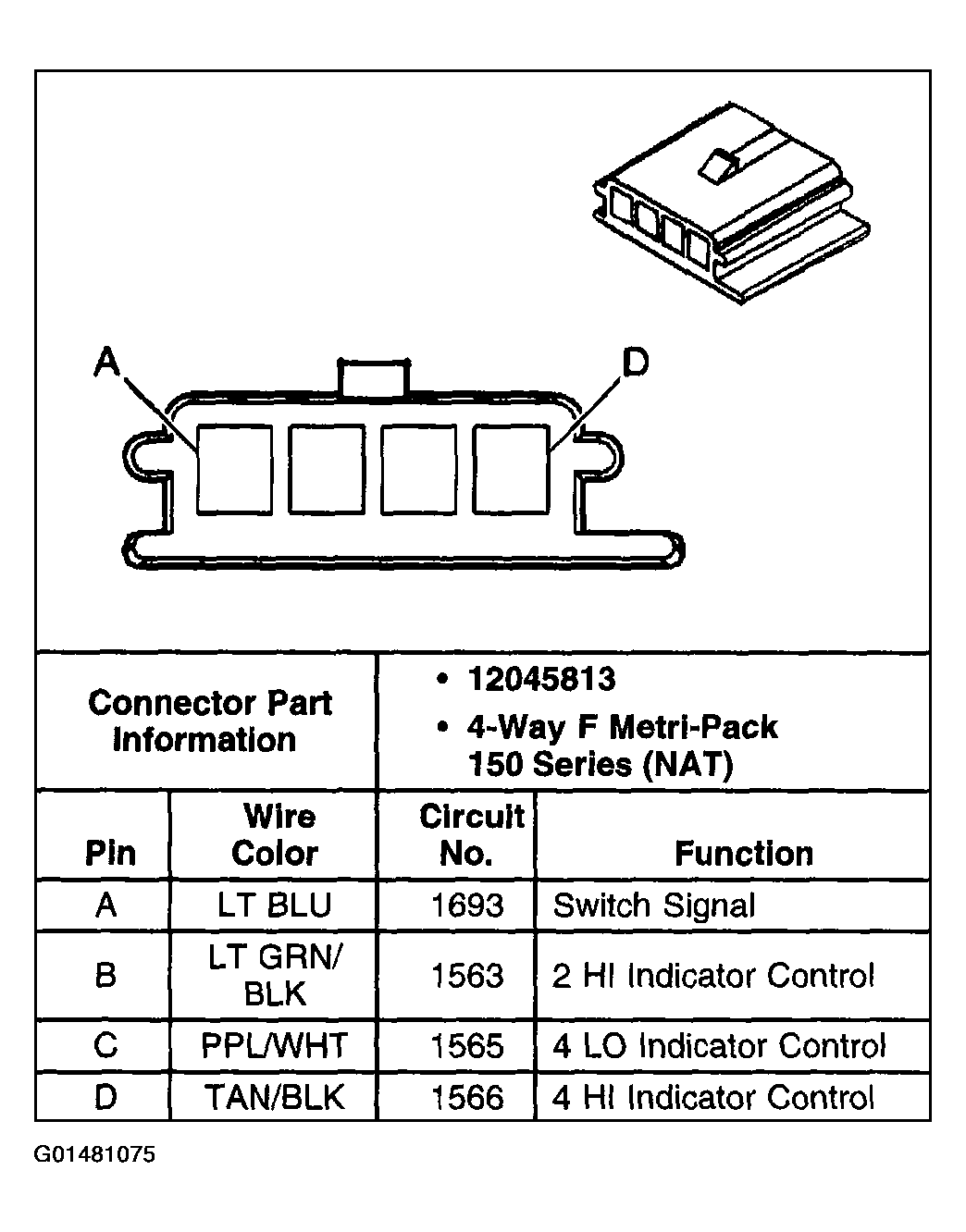

Fig 8: Transfer Case Shift Control Switch - C2

G01481075

Courtesy of GENERAL MOTORS CORP.

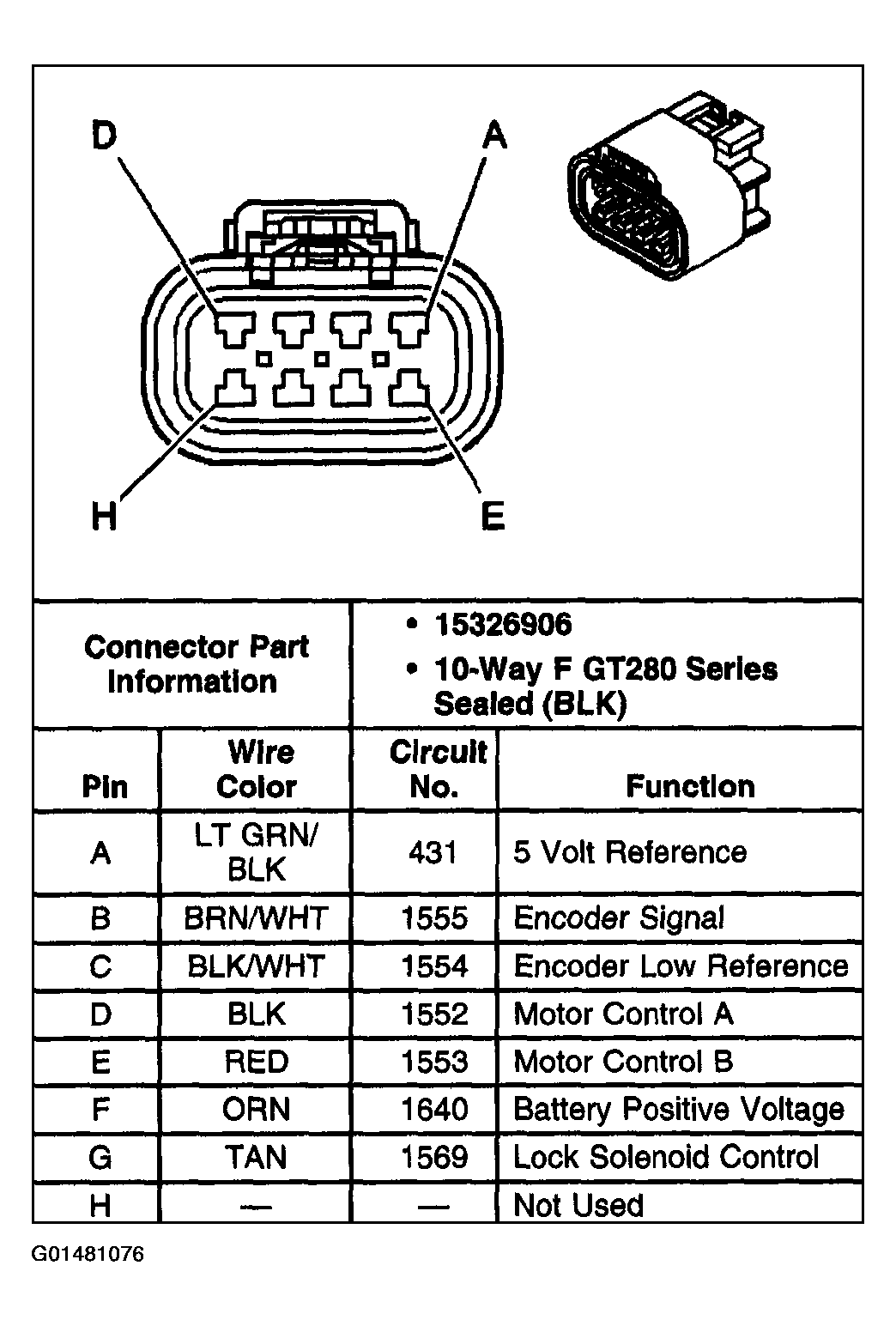

Fig 9: Transfer Case - Encoder Motor

G01481076

Courtesy of GENERAL MOTORS CORP.
