Transfer Case Control Component Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

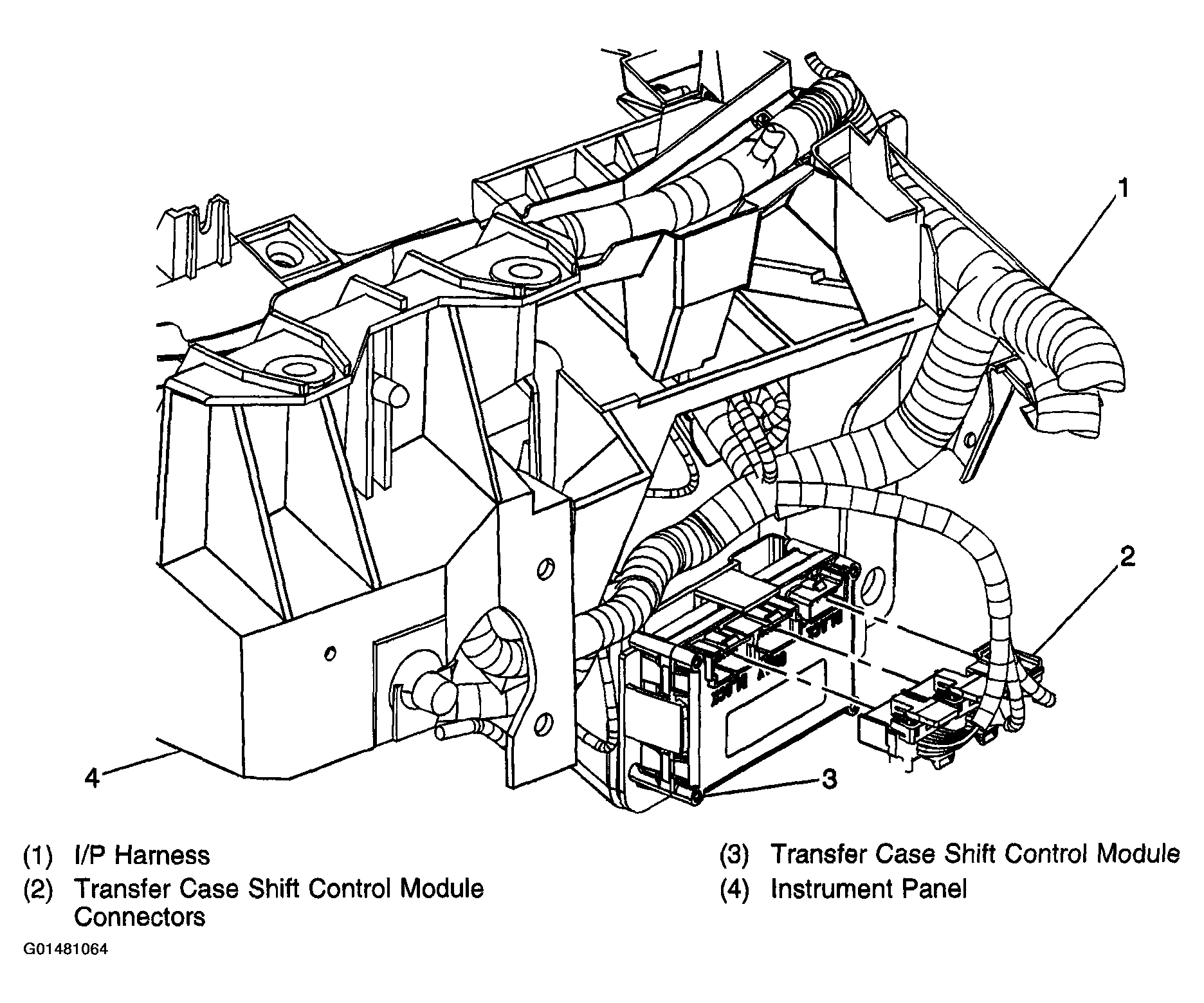

Fig 1: Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.

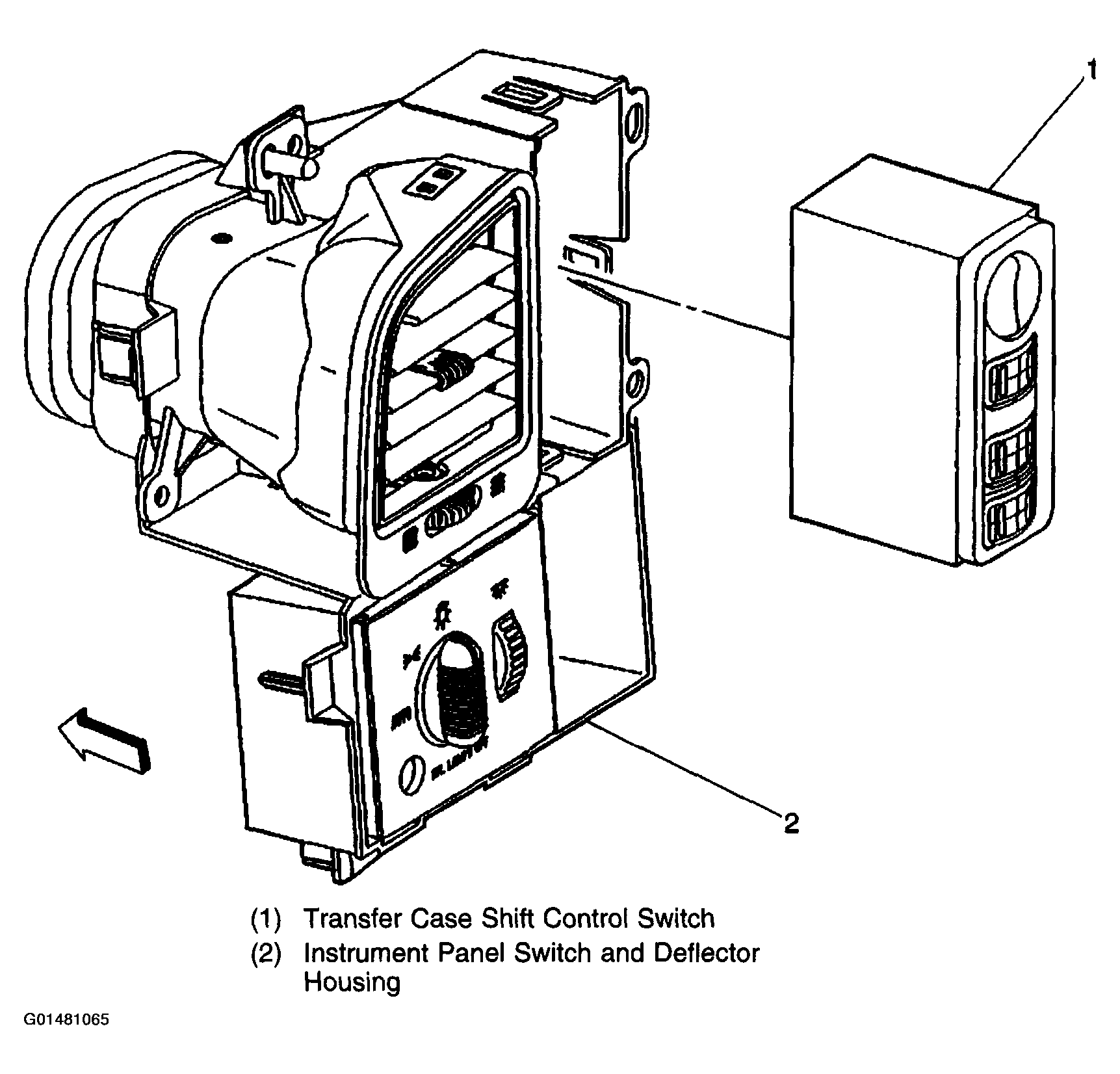

Fig 2: Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

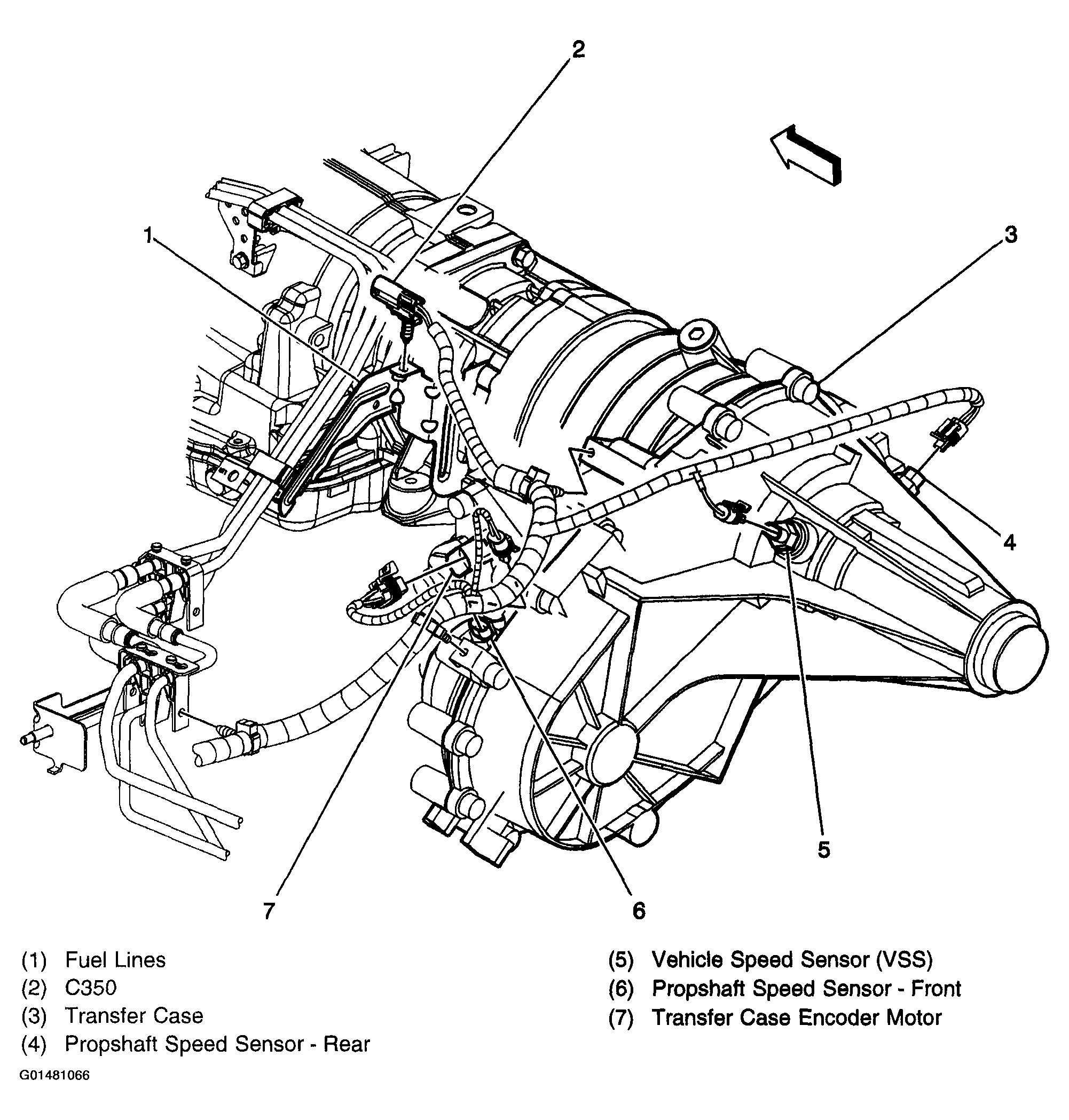

Fig 3: Transfer Case Harness Routing View

Courtesy of GENERAL MOTORS CORP.

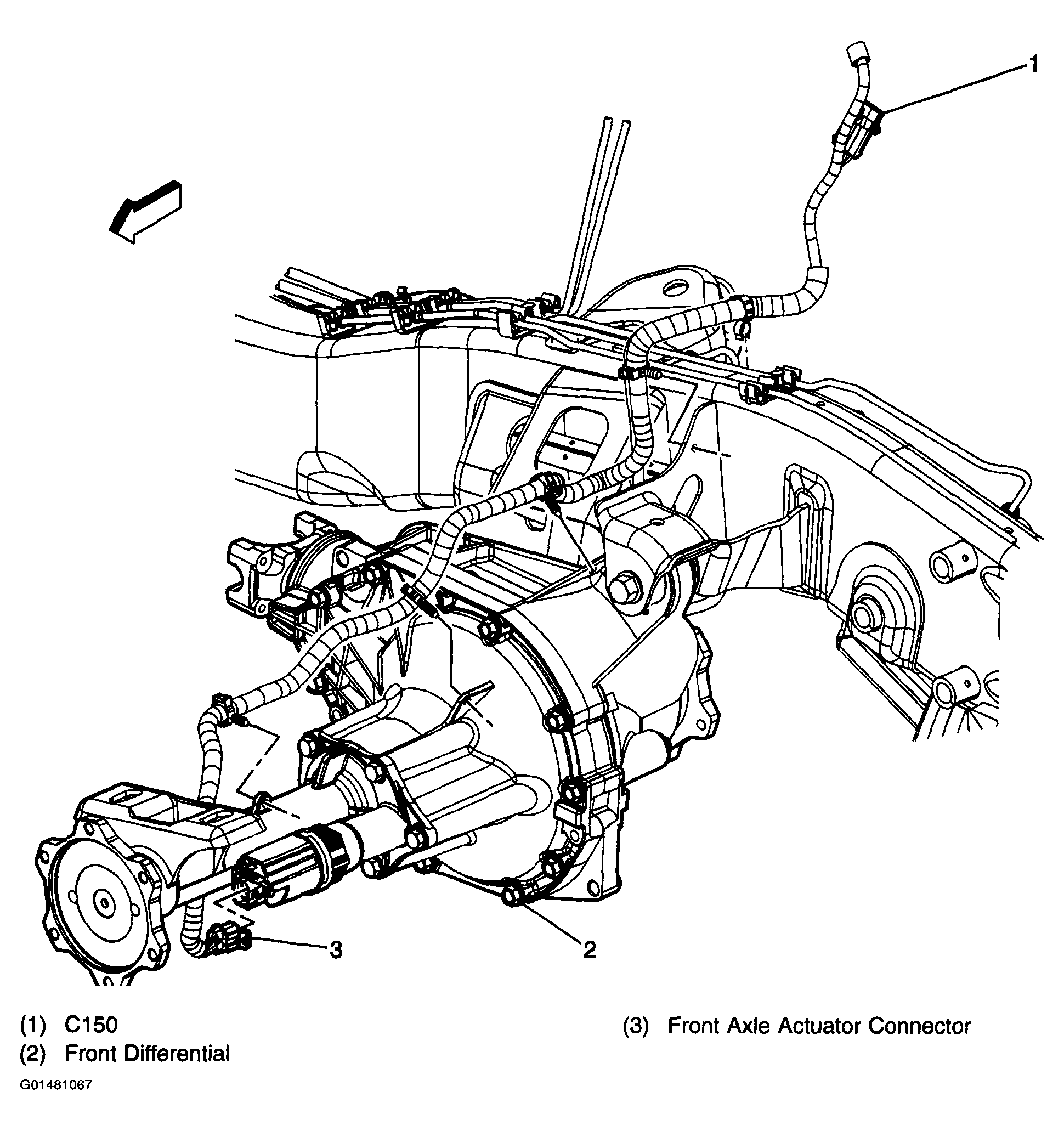

Fig 4: Front Drive Axle Harness Routing

Courtesy of GENERAL MOTORS CORP.
