Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .
  2. Disconnect the speed sensor electrical connector (4).

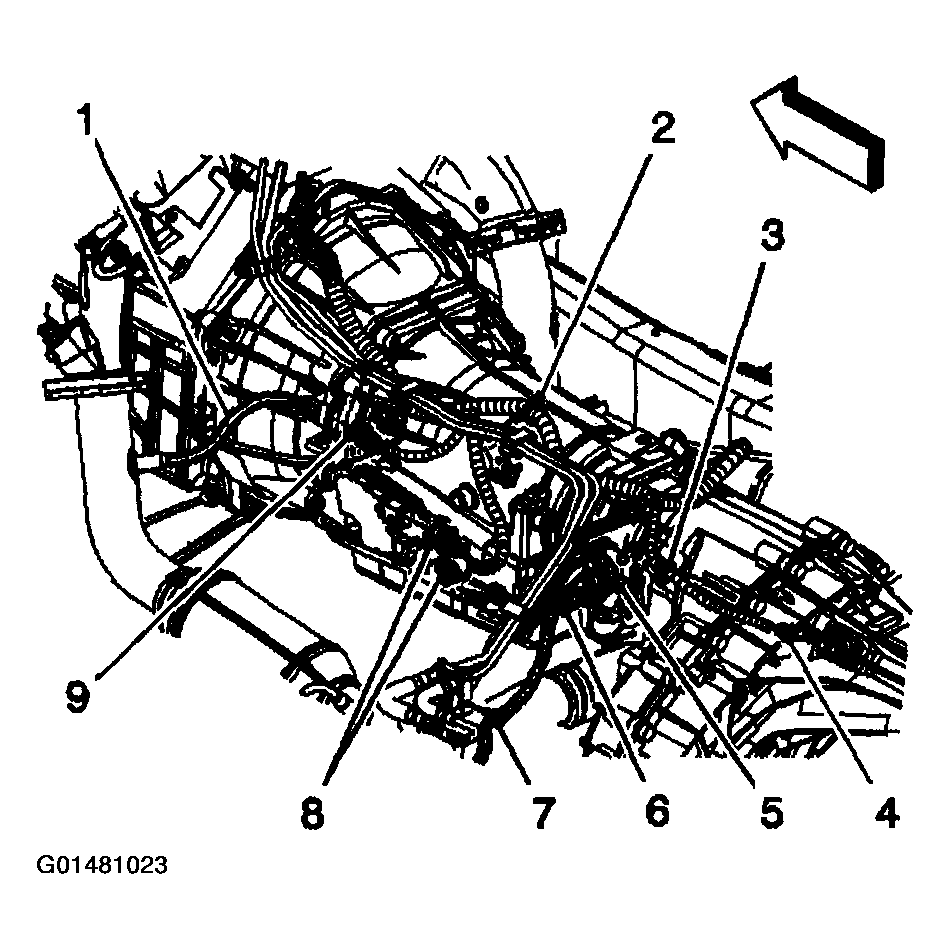

    Fig 1: Speed Sensor Electrical Connector
    G01481023Courtesy of GENERAL MOTORS CORP.
  3. Remove the speed sensor.

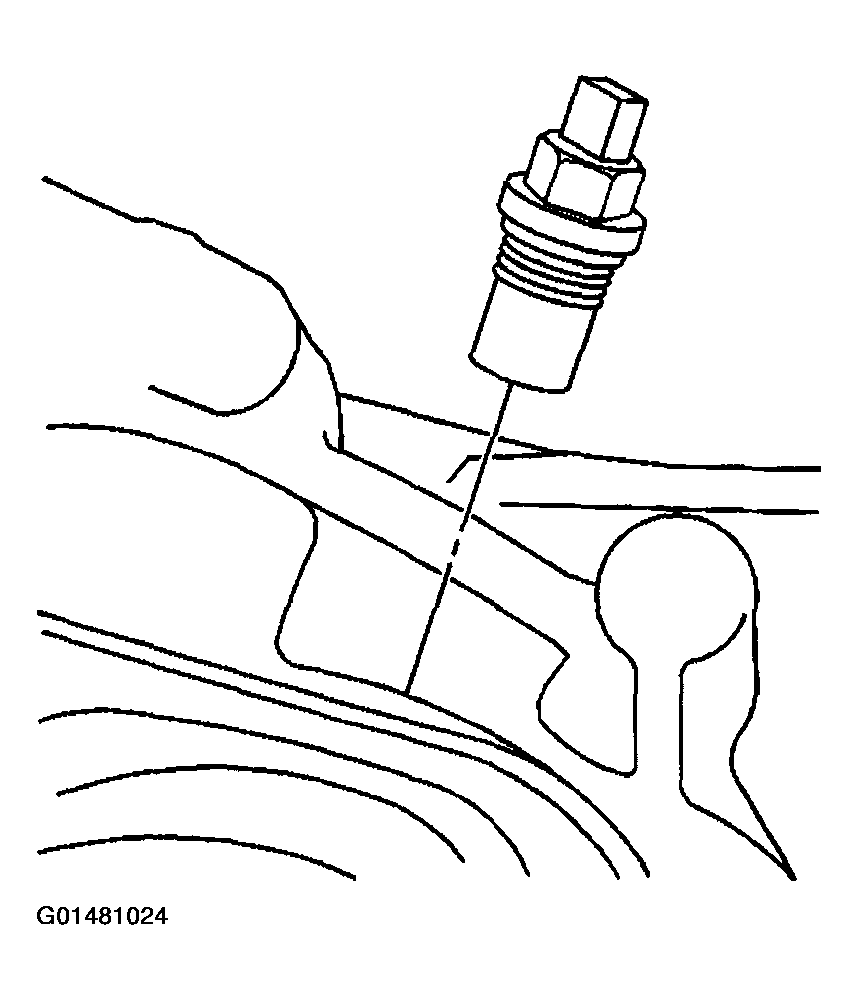

    Fig 2: Speed Sensor
    G01481024Courtesy of GENERAL MOTORS CORP.
