Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the speed sensor.

    Tighten

    Tighten the sensor to 15 N.m (11 lb ft).

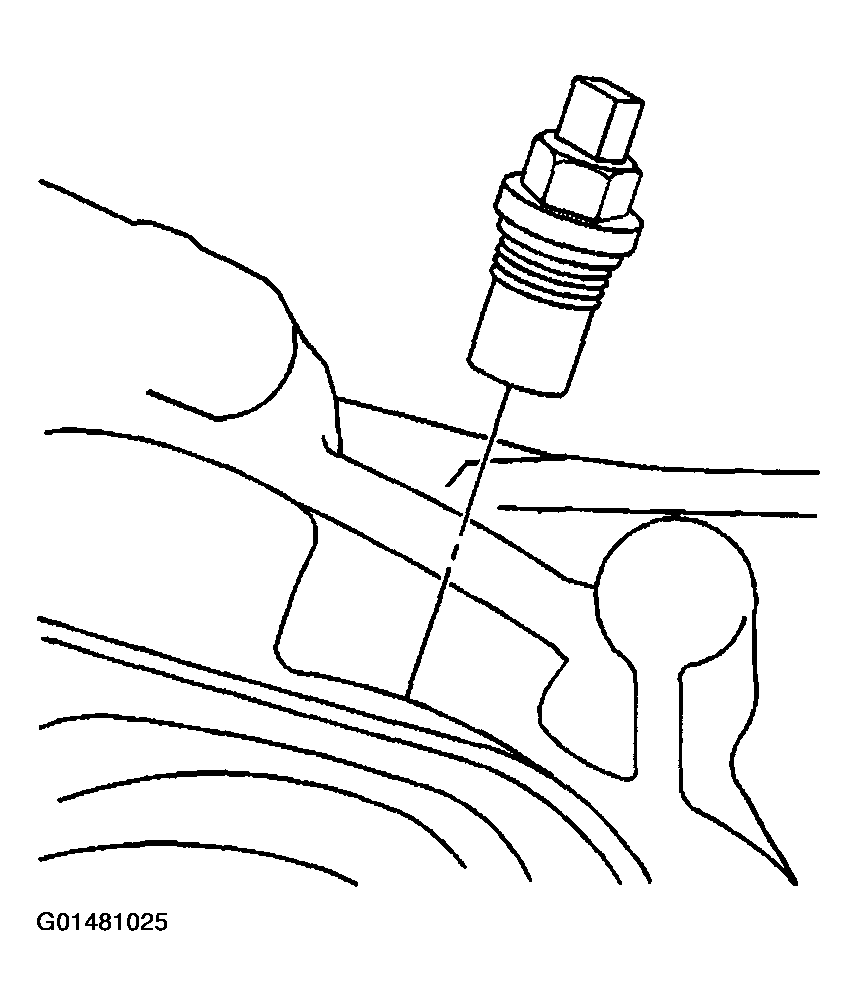

    Fig 1: Speed Sensor
    G01481025Courtesy of GENERAL MOTORS CORP.
  2. Connect the speed sensor electrical connector (4).
  3. Lower the vehicle.

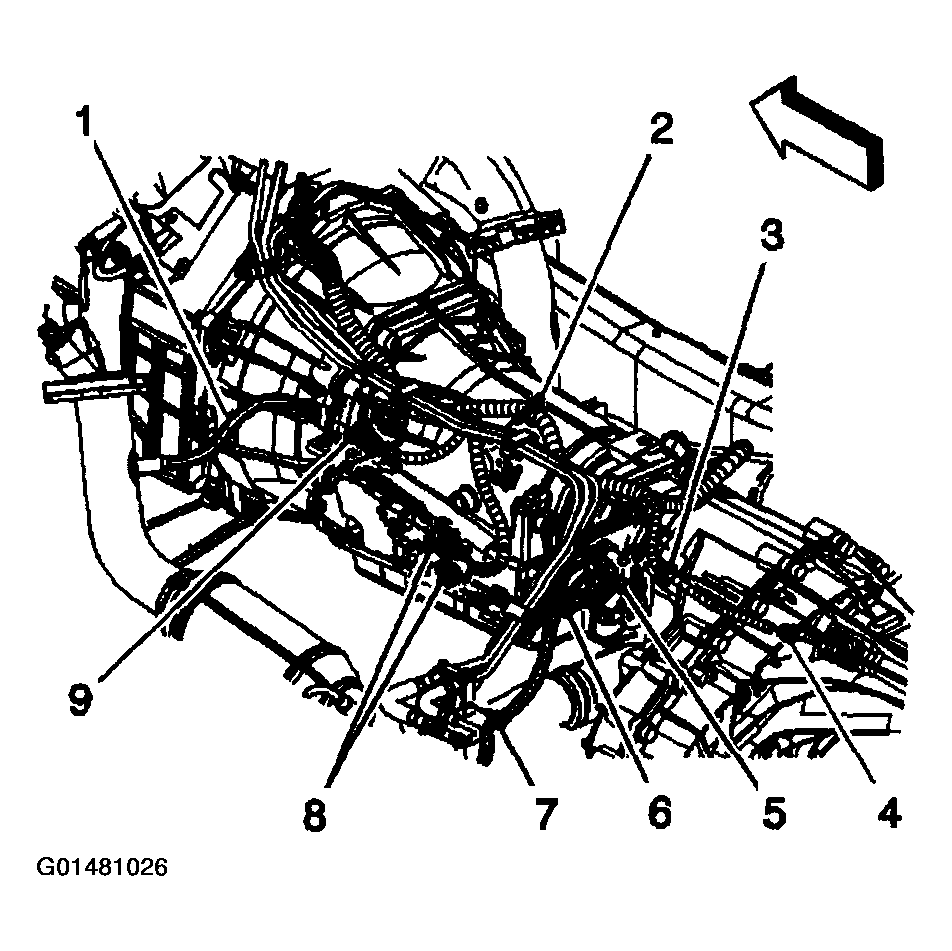

    Fig 2: Speed Sensor Electrical Connector
    G01481026Courtesy of GENERAL MOTORS CORP.
